B. Selection of an Insulation Sleeve
Table 3
INSULATION SLEEVES
Aluminum Wire
Size
(AWG)
Material Part Number Supplier Special Instructions
2 AL Cold Shrinkable Sleeve 8445-2.5 3M
3 layers of tape are
necessary before the
cold shrinkable sleeve is
installed
1/0 AL
Heat Shrinkable Sleeve
DWP-125 Raychem -
MWSF Remtek -
Cold Shrinkable Sleeve 8447-3.2 3M -
2/0 AL Cold Shrinkable Sleeve 8447-3.2 3M -
4/0 AL Cold Shrinkable Sleeve 8447-3.2 3M -
(1) Make a selection of one of these types of insulation sleeves from Table 3.
• A heat shrinkable sleeve
• A cold shrinkable sleeve.
NOTE: A heat gun is necessary to install a heat shrinkable sleeve.
(2) If the selection is a heat shrinkable sleeve:

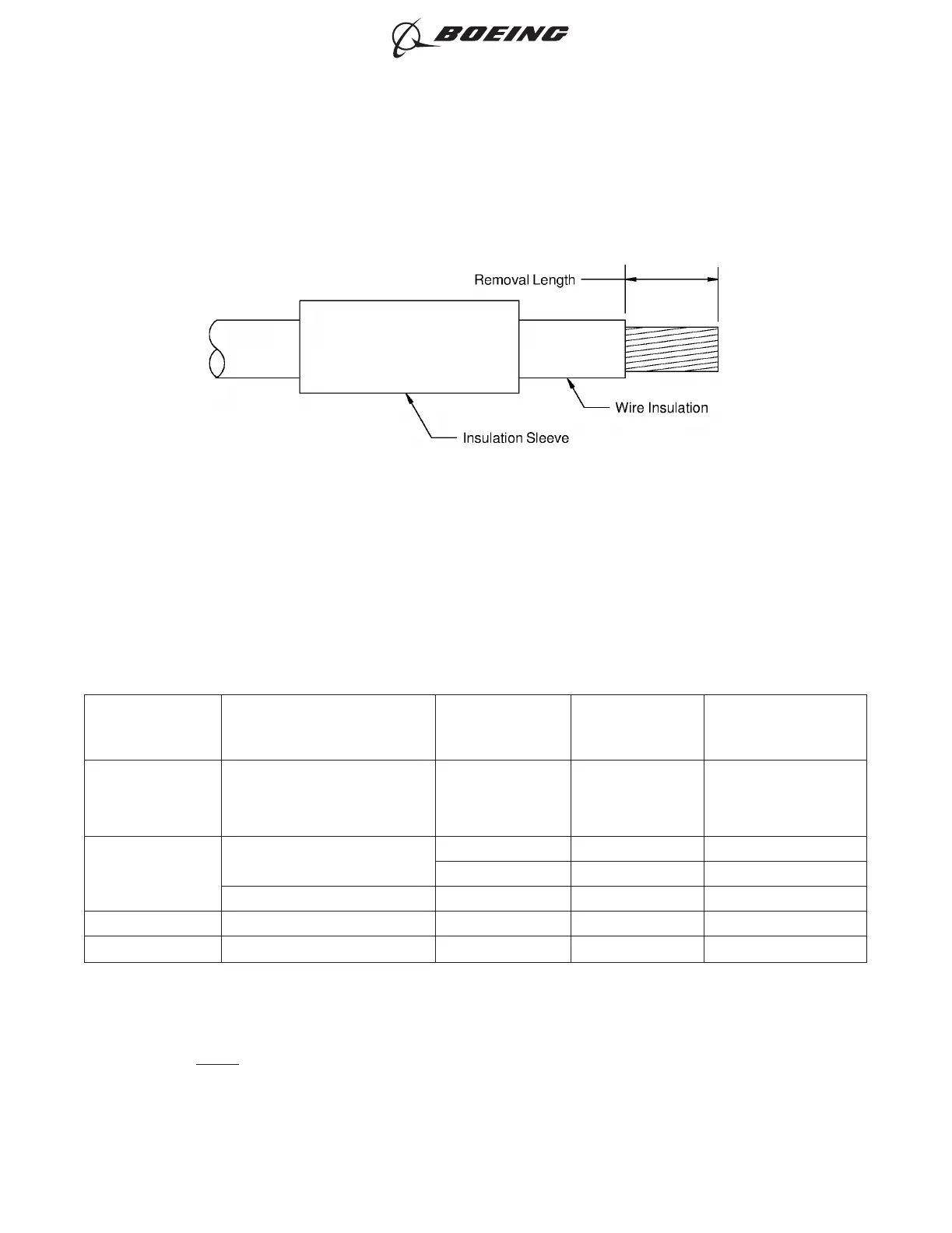

WIRE PREPARATION
Figure 7
ASSEMBLY OF BACT12BC, BACT12BD, BACT12BE, BACT12BF AND BACT12BG ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-07
Page 6
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
