(a) Remove 1.1 inch minimum length of outer jacket from the end of the wire.
(b) Remove the necessary length of the shield from the end of the wire.
Make sure the remaining shield is 0.31 inch ±0.06 inch.
(7) Cut the necessary length of the shield sleeve material.
Make sure that the end of the shield sleeve material extends farther than the rear end of the inner
ferrule on each end of the shield splice.
(8) Put these components on the side of the splice assembly with one shielded wire:
• The outer ferrule
• The inner ferrule.
(9) Put these components on the side of the splice assembly with two shielded wires:
• The outer ferrule
• The inner ferrule
• The shield sleeve material.
NOTE: If it is necessary, the strands at the end of the shield sleeve material can be moved apart
to make it easier to put the shield sleeve material on the wires.
(10) Make a selection of an applicable Temperature Grade D conductor splice configuration for one
wire to two wires. Refer to Paragraph 9.A.
(11) Assemble the conductor splice. Refer to the applicable procedure given in Paragraph 9.A.
(12) Assemble the sealed splice of the wires. Refer to Paragraph 8.D.
(13) Assemble the end of the shield splice with two shielded wires.
(a) Move the outer ferrule on the shield sleeve material.
(b) Move the strands of the shield apart and make them straight.
(c) Move the strands of each shield away from the adjacent wire. Refer to Figure 174.

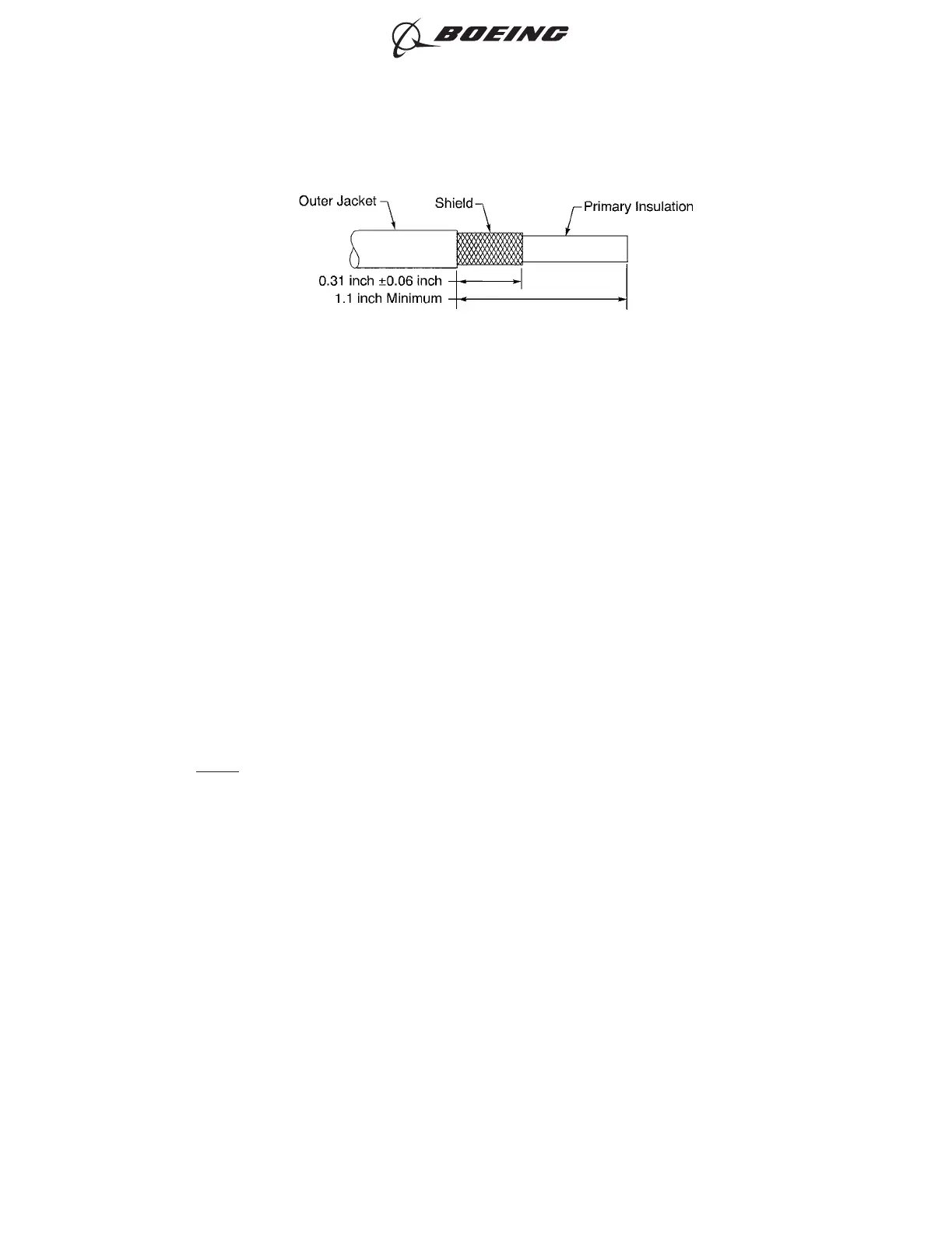

SHIELDED WIRE PREPARATION
Figure 173
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 210
Jun 15/2021D6-54446
