(d) Align the forward end of the inner ferrule with the end of the outer jackets.
(e) Fold the strands of the shield back on the inner ferrule to make the strands of the shield
symmetrical around the circumference of the ferrule.
(f) Align the end of the shield sleeve material with the end of the strands of the shields that are
folded back.
(g) Align the rear end of the outer ferrule with the rear end of the inner ferrule.
Make sure that:
• The outer ferrule goes around the shield sleeve material
• The rear end of the outer ferrule does not extend farther than the rear end of the inner
ferrule
• The rear end of the outer ferrule is a maximum of 0.06 inch from the rear end of the
inner ferrule.
(h) Crimp the ferrules.
(14) Assemble the end of the shield splice with one shielded wire.
(a) Move the outer ferrule on the shield sleeve material.
(b) Move the strands of the shield apart and make them straight.
(c) Align the forward end of the inner ferrule with the end of the outer jackets.
(d) Fold the strands of the shield back on the inner ferrule to make the strands of the shield
symmetrical around the circumference of the ferrule.
(e) Align the end of the shield sleeve material with the end of the strands of the shields that are
folded back.
Make sure that the shield sleeve material is pulled tight before the ferrules are crimped.
(f) Align the rear end of the outer ferrule with the rear end of the inner ferrule.
Make sure that:
• The outer ferrule goes around the shield sleeve material
• The rear end of the outer ferrule does not extend farther than the rear end of the inner
ferrule

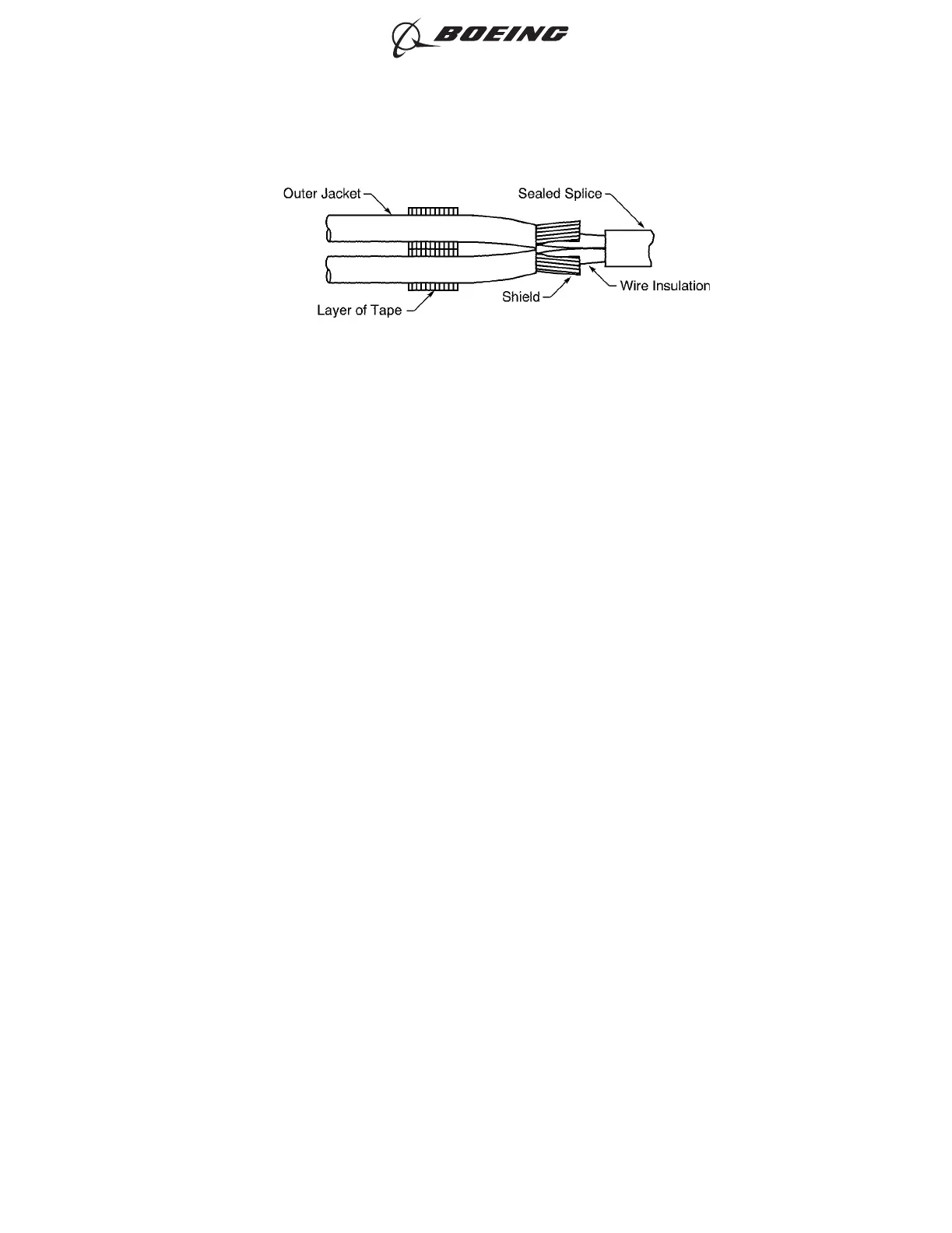

POSITION OF THE SHIELDS
Figure 174
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 211
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
