(20) Tightly wind a second layer of Temperature Grade D Type II silicone tape on the splice assembly.
Refer to Figure 220.
Make sure that the layer of tape:
• Starts 1 inch minimum farther than where the first layer of tape stops
• Stops 1 inch minimum farther than where the first layer of tape starts
• The tape makes approximately a 50 percent overlap with itself
• The tape makes approximately a 100 percent overlap at the ends.

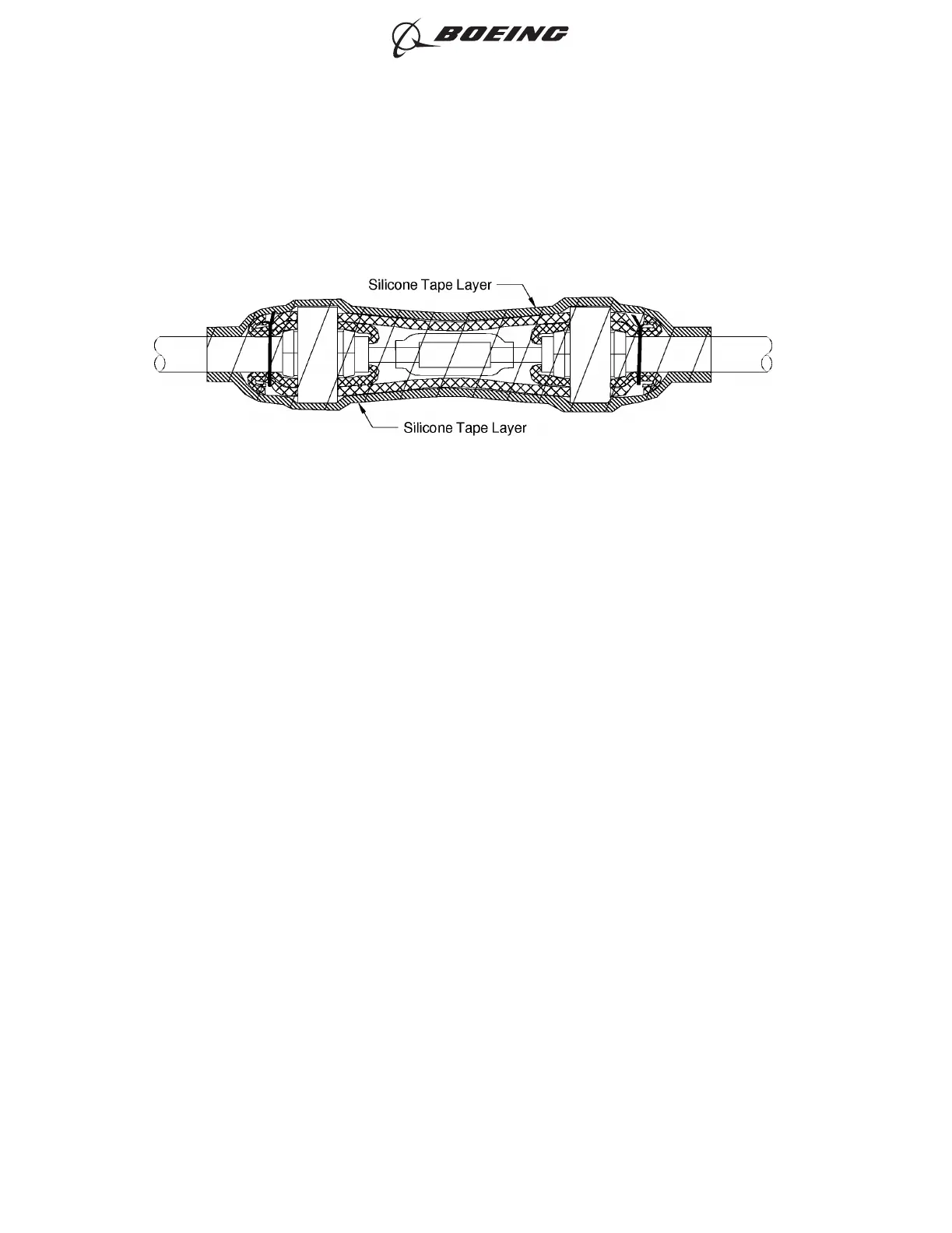

THE FIRST LAYER OF SILICONE TAPE ON THE SPLICE ASSEMBLY
Figure 219
