(17) Make a selection of a shield terminator band for each shield termination ring. Refer to
Subject 20-00-11.
Assemble a shield terminator band on the shields on each shield termination ring.
Refer to:
• Figure 230
• Refer to Subject 20-25-14 for the procedure to install the band.

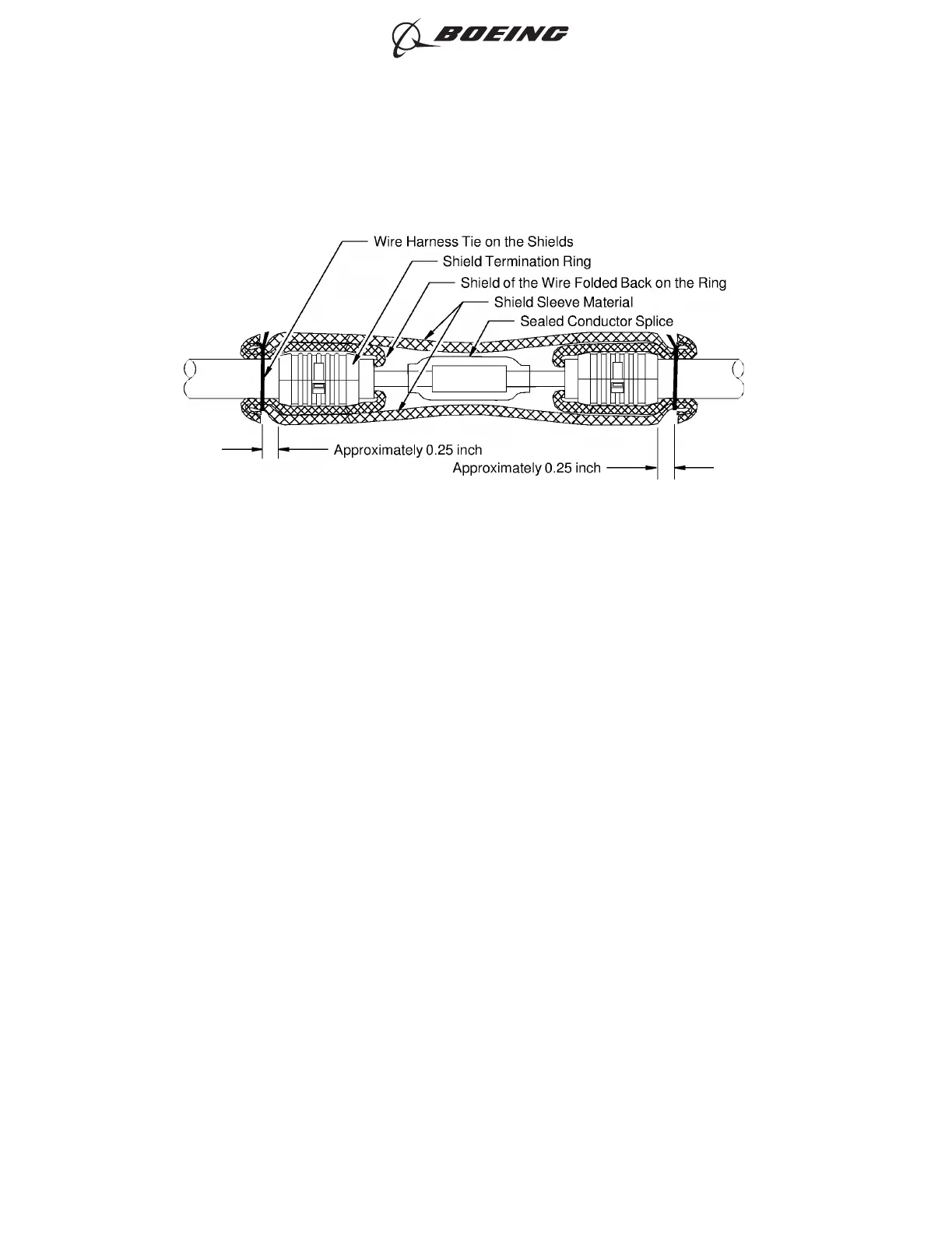

POSITION OF THE SHIELD SLEEVE MATERIAL ON THE SPLICE ASSEMBLY
Figure 229
ASSEMBLY OF SPLICES
