(13) Push the shield sleeve material onto the splice assembly.
(14) Remove the temporary layer of tape around the end of each shield.
(15) Align the ends of the shield sleeve material and the ends of the folded back shields. Refer to
Figure 229.
(16) Assemble a lacing tape wire harness tie on the shields approximately 0.25 inch from the rear end
of each shield termination ring.
Refer to:
• Figure 229
• Subject 20-10-11 for the procedure to assemble a lacing tape wire harness tie.

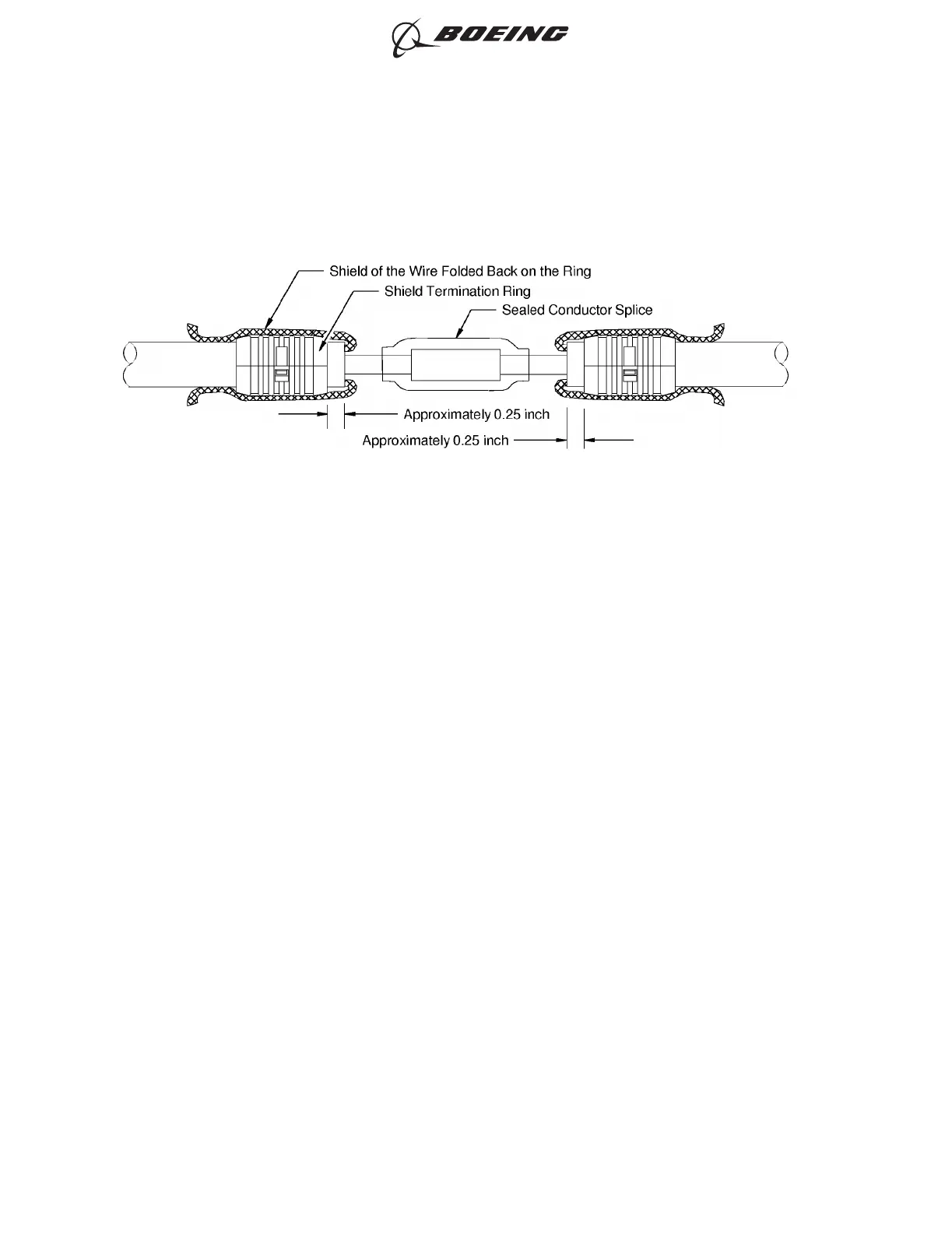

POSITION OF THE CONDUCTOR SPLICE
Figure 228
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 265
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
