(7) If it is not specified, make a selection of a Temperature Grade D shield sleeve material from Table
57.
Make sure that the shield sleeve material has the smallest diameter that can go on the folded
back shield on the shield termination ring.
NOTE: For alternative shield sleeve materials, refer to Subject 20-00-11.
(8) Make a selection of a Temperature Grade D heat shrinkable sleeve from Table 51.
Make sure that The heat shrinkable sleeve has the smallest diameter that can go on the
completed splice assembly.
(9) Cut the necessary length of the shield sleeve material.
Make sure that the ends of the shield sleeve material extend a minimum of one inch farther than
the rear end of each shield termination ring.
(10) Put the heat shrinkable sleeve and the shield sleeve material on the end of the other wire. Refer
to Figure 227.
(11) If it is not specified, make a selection of an applicable Temperature Grade D sealed conductor
splice for one wire to one wire. Refer to Paragraph 9.A.
(12) Assemble the sealed conductor splice.
Refer to:
• The applicable procedure given in Paragraph 9.A.
• Figure 228.

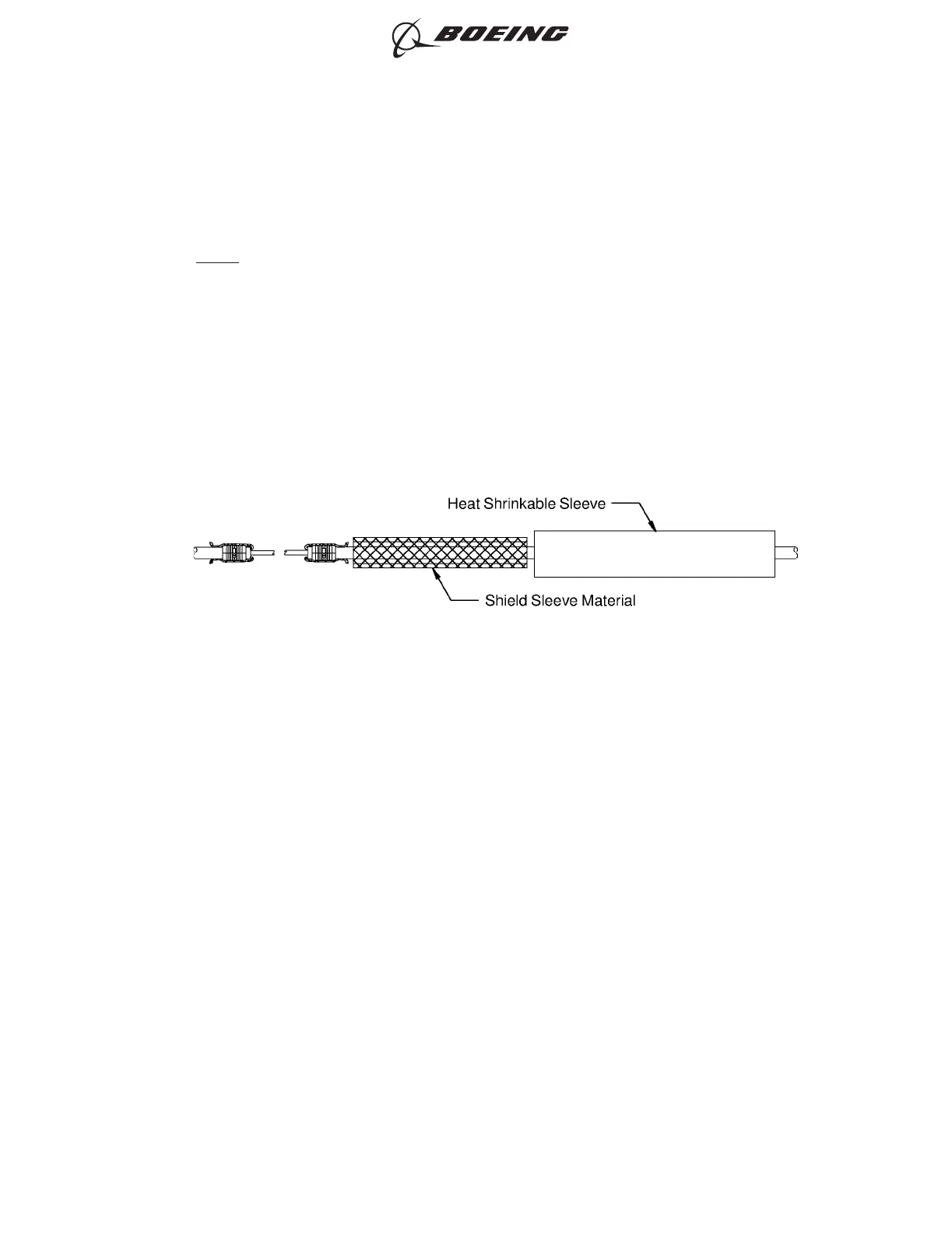

TEMPORARY POSITION OF THE SHIELD SLEEVE MATERIAL AND THE HEAT SHRINKABLE SLEEVE
ON THE WIRE
Figure 227
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 264
Jun 15/2021D6-54446
