(21) Tightly wind a second layer of Temperature Grade D Type II silicone tape on the splice assembly.
Refer to Figure 233.
2449358 S00061545537_V1

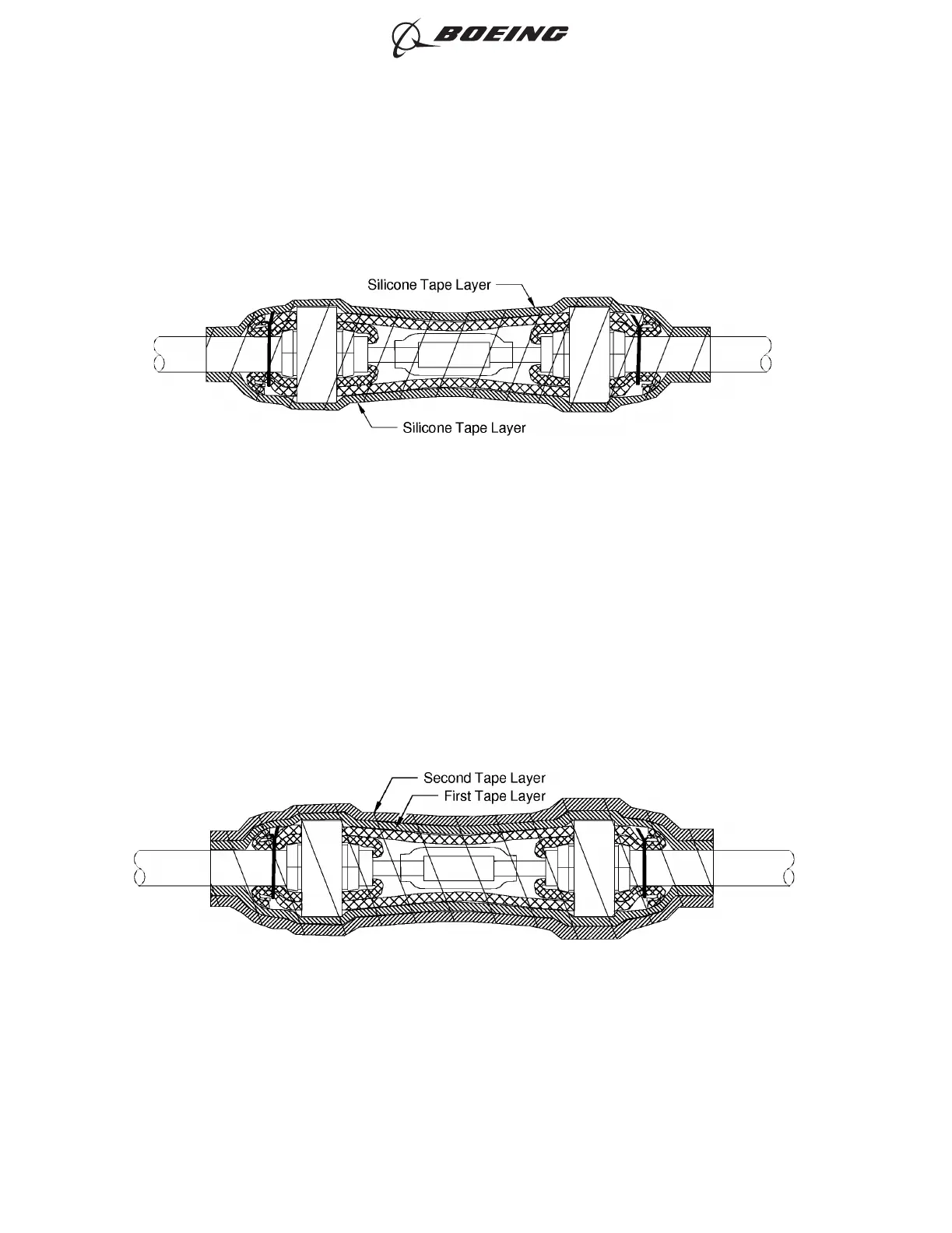

THE FIRST LAYER OF SILICONE TAPE ON THE SPLICE ASSEMBLY
Figure 232
2449364 S00061545542_V1
THE SECOND LAYER OF SILICONE TAPE ON THE SPLICE ASSEMBLY
Figure 233
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
