(2) Remove approximately 3 inches of the outer jacket from the end of the cable on each side of the
repair location.
Refer to:
• Figure 236
• Subject 20-00-15 for the outer jacket removal procedures.
(3) Wrap a minimum of one layer of Temperature Grade D Type I silicone tape on each side of the
repair location on the each cable jacket near the end of the jacket where the shield termination
ring will be located.
Refer to Figure 238 and Figure 237.
NOTE: Additional wraps of silicone tape tape may be necessary on the cable jacket to give a
proper fit for the shield termination ring.
(4) Put a shield termination ring on the jacket of the cable on each side of the repair location. Refer to
Figure 237.
Make sure that the distance from the end of the jacket to the forward edge of the shield terminator
band is approximately 0.25 inch.

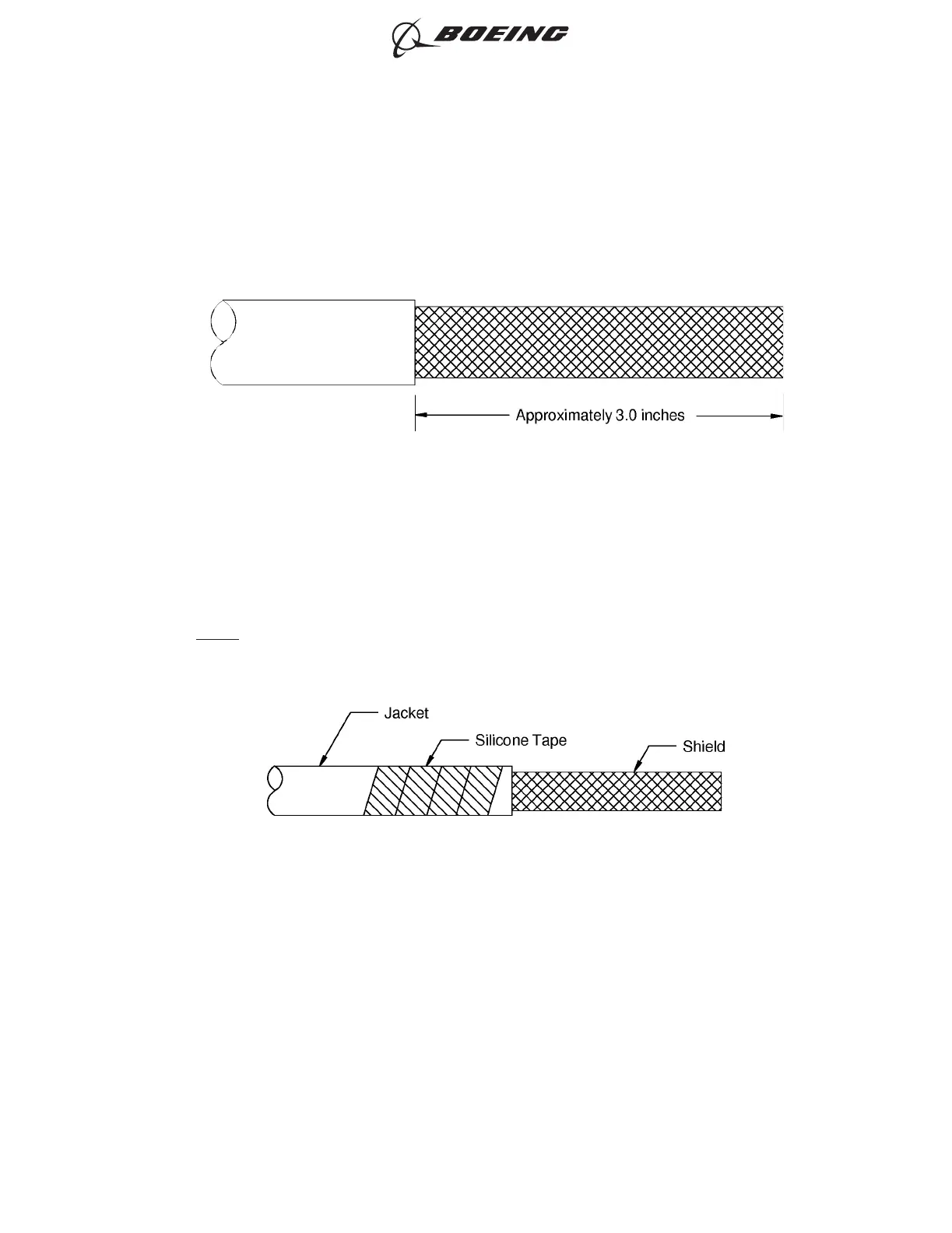

SHIELDED CABLE PREPARATION
Figure 236
POSITION OF THE SILICONE TAPE ON THE CABLE JACKET
Figure 237
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 272
Jun 15/2021D6-54446
