(11) If it is not specified, make a selection of an applicable Temperature Grade D conductor splice for
one wire to one wire. Refer to Paragraph 9.A.
(12) Assemble the necessary sealed conductor splices.
Refer to:
• The applicable procedure given in Paragraph 9.A.
• Figure 242.
(13) Push the shield sleeve material onto the splice assembly.
(14) Remove the temporary layer of tape around the end of each shield.

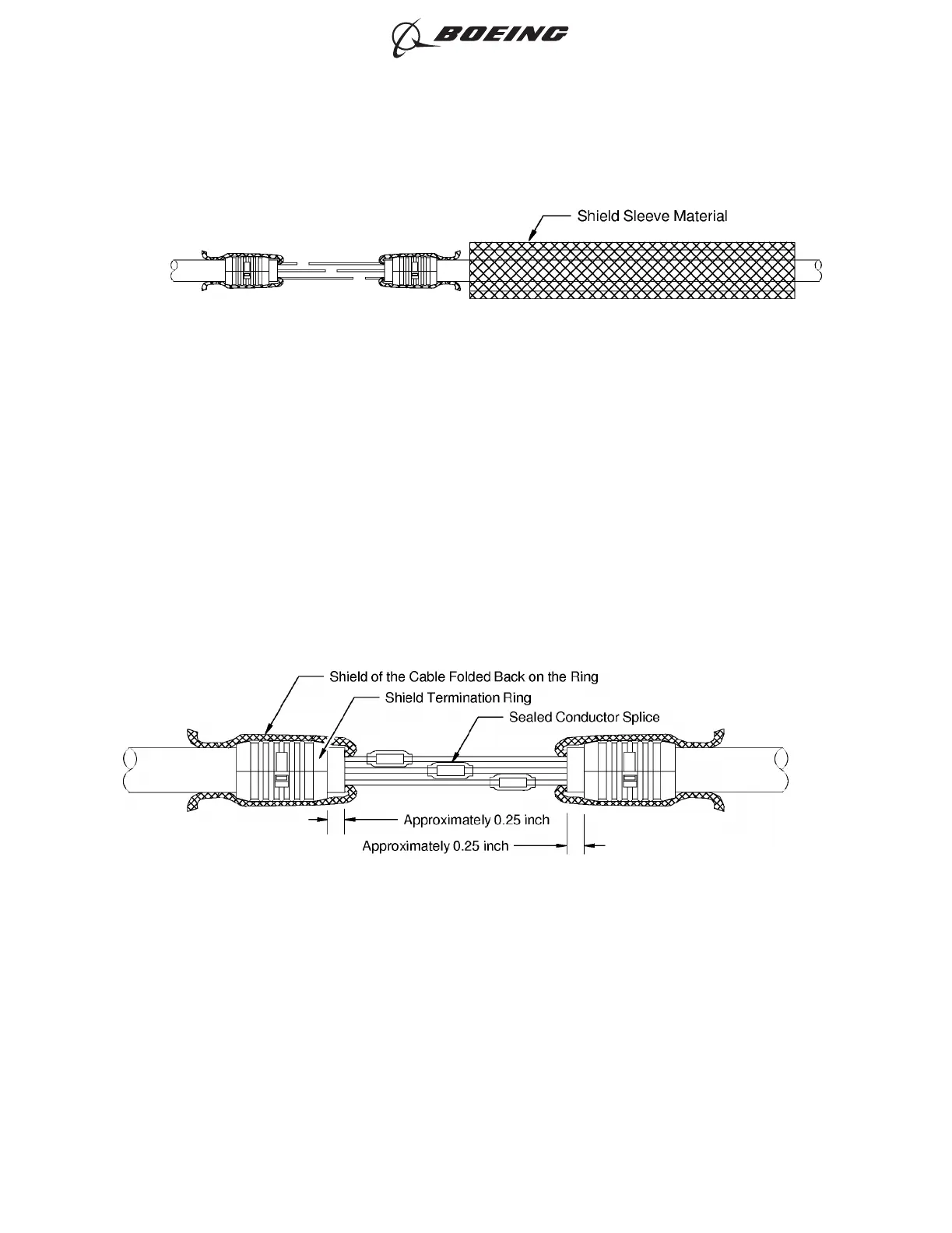

TEMPORARY POSITION OF THE SHIELD SLEEVE MATERIAL ON THE CABLE
Figure 241
POSITIONS OF THE CONDUCTOR SPLICES
Figure 242
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 275
Jun 15/2021D6-54446
