(19) Wind 2 to 3 layers of PTFE tape on each shield terminator band.
Make sure that the tape makes a one hundred percent overlap.
Refer to:
• Figure 259
• Subject 20-00-11 for the PTFE tape.

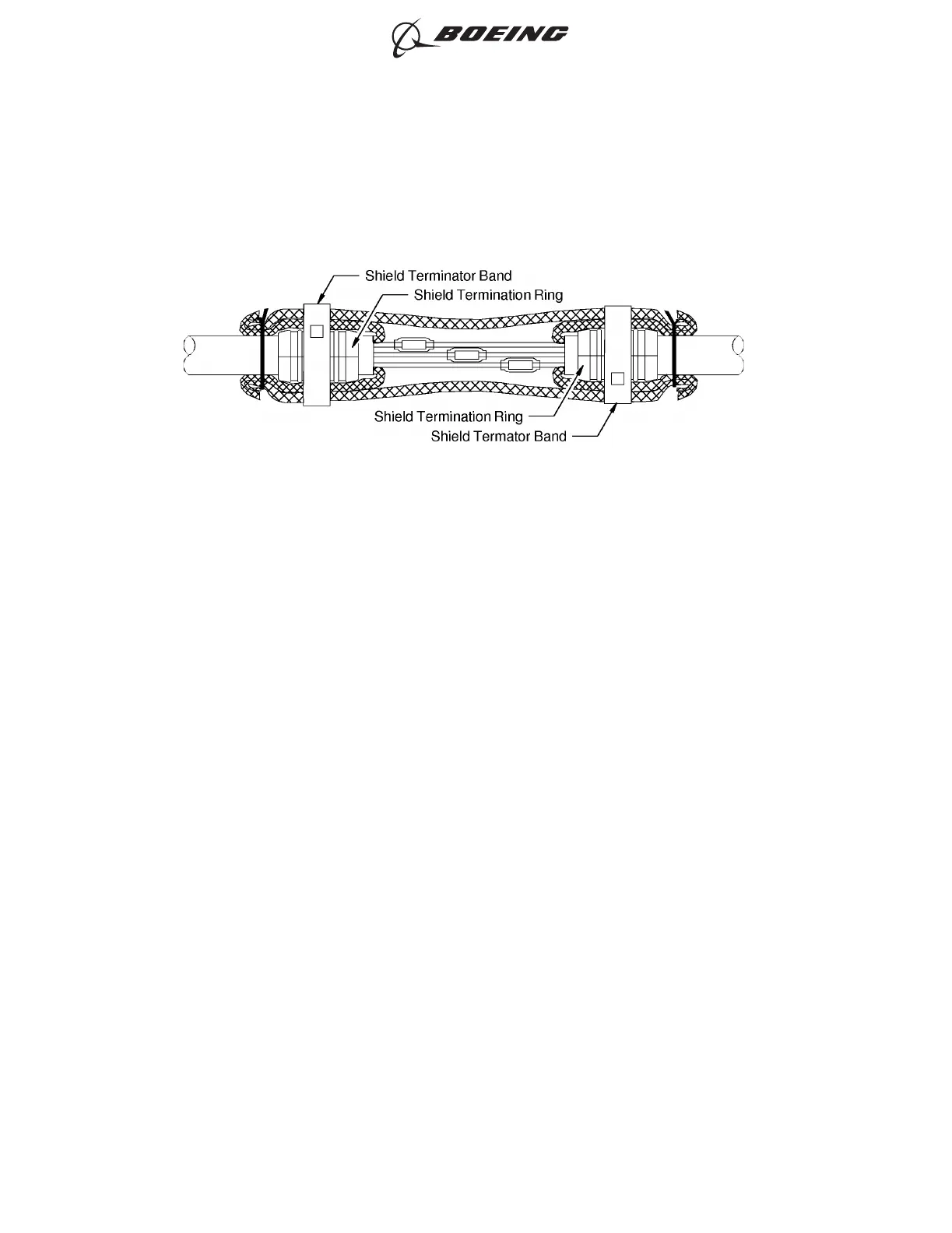

POSITION OF THE SHIELD TERMINATOR BANDS ON THE SHIELDS
Figure 258
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 287
Jun 15/2021D6-54446
