(16) Align the ends of the shield sleeve material and the ends of the folded back shields. Refer to
Figure 257.
(17) Assemble a lacing tape wire harness tie on the shields approximately 0.25 inch from the rear end
of each shield termination ring.
Refer to:
• Figure 257
• Subject 20-10-11 for the procedure to assemble a lacing tape wire harness tie.
(18) Make a selection of a shield terminator band for each shield termination ring. Refer to
Subject 20-00-11.
Assemble a shield terminator band on the shields on each shield termination ring.
Refer to:
• Figure 258
• Refer to Subject 20-25-14 for the procedure to install the band.

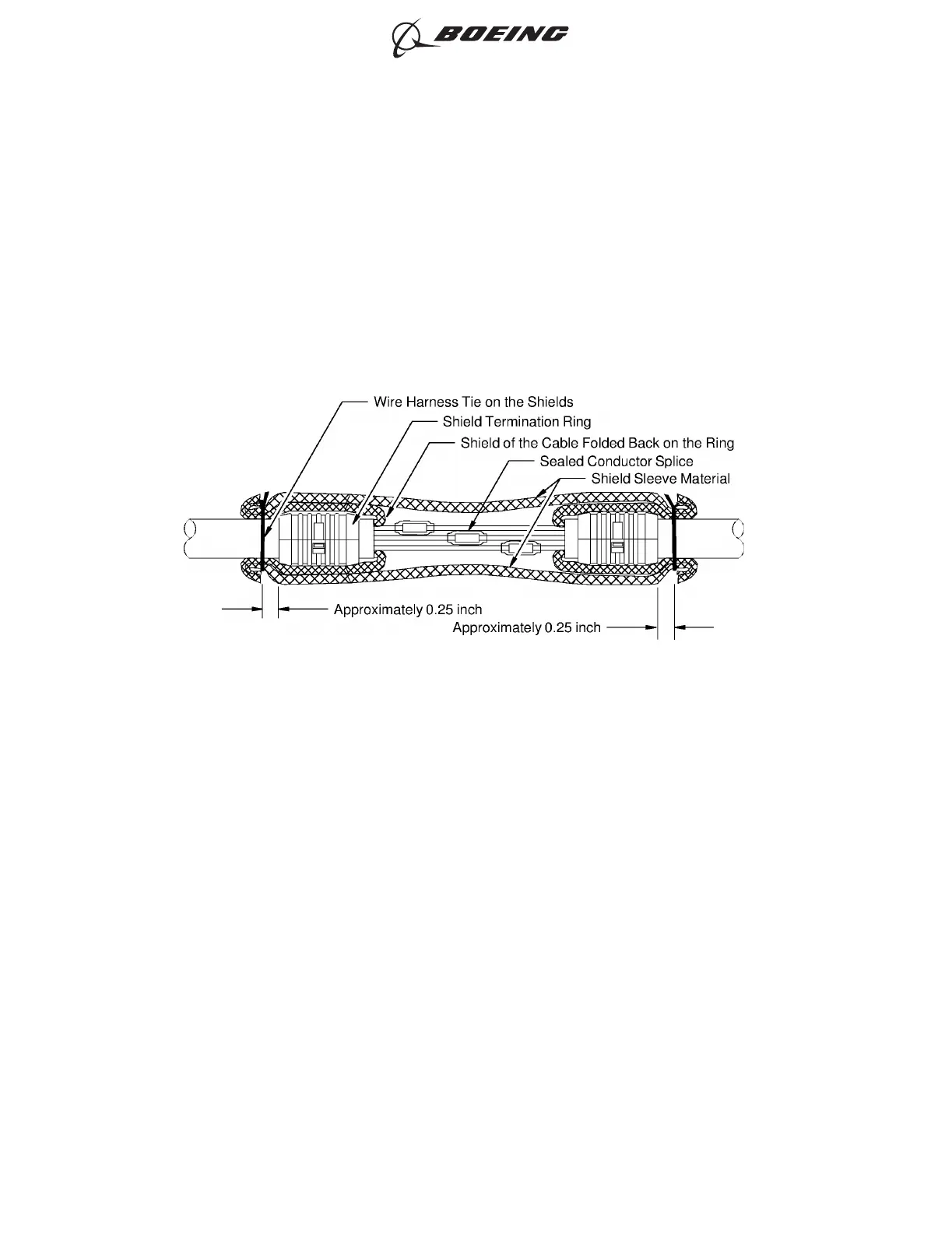

POSITION OF THE SHIELD SLEEVE MATERIAL ON THE SPLICE ASSEMBLY
Figure 257
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 286
Jun 15/2021D6-54446
