Make sure that the layer of tape:
• Starts where the first layer of tape stops
• Stops where the first layer of tape starts
• The tape makes approximately a 50 percent overlap with itself
• The tape makes approximately a 100 percent overlap at the ends.
(23) Shrink the heat shrinkable sleeve into position on the splice assembly.
Refer to:
• Figure 262
• Subject 20-10-14 for the procedure to shrink the sleeve.

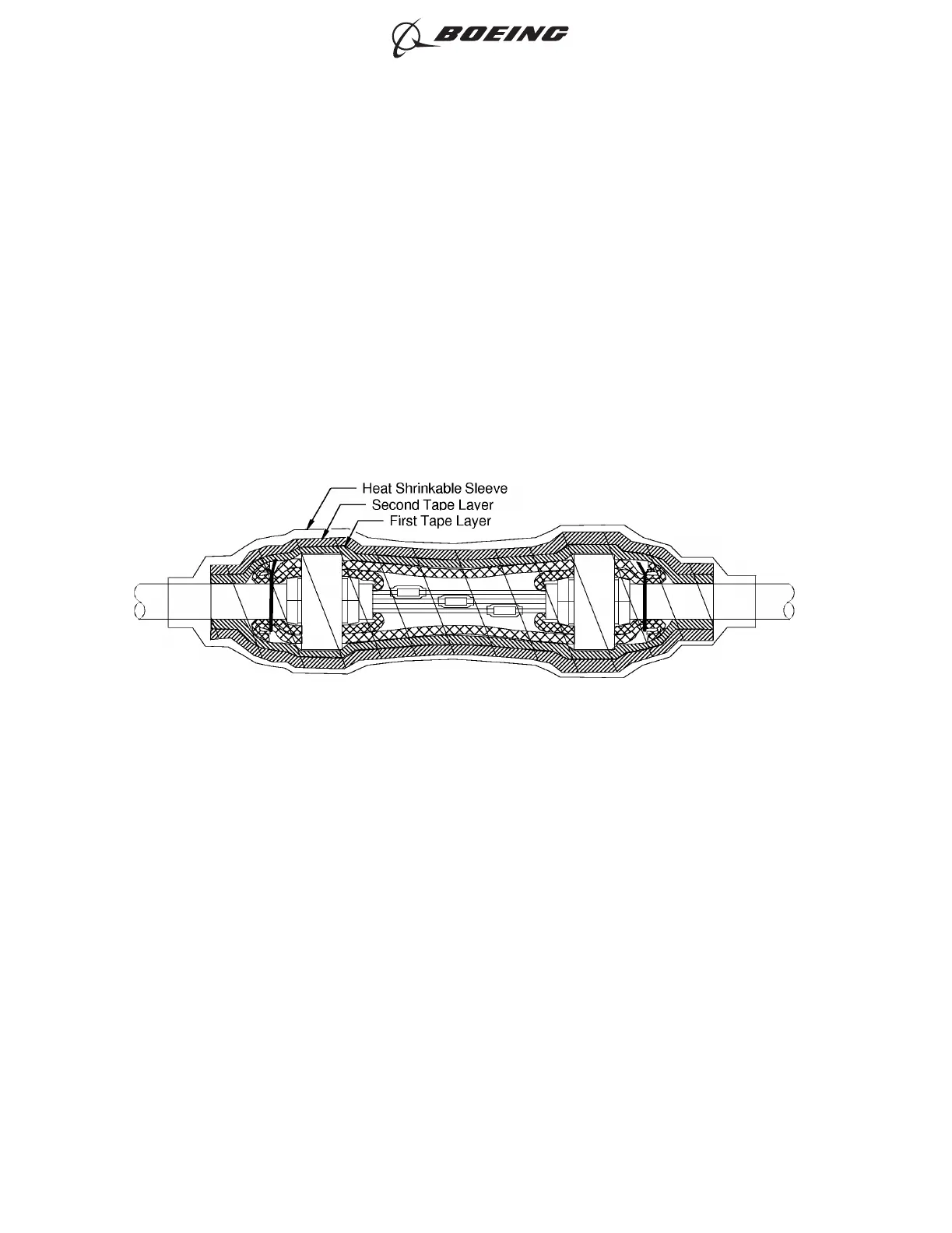

POSITION OF THE HEAT SHRINKABLE SLEEVE ON THE SPLICE ASSEMBLY
Figure 262
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 290
Jun 15/2021D6-54446
