This Subject gives the procedures to assemble these terminals with aluminum wire:
1. PART NUMBERS AND DESCRIPTION
(1) Terminal Lug Assembly Materials
(a) Necessary Materials
Table 1
Terminal Lug Assembly Materials
Material Specification Description Supplier
Release Agent
MS-122DF - Miller Stephenson Chemical
MS-122N/C02 - Miller Stephenson Chemical
MS-122V - Miller Stephenson Chemical
MS-122XD - Miller Stephenson Chemical
Solvent TT-I-735 Isopropyl Alcohol An available source
Wiper BMS15-5 - QPL
(b) Terminal Lug Part Numbers
Table 2
BACT12BC Terminal Lug Part Numbers
Part Number Crimp Barrel Size Type Tongue Configuration Stud Holes
BACT12BC5TE 1/0 Ring Tongue Straight 2
BACT12BC6TE 2/0 Ring Tongue Straight 2
BACT12BC7TE 3/0 Ring Tongue Straight 2
STUD HOLE
STUD HOLE
CRIMP BARREL
TONGUE
2528266 S0000597150_V1

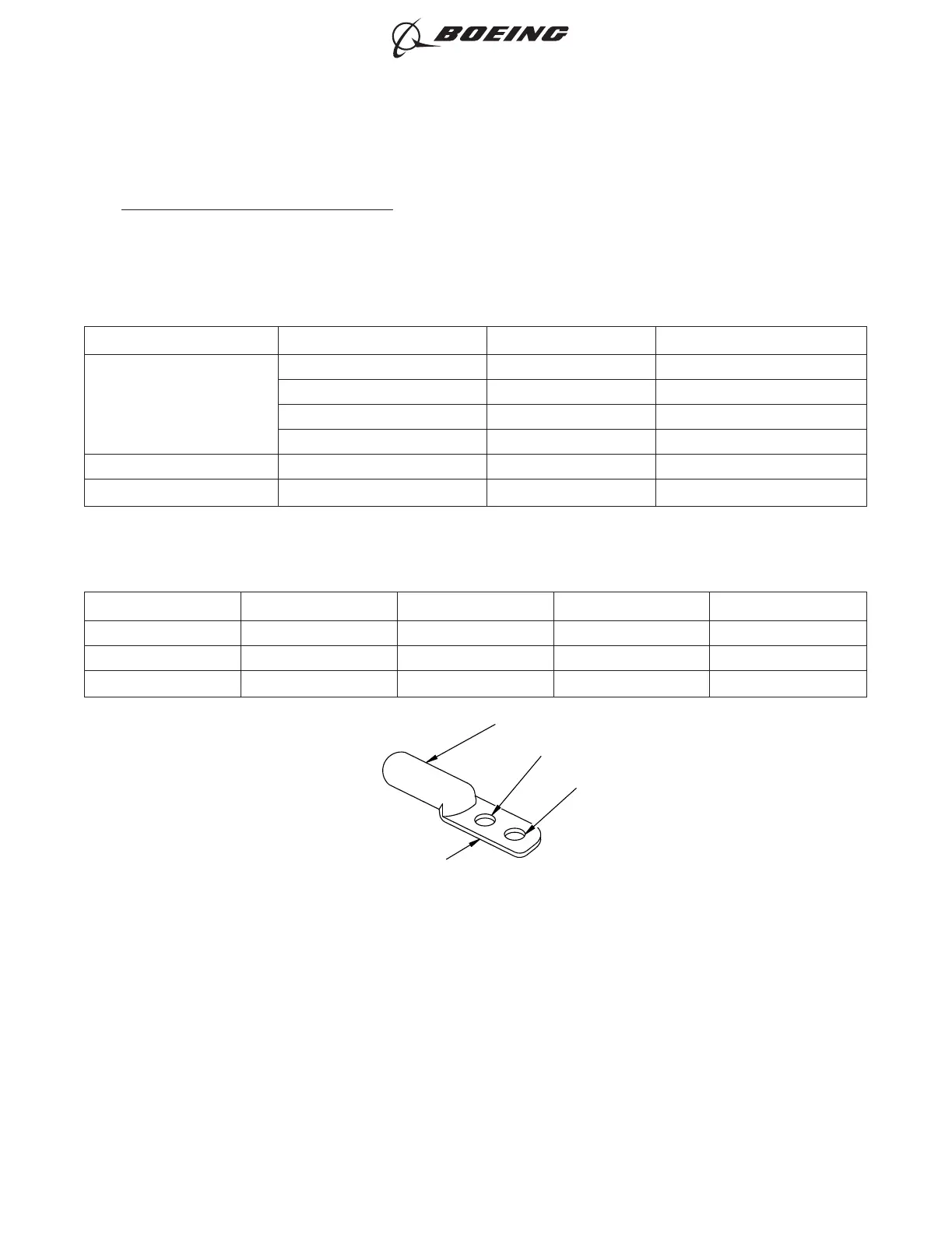

BACT12BC Terminal Lug
Figure 1
ASSEMBLY OF BACT12BC TE ALUMINUM TERMINALS
