0.15 INCH
MAXIMUM
FORWARD END
OF THE TONGUE
TRANSITION BARREL
REAR END OF
THE TONGUE
LONGITUDINAL AXIS OF THE
BOTTOM SURFACE OF THE
TONGUE
2528279 S0000597222_V1

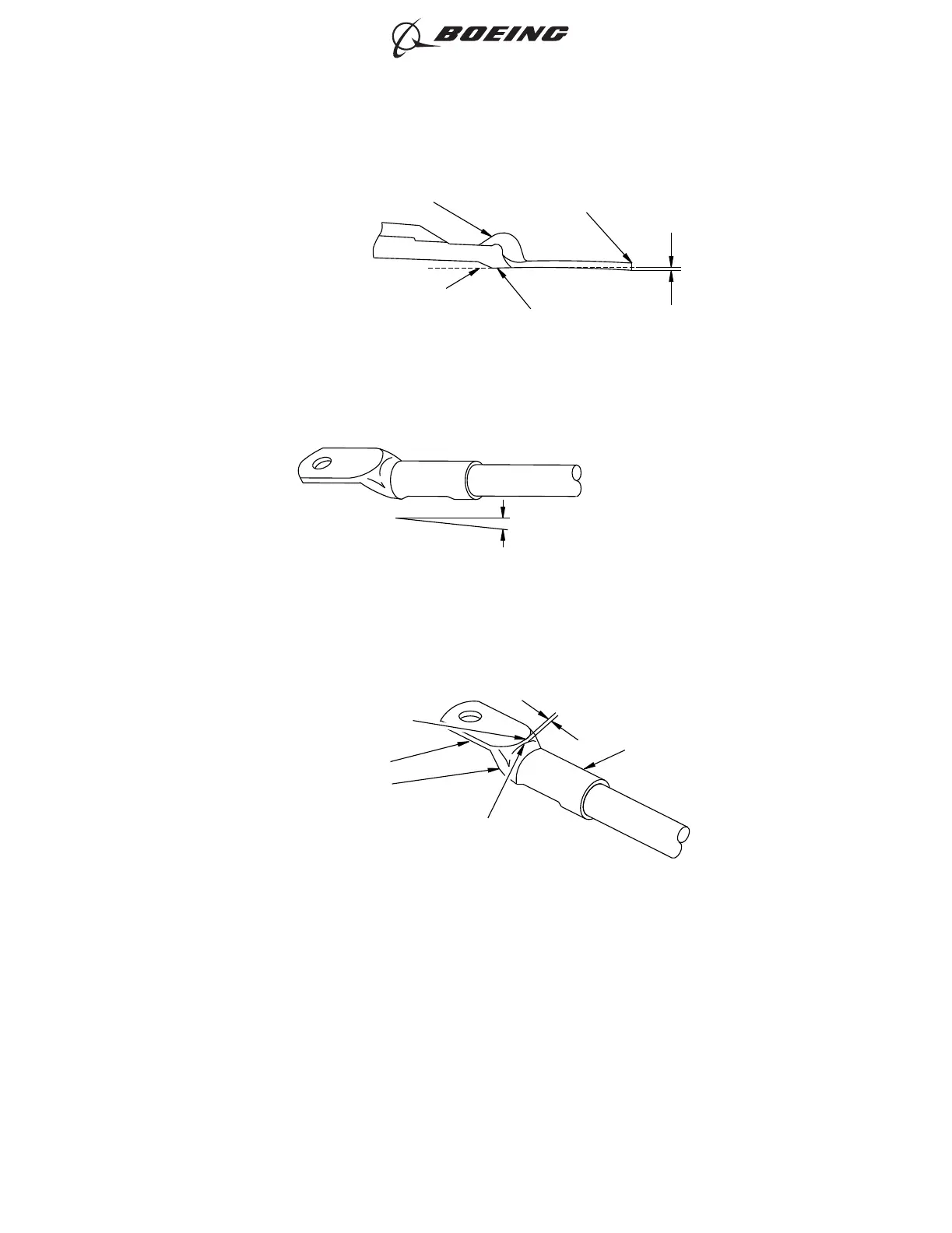

Terminal Lug Tongue - Bent Down
Figure 5
LESS THAN 15
DEGREES
2528299 S0000597223_V1
Straightness of the Terminal Lug Assembly
Figure 6
0.13 INCH MAXIMUM
TONGUE
REAR END OF THE TONGUE
TRANSITION BARREL
CRIMP BARREL
FORWARD EDGE OF
THE CRIMP MARK
2528866 S0000597224_V1
Position of the Crimp Mark on the Transition Barrel of the Terminal Lug
Figure 7
ASSEMBLY OF BACT12BC TE ALUMINUM TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-08
Page 8
Oct 15/2017D6-54446
