• All of the conductor strands are in the crimp barrel
• The end of the wire insulation is against the funnel.
CAUTION
DO NOT TURN THE WIRE DURING OR AFTER THE INSERTION OF THE
WIRE INTO THE TERMINAL.
(4) Crimp the terminal. Refer to Figure 14 and Figure 15.
Make sure that the crimp certification mark:
• Is in the correct position
• Has the correct shape.

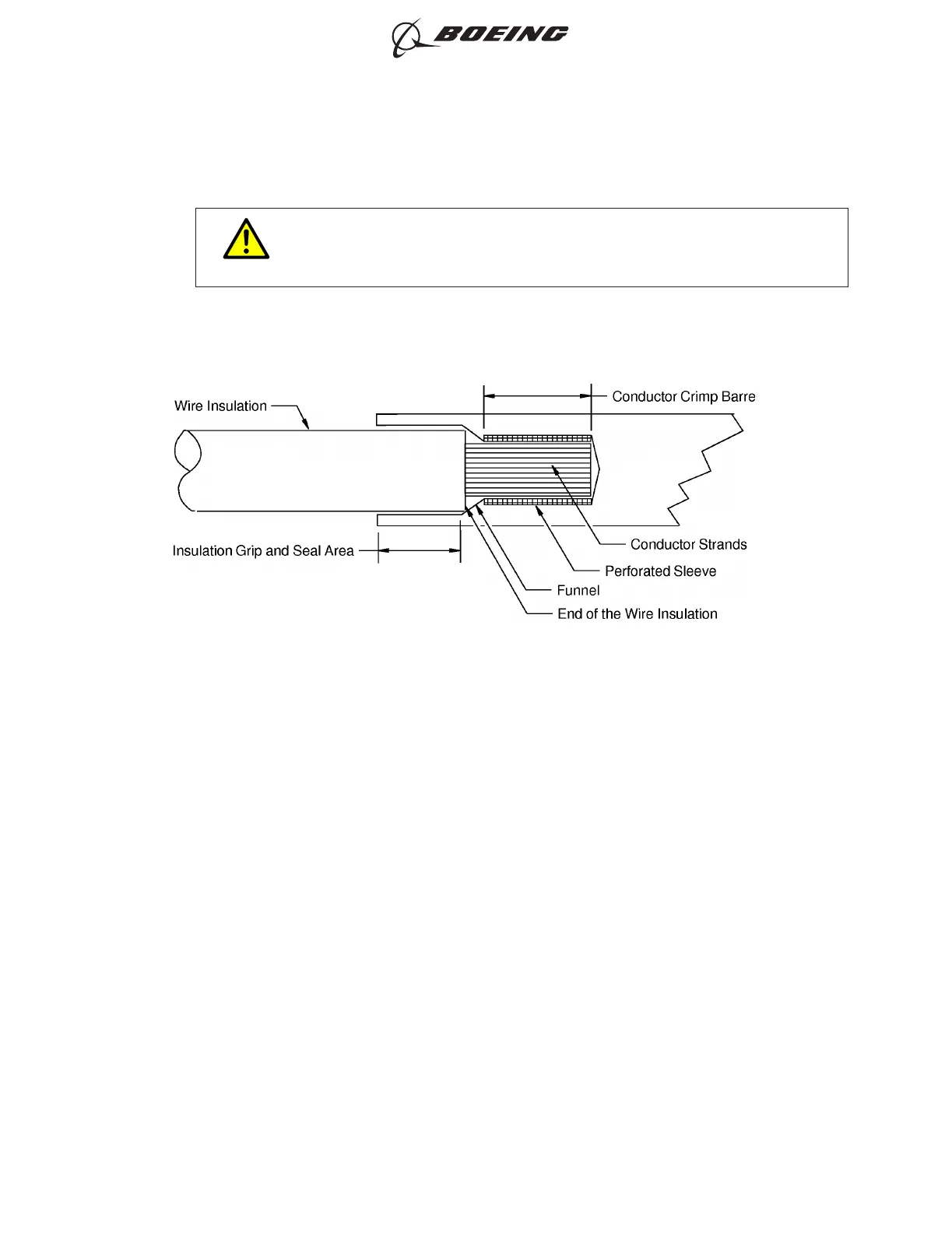

POSITION OF THE WIRE IN THE CRIMP BARREL OF THE COPALUM TERMINAL
Figure 13
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 25
Oct 15/2017D6-54446
