(6) If a heat shrinkable sleeve is specified for the insulation of the terminal lug assembly, install the
sleeve. Refer to Figure 25

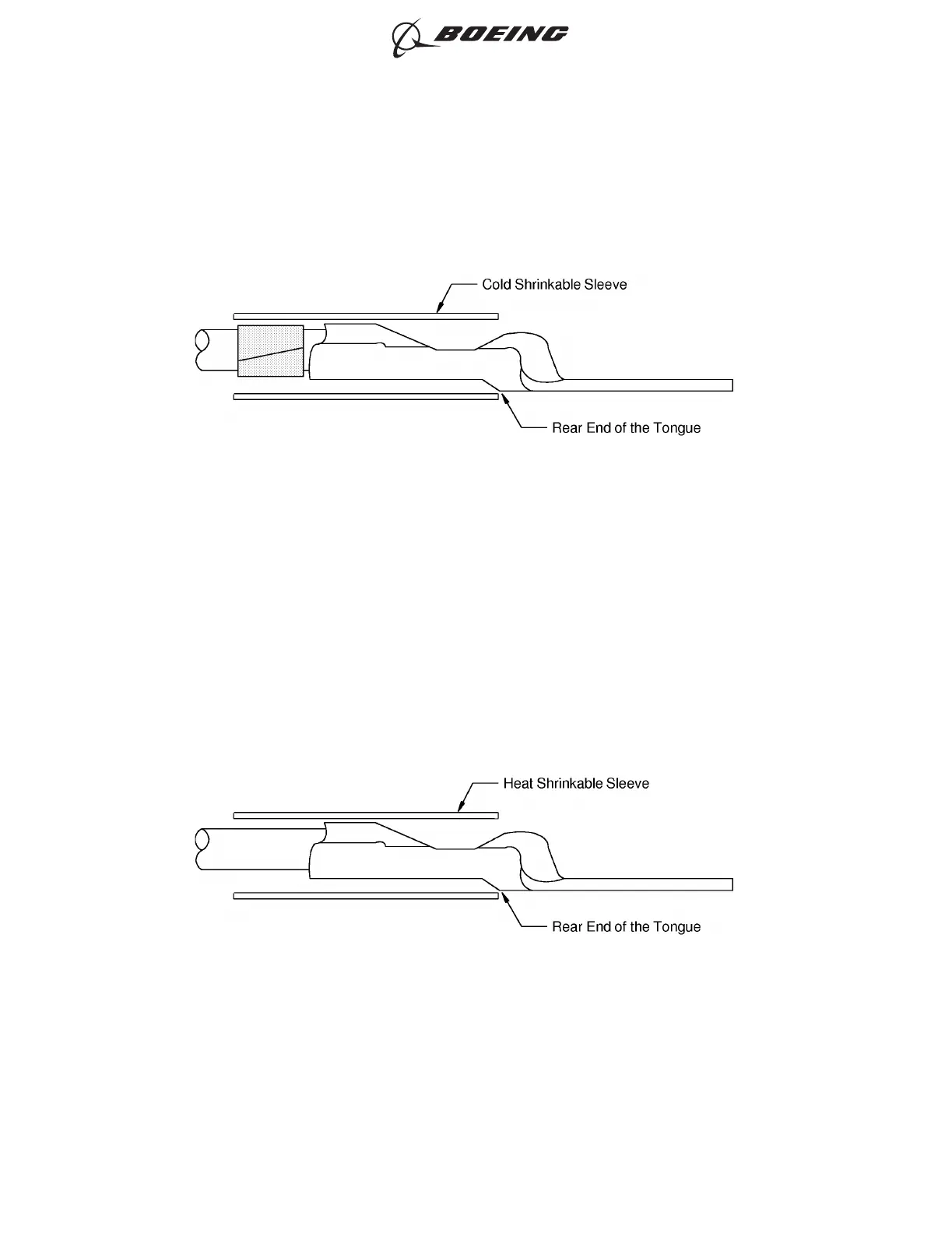

POSITION OF THE COLD SHRINKABLE SLEEVE ON THE TERMINAL LUG
Figure 24
POSITION OF THE HEAT SHRINKABLE SLEEVE ON THE TERMINAL LUG
Figure 25
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 34
Oct 15/2015D6-54446
