(1) Install the crimp head. Refer to Figure 33.
(2) Remove the latch pin and open the yoke on the crimp head.
(3) Loosen the yoke setscrew.
(4) Put the stationary upper die into the well of the yoke. Refer to Figure 34.
Make sure that the alignment dot on the front face of the die is on the same side as the yoke
setscrew.
(5) Tighten the yoke setscrew.
(6) Start the power unit to move the piston approximately 0.5 inch until the ram setscrew can be
seen.
(7) Loosen the ram setscrew.

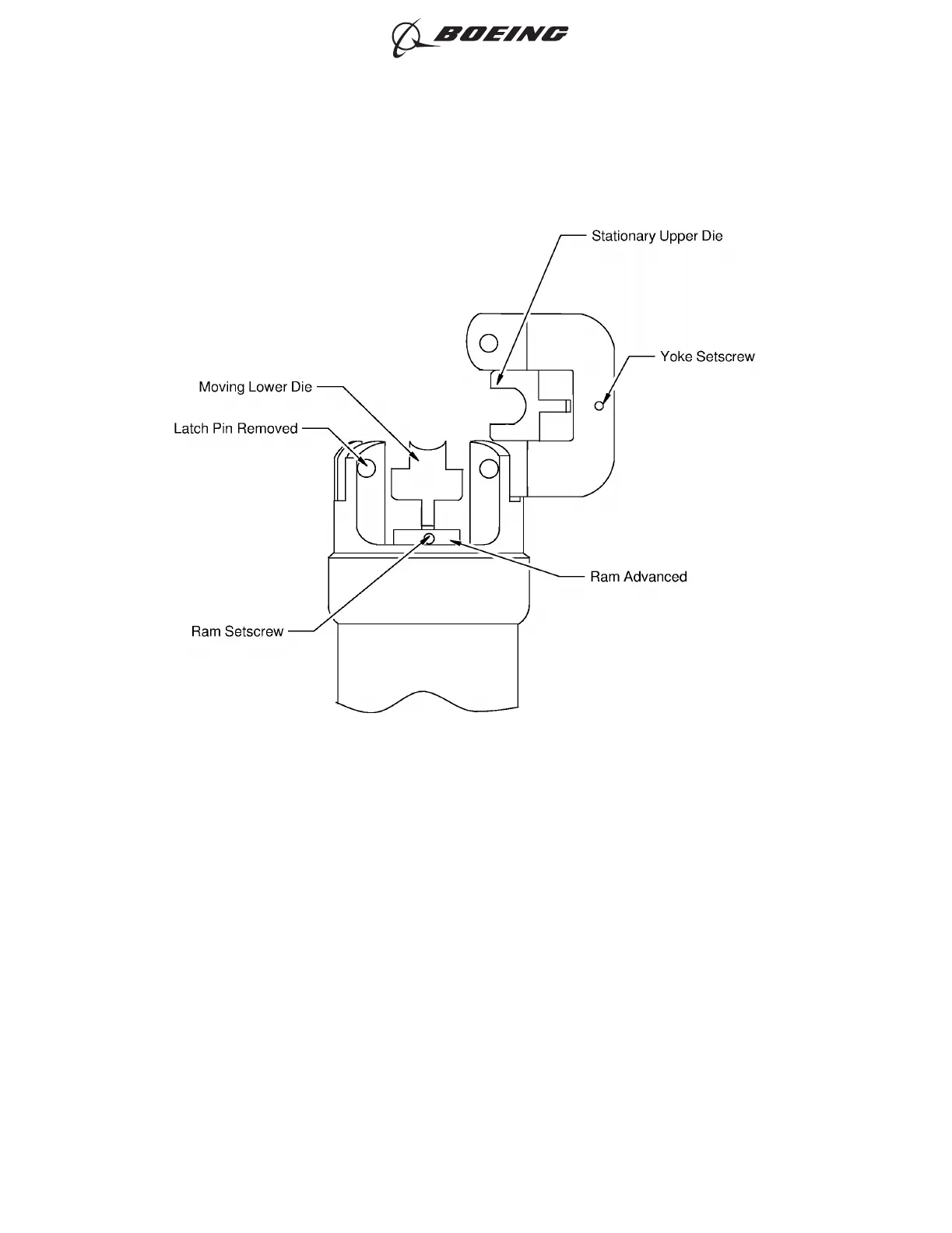

INSTALLATION OF THE DIES IN THE TYCO 69066 HYDRAULIC CRIMP TOOL
Figure 34
ASSEMBLY OF AMP (TYCO) COPALUM, MS25435 AND THOMAS & BETTS ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-14
Page 43
Oct 15/2017D6-54446
