Boeing 707 - Page 675

2449460 S00061545703_V1

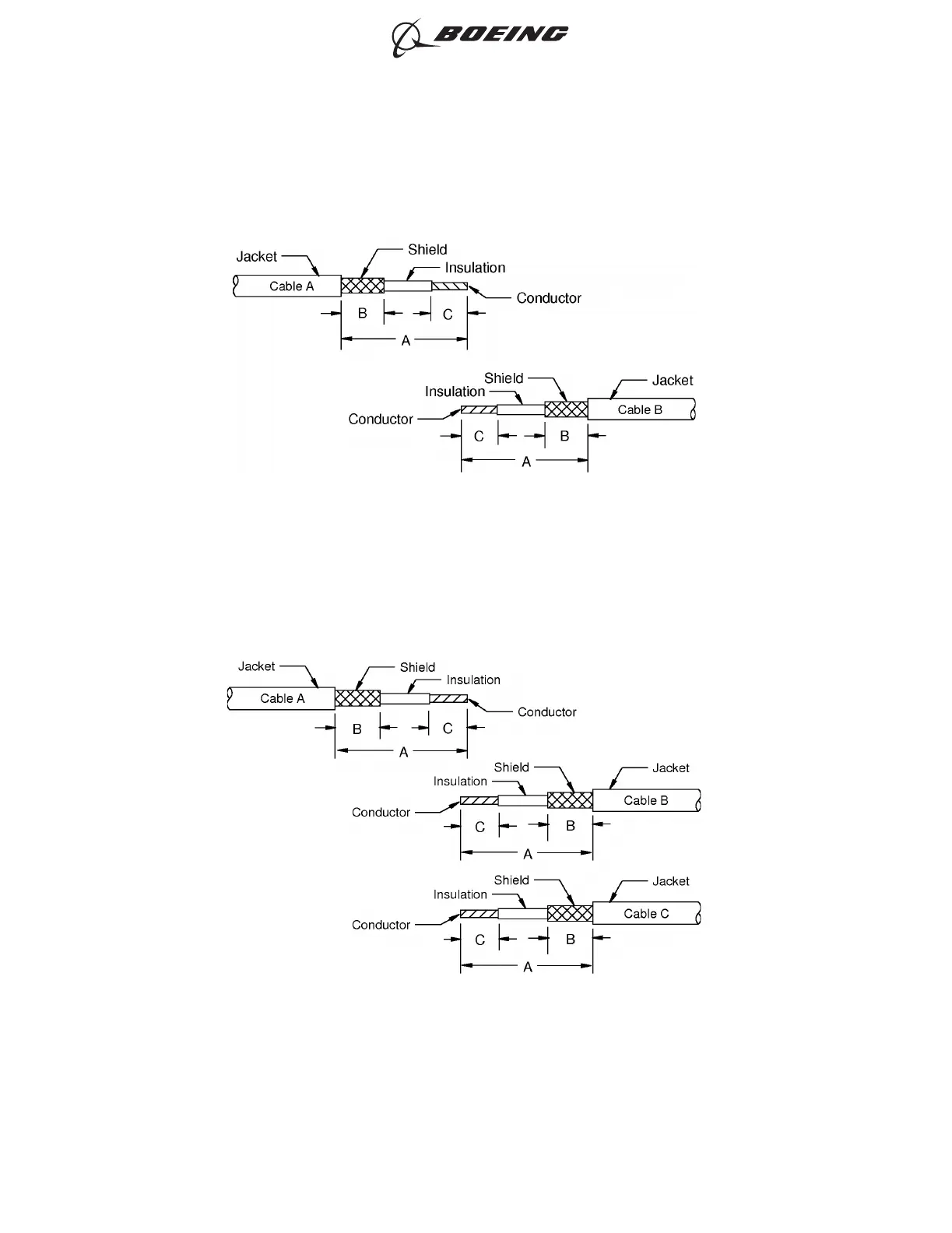

CABLE PREPARATION - 1 CABLE TO 1 CABLE, 1 CONDUCTOR
Figure 3
2449461 S00061545704_V1
CABLE PREPARATION - 1 CABLE TO 2 CABLES, 1 CONDUCTOR
Figure 4
ASSEMBLY OF BACS52R SHIELDED SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-19
Page 9
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
