Table 8 CONDUCTOR SPLICE CRIMP TOOLS (Continued)
Crimp Barrel Size Type Basic Unit Die
Die or Nest
Color
Supplier
12-16
Hand
AD-1377 - Yellow Tyco Electronics
GMT-232 - Yellow Daniels
ST956C - Yellow Boeing
ST956D - Yellow Boeing
Power PMTB-232 - Yellow Daniels
12-10 Hand
49935 - 12-10 AMP
59461 - 12-10 AMP
M22520/5-01 Y641 12-10 QPL
(1) Make a selection of a splice crimp tool from Table 8.
(2) Put a seal sleeve on the wire or wires.
(3) Assemble one end of the splice:
(a) Put one half of the conductor splice in the tool. Refer to Figure 24.
If the conductor splice has a seam, make sure that the seam is on the same side as the
indenter.
(b) Slowly close the jaws of the tool until the splice is held in position.

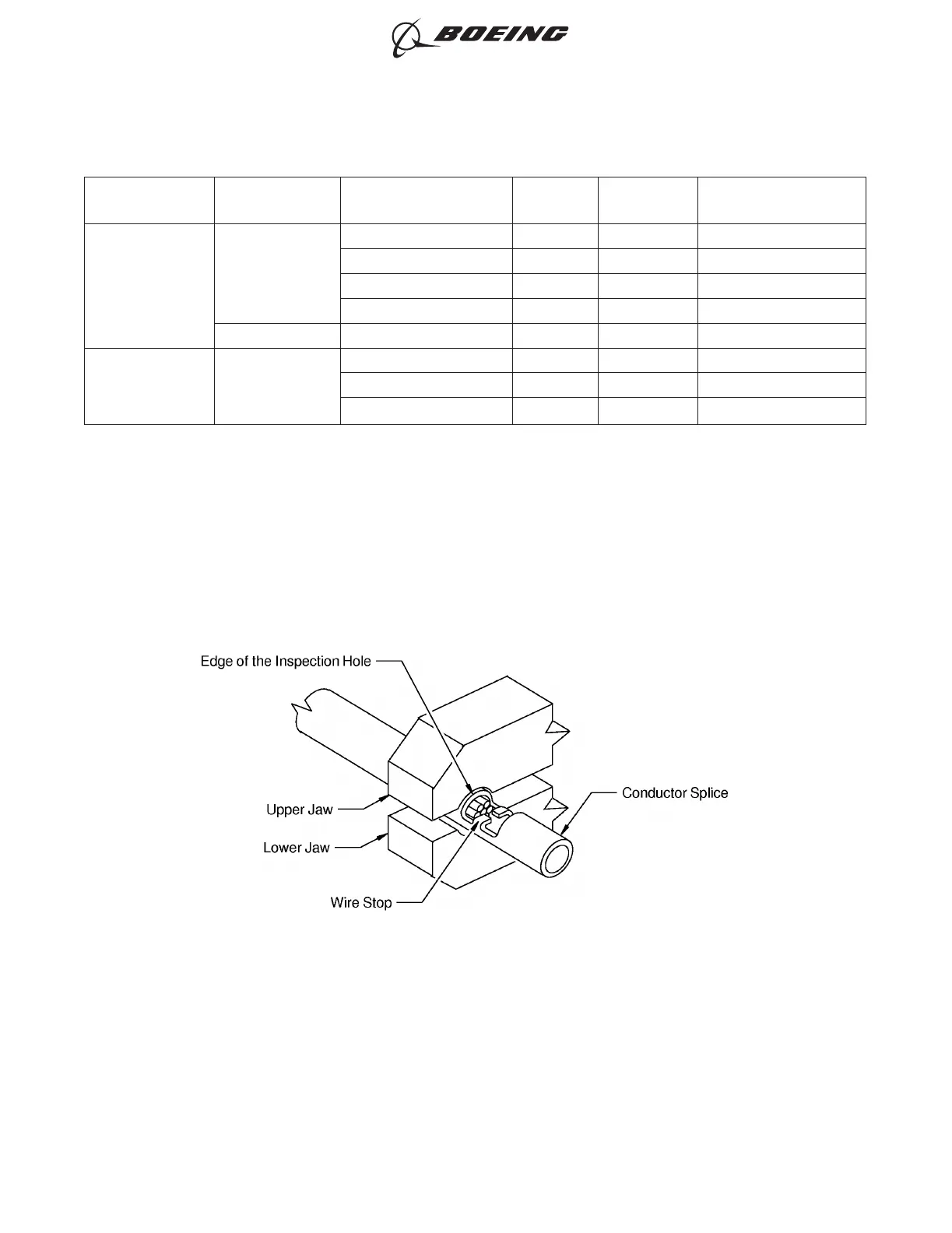

POSITION OF THE CONDUCTOR SPLICE IN THE CRIMP TOOL
Figure 24
ASSEMBLY OF BACS52R SHIELDED SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-19
Page 31
Oct 15/2017D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
