(8) Move the heat to the end of the sleeve until the seal ring is melted on the jacket of the cable.
Refer to Figure 25.
Make sure that not more than 0.1 inch of the shield of the cable can be seen through the sleeve
at each end of the splice assembly.
(9) Do Step 2.E.(5) through Step 2.E.(8) again for the other half of the sleeve.

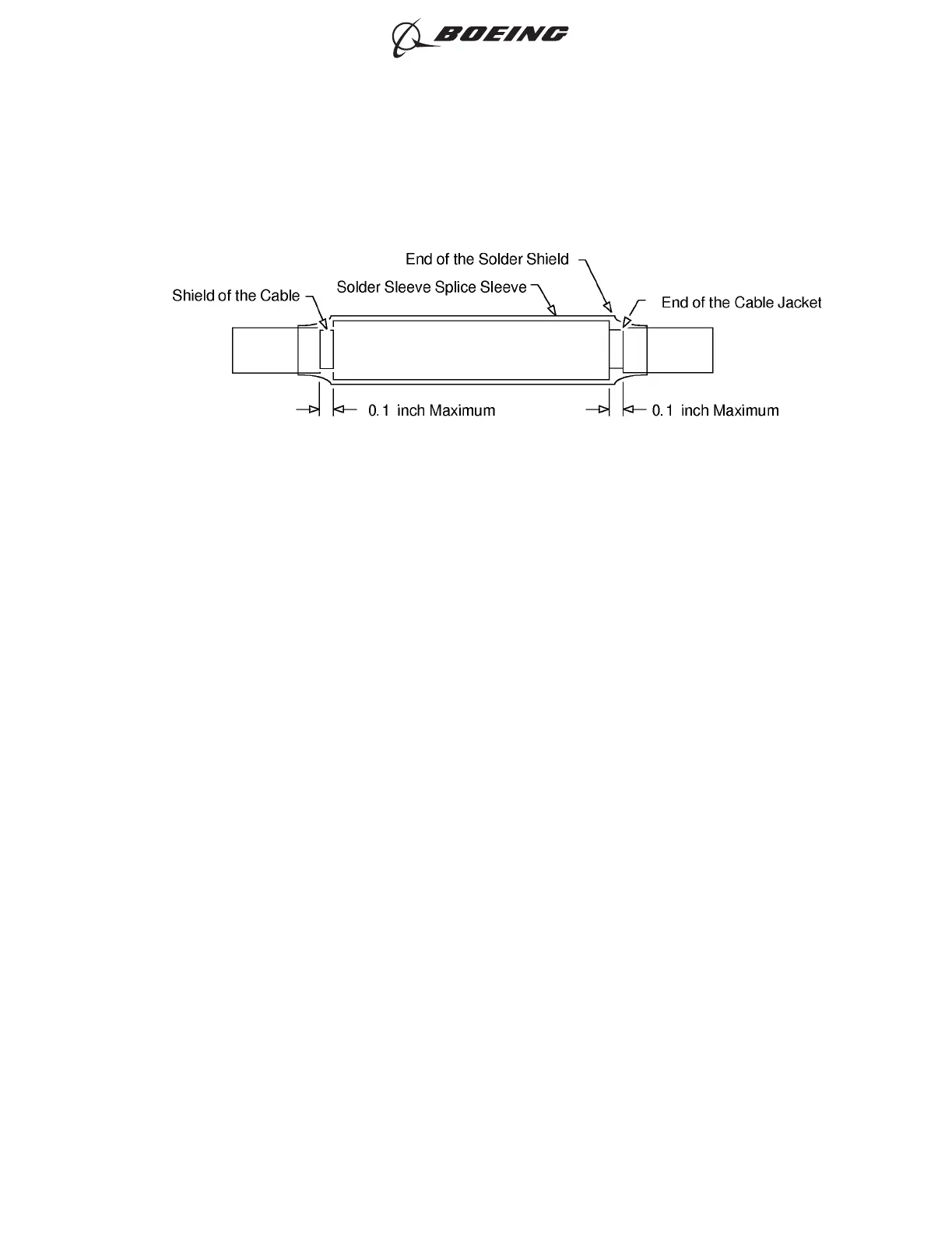

POSITION OF THE SOLDER SHIELD SPLICE SLEEVE
Figure 25
ASSEMBLY OF BACS52R SHIELDED SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-19
Page 34
Oct 15/2015D6-54446
