Table 3
BACT12AC GENERAL PURPOSE TERMINAL LUG PART NUMBERS
Crimp Barrel Size
(Wire Size Range)
(AWG)
CAU Range
Insulation
Color
Stud Hole Size Boeing Standard
Minimum Maximum
26 - 24 3 8 Yellow
2 BACT12AC43
4 BACT12AC44
6 BACT12AC45
8 BACT12AC46
10 BACT12AC47
2443687 S00061545415_V1

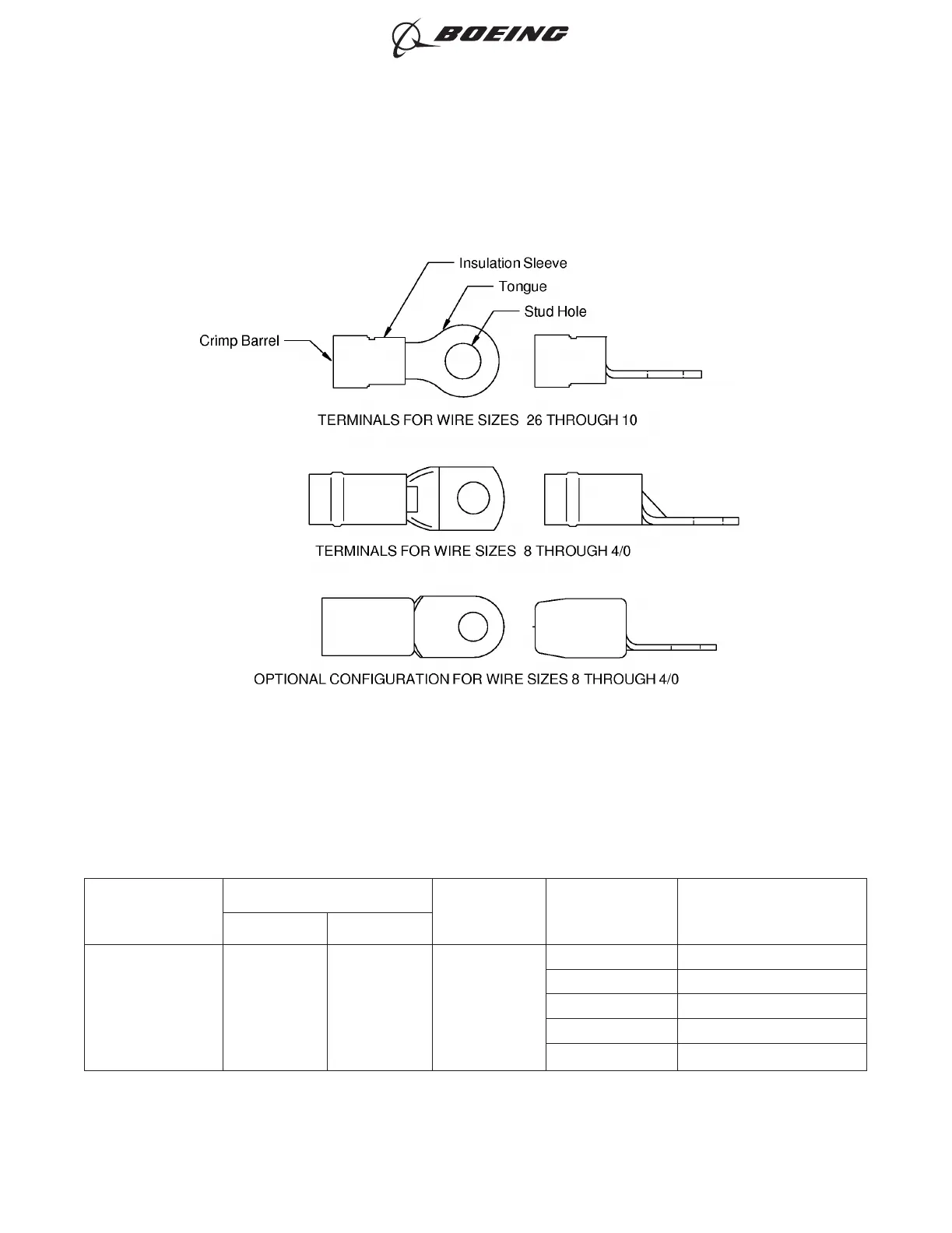

TYPICAL BACT12AC TERMINALS
Figure 2
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
