Boeing 707 - Page 827

(3) Fold the outer shield back on the outer jacket. Refer to Figure 30.
2449592 S00061545756_V1

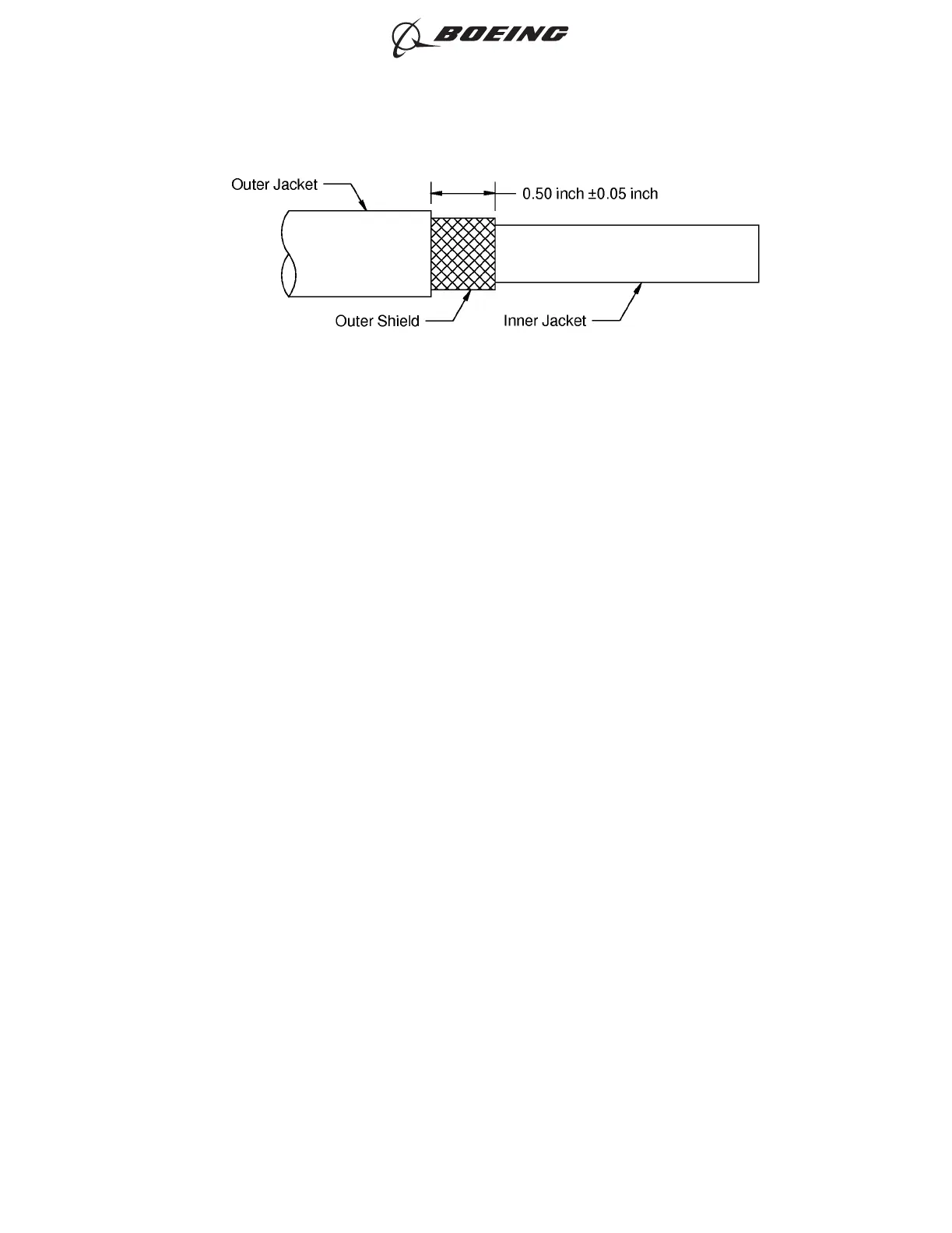

OUTER SHIELD REMOVAL
Figure 29
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 127
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
