Make sure that the small end of the solder sleeve is put on the cable first.
(9) Put a seal sleeve on Wire A1.
(10) Put a seal sleeve on Wire B2.
B. Kit Groups P1N1, P2N1, P3N1 or P4N1 - One Class 1 Cable to Two Class 1 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 31.

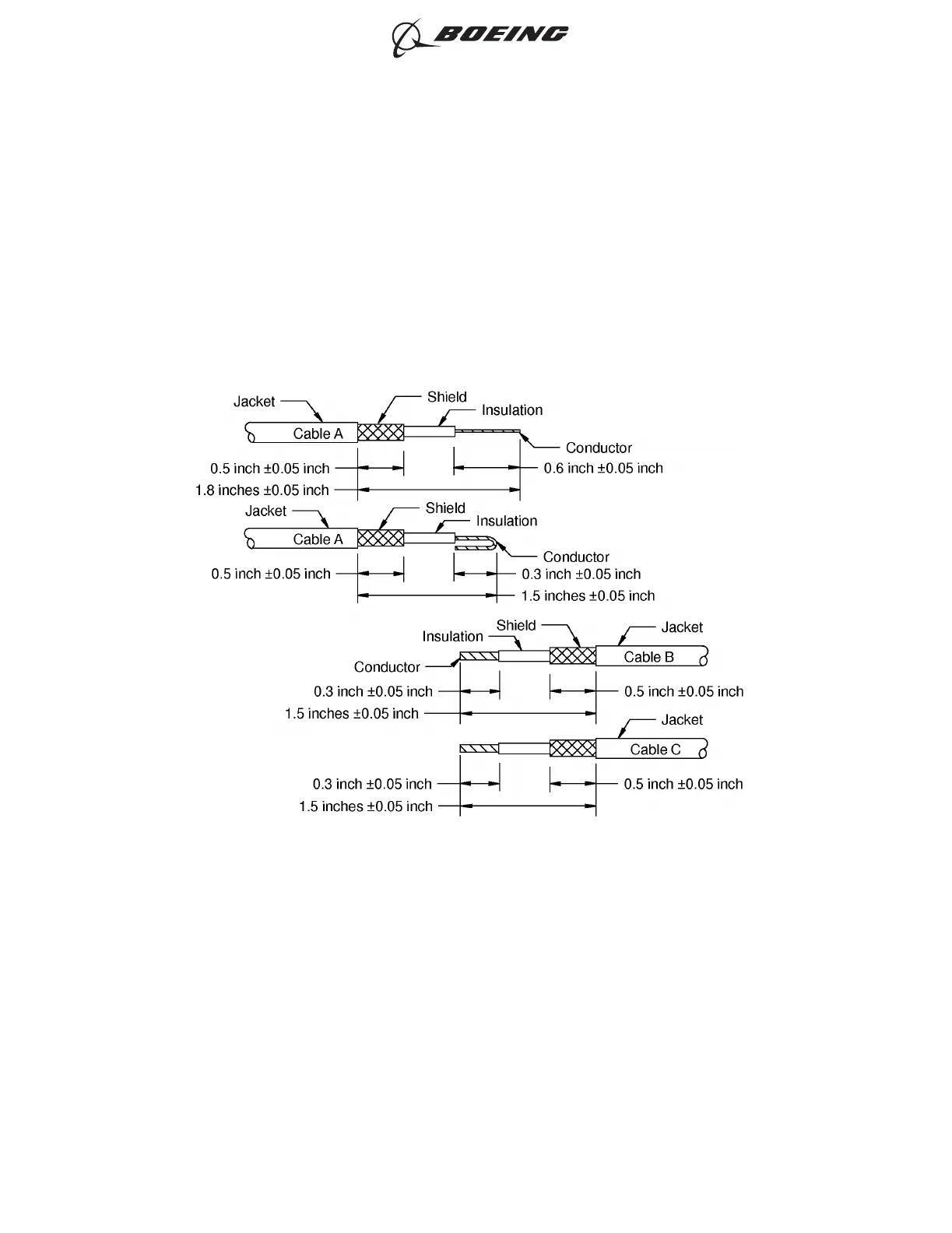

ONE CLASS 1 CABLE TO TWO CLASS 1 CABLES
Figure 31
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 130
Jun 15/2021D6-54446
