CAUTION
DO NOT CAUSE DAMAGE TO CONDUCTORS. THE DAMAGE CAN CAUSE
UNSATISFACTORY PERFORMANCE OF THE WIRE.
(7) Crimp the conductor splice.
Make sure that:
• The splice does not have a crack
• The insulation of the wire or wires is not in the crimp barrel
• The distance between the end of the insulation and the crimp barrel is not more than 0.03
inch.
(8) Do Step 1 through Step 7 again for the other end of the conductor splice.

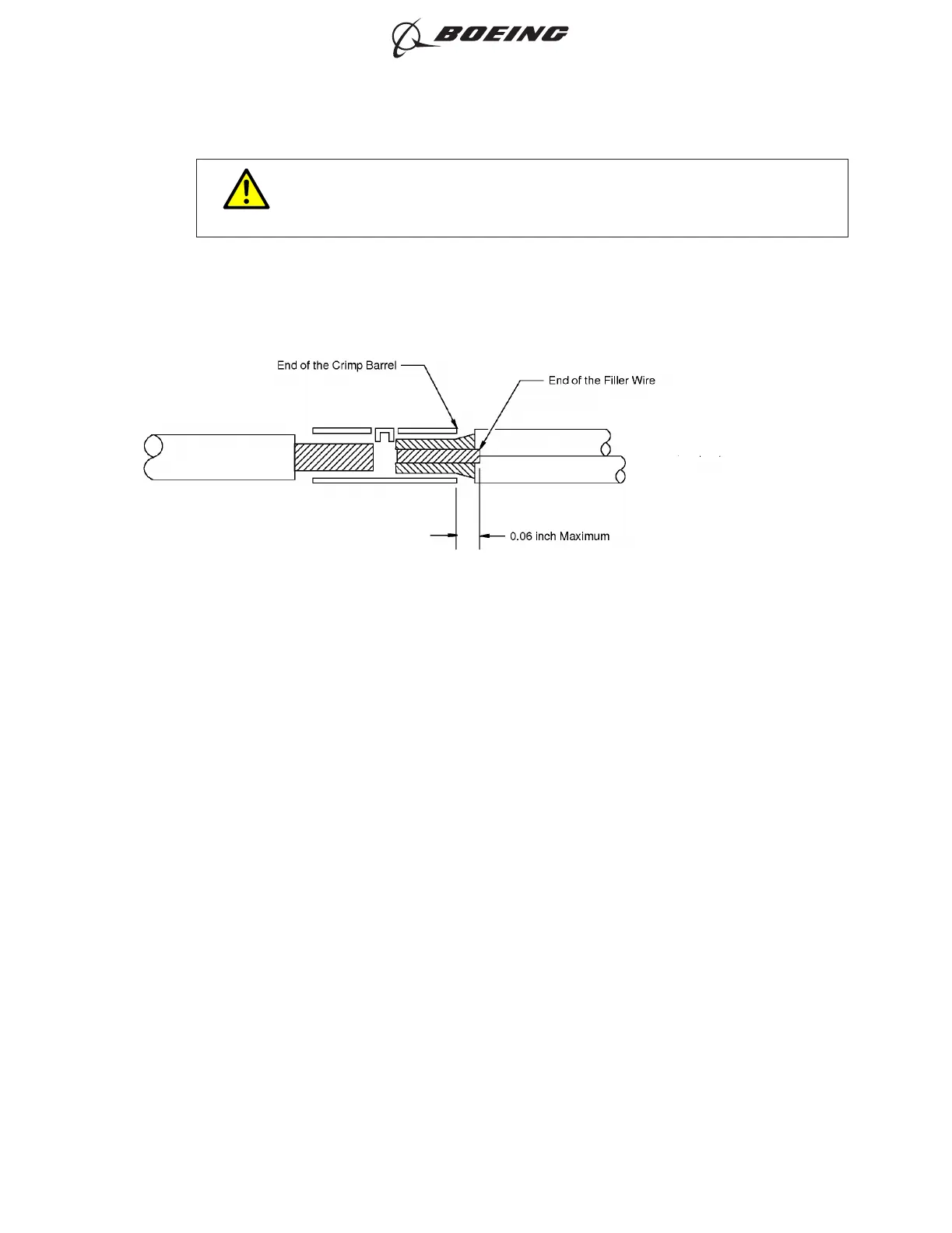

POSITION OF THE FILLER WIRE IN THE CONDUCTOR SPLICE
Figure 48
ASSEMBLY OF BACS52P SERIES AND D-150-0300 SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-20
Page 176
Jun 15/2021D6-54446
