Table 17
BACT12M AND 280U0010-1 HIGH TEMPERATURE TERMINAL LUG PART NUMBERS
Crimp Barrel Size
(Wire Size Range)
(AWG)
CAU Range
Stud Hole Size Boeing Standard
Minimum Maximum
22 - 18 7 24
4 BACT12M2
6 BACT12M130
8 BACT12M150
10 BACT12M4
1/4 BACT12M5
16 - 14 15 51
4 BACT12M7
6 BACT12M147
8 BACT12M173
10 BACT12M198
1/4 BACT12M8
3/8 BACT12M148

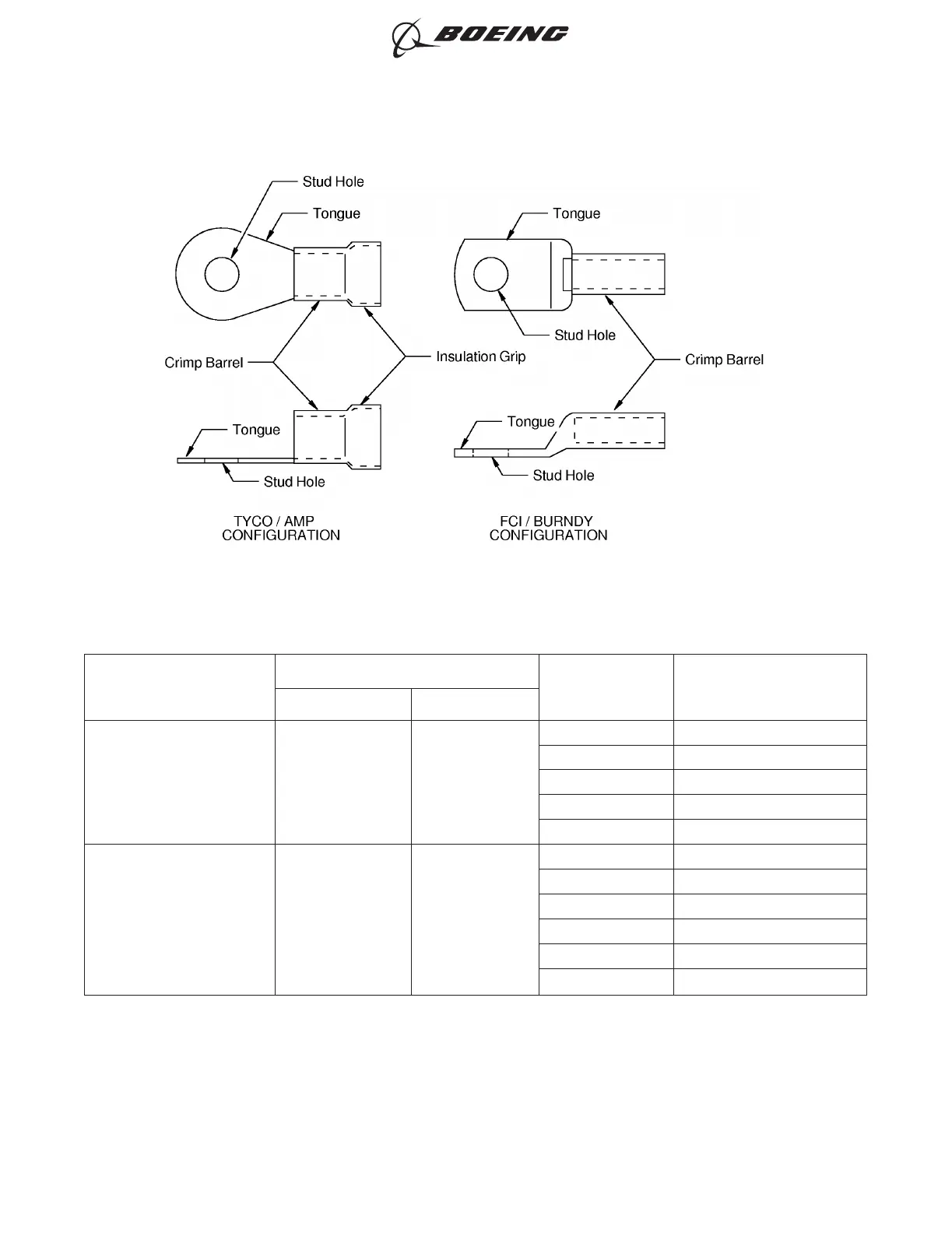

TYPICAL BACT12M TERMINAL LUGS
Figure 8
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 24
Feb 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
