D. Kit Group T1( ) 2, T2( ) 2 or T3( ) 2 - One Class 2 Cable to Two Class 2 Cables
For the conditions that are applicable for this procedure, refer to Paragraph 2.B..
Refer to Figure 32.

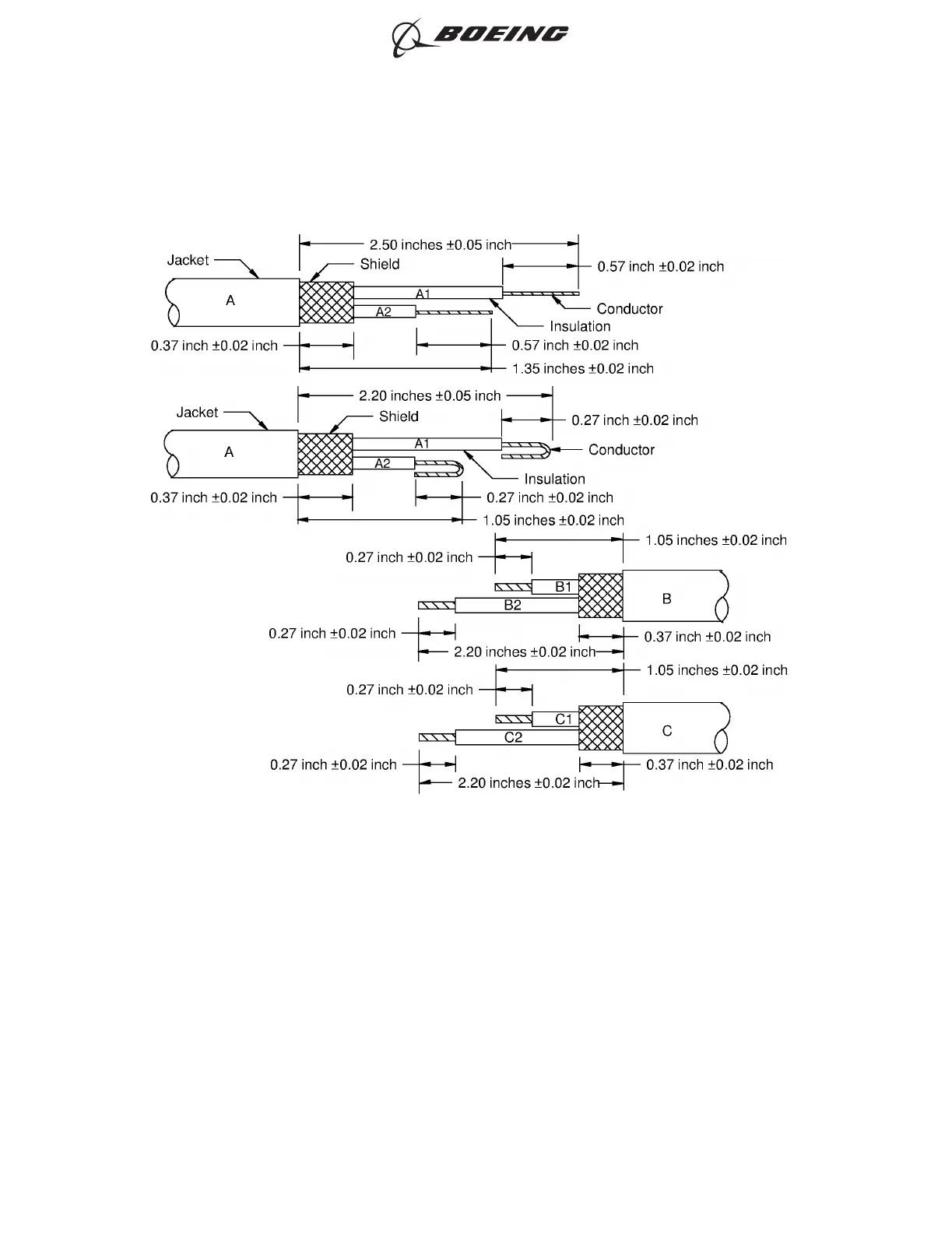

ONE CLASS 2 CABLE TO TWO CLASS 2 CABLES
Figure 32
ASSEMBLY OF BACS52T SERIES SHIELDED SPLICE ASSEMBLIES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-21
Page 82
Oct 15/2020D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
