Installing iLand
3-7
3
iControl DC

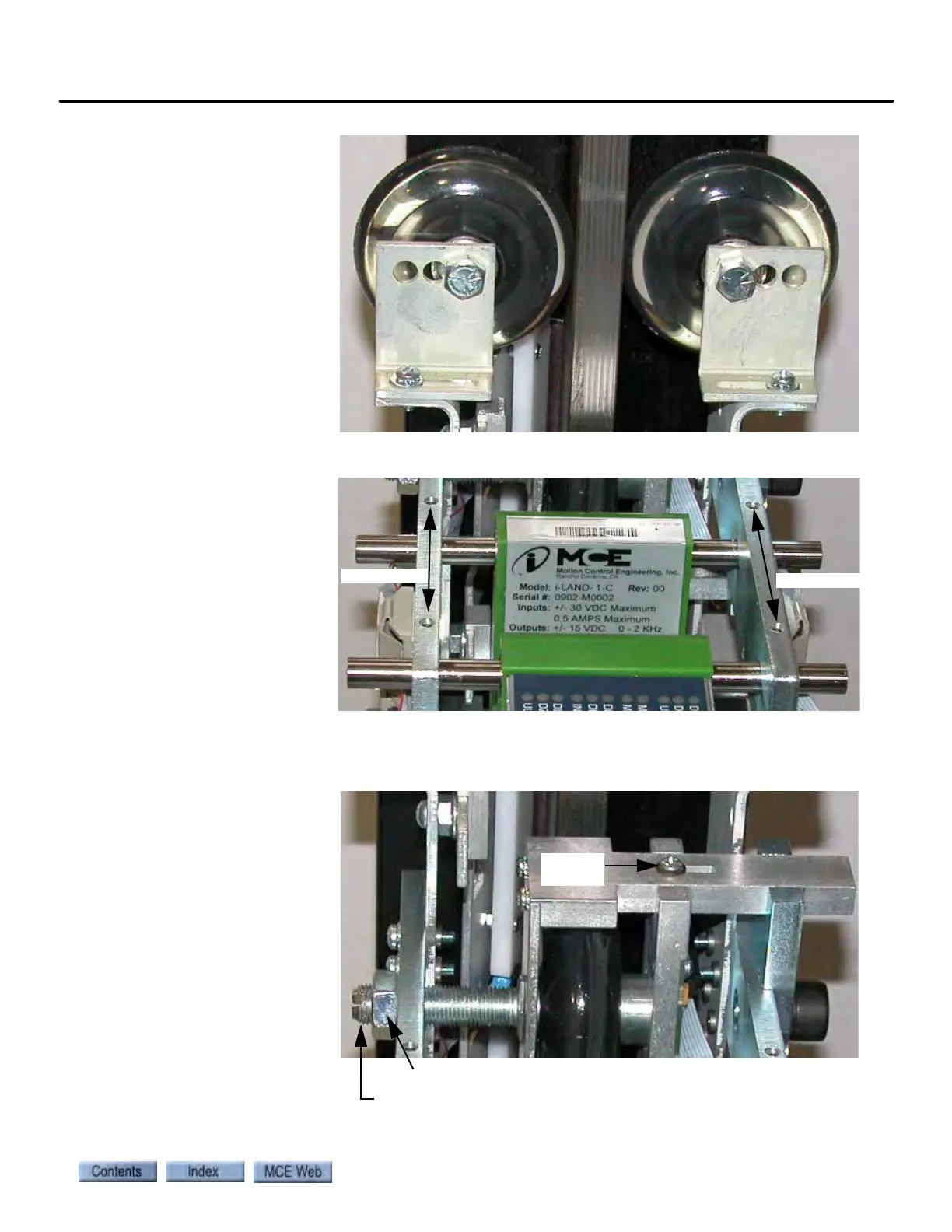

6. For a front door
only iLand Com-
pact (iLand-1-C),
adjust the guide
rollers so that
the Leveling
Sensor is cen-
tered on the
magnet (see Fig-
ures 4 and 5.
Ensure that the
Guide Rollers
are snug against
the rail.
7. For a front and
rear door iLand
Compact (iLand
2-C), it may be
necessary to
adjust both the
Guide Rollers
(Step 6) and the
Carrier Arms in
order to get both
Leveling Sen-
sors centered on
their respective
magnets. Loosen the Carrier Arm set screws and move the arms closer together or far-
ther apart (see also Figure 7).
8. Once the Level-
ing Sensors are
centered on their
respective mag-
nets, adjust the
Position Encoder
Wheel so that it
is centered on
the rail. Loosen
the lock nut and
adjust the screw.
Then retighten
the lock nut.
Set screws
Set screws
Lock nut
Centering adjustment screw
DO NOT
ADJUST
