System Options
5-64 Manual # 42-02-7223
If the distance between where the target bracket attaches to the floor and the center of the floor
is greater than 20% of distance “A” (see Figure 8.2), an alternate mounting method may pro-
duce better results.
• Example: If distance “A” is 10'
Then 20% of 10' is 2'
Therefore, if the target bracket attaches to floor more than 2' from the center of the channel, an alter-
nate method of mounting is suggested (see Figure 8.5).

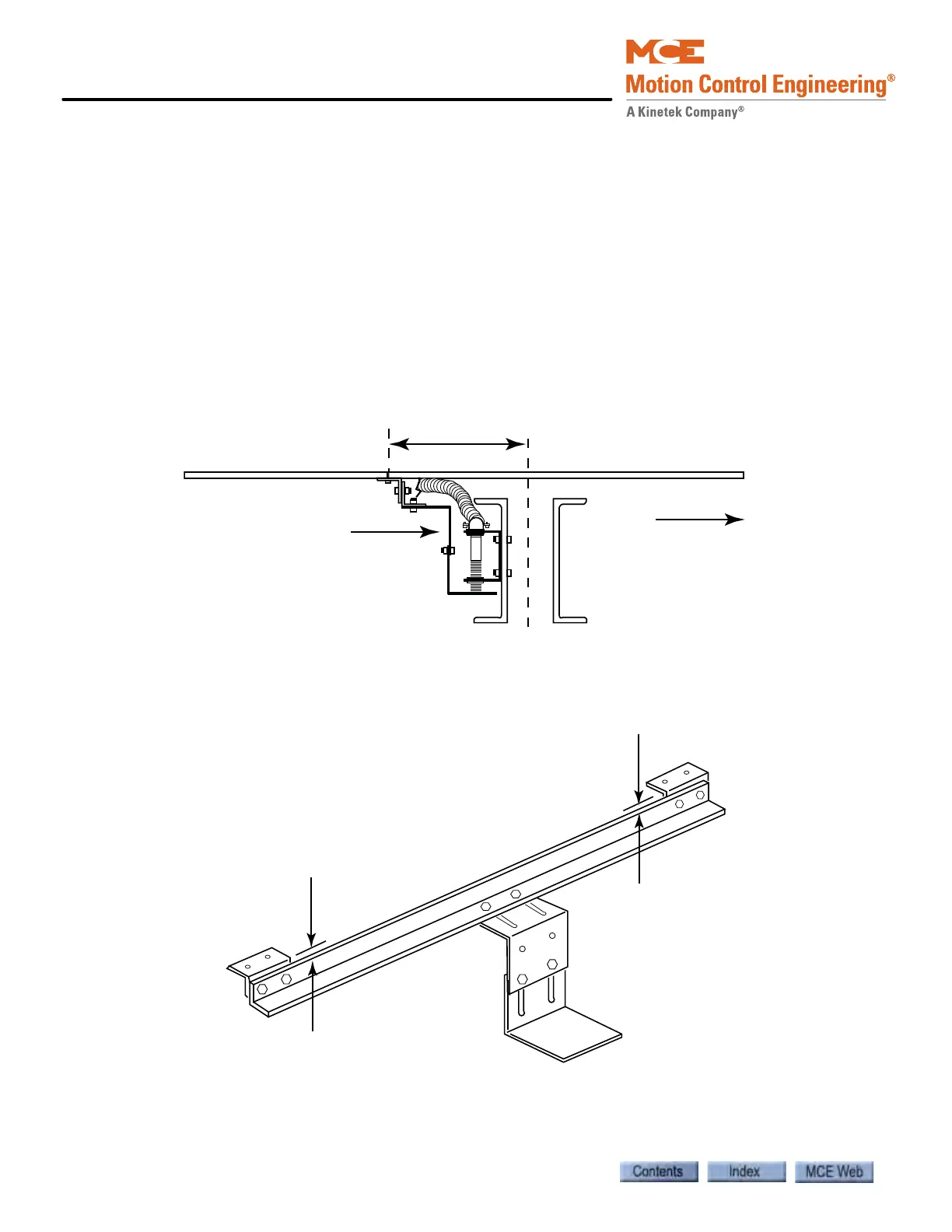

Figure 5.5 Alternate Mounting Location for Sensor and Target
Figure 5.6 Typical Support Assembly for Target Bracket
Front of Car
Center of Floor
Center of Gravity
Alternate location for
sensor and target on
outside of channel
When mounting inside the channel is too great a percentage (+20%) of Distance ‘A’
try mounting sensor outside the channel.
3/8”
The dimension shown must be a
minimum of 3/8” to provide clear-
ance for floor to sag
