iView - Controller View
9-126 Manual # 42-02-7223
The method of assigning inputs and outputs to terminals is the same for Serial COP boards as
for Multiple Input AC (MIAC) and Multiple Output Relay (MOR) boards. Select a particular sig-
nal from the column and drag it to the desired connector pin box. Except for car call button
inputs and lamp outputs (shown below), each input or output may be assigned to only a single
terminal on the Serial COP boards.
The Terminal Configuration dialog reassigns the signal assignments to circuit board pins in control-
ler SOFTWARE. You must also make the correct hard connections to avoid damage or incorrect oper-
ation.

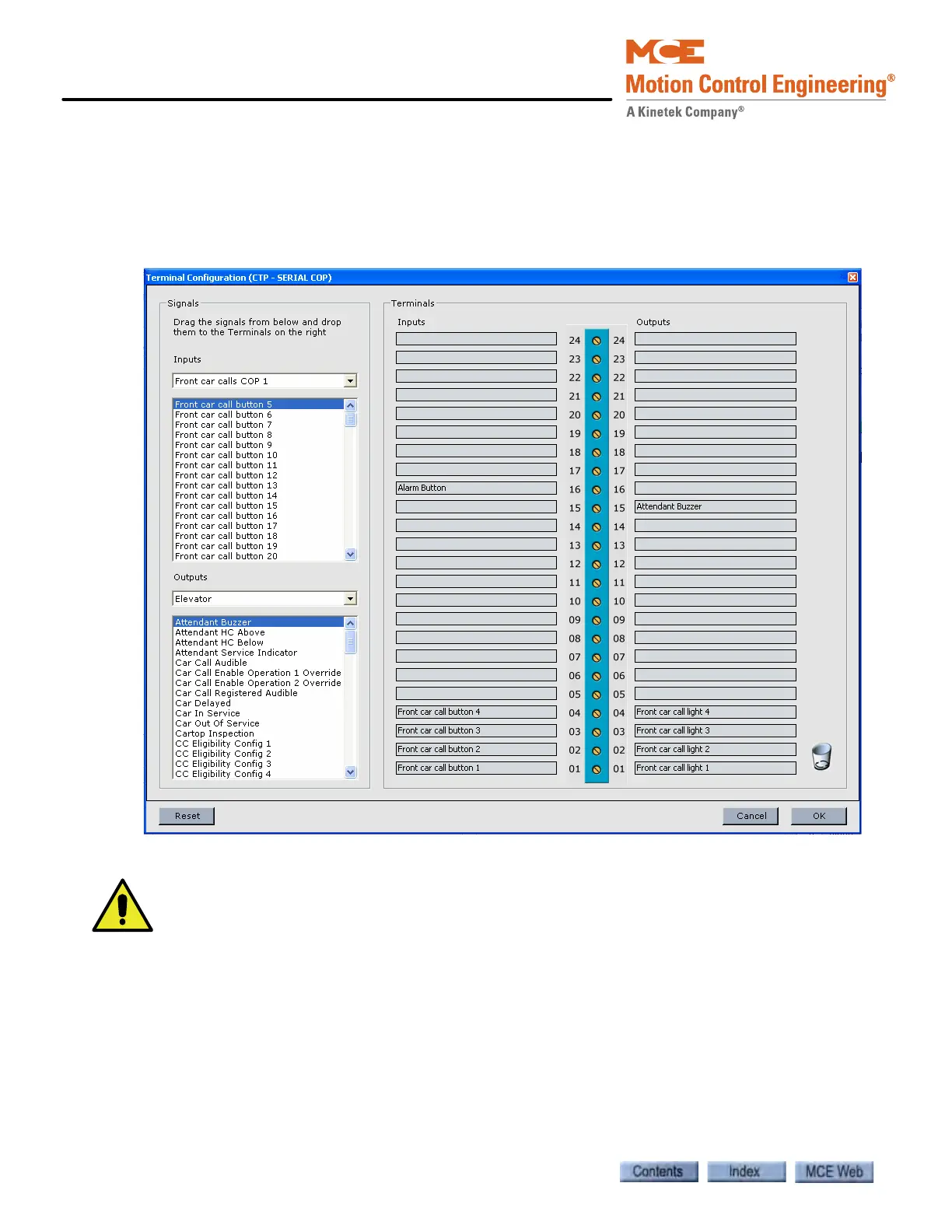

Terminal Configuration (CTP - SERIAL COP)
