Configuration - I/O Boards
9-125
9
iControl DC
5. For the desired terminal, select On or Off from the drop down list next to the indicator
LED to bypass the current state and assert the desired state.
6. You may set the state for additional terminals on this board or select a different board
on which to set terminal assertions.
7. The Assert Session will end when one of the following occurs; the timer elapses, the
FAULT/FUNCTION BYPASS switch is set to OFF or the Assert Session Cancel button is
clicked. When the session has ended, all I/O are returned to the default Pass state.

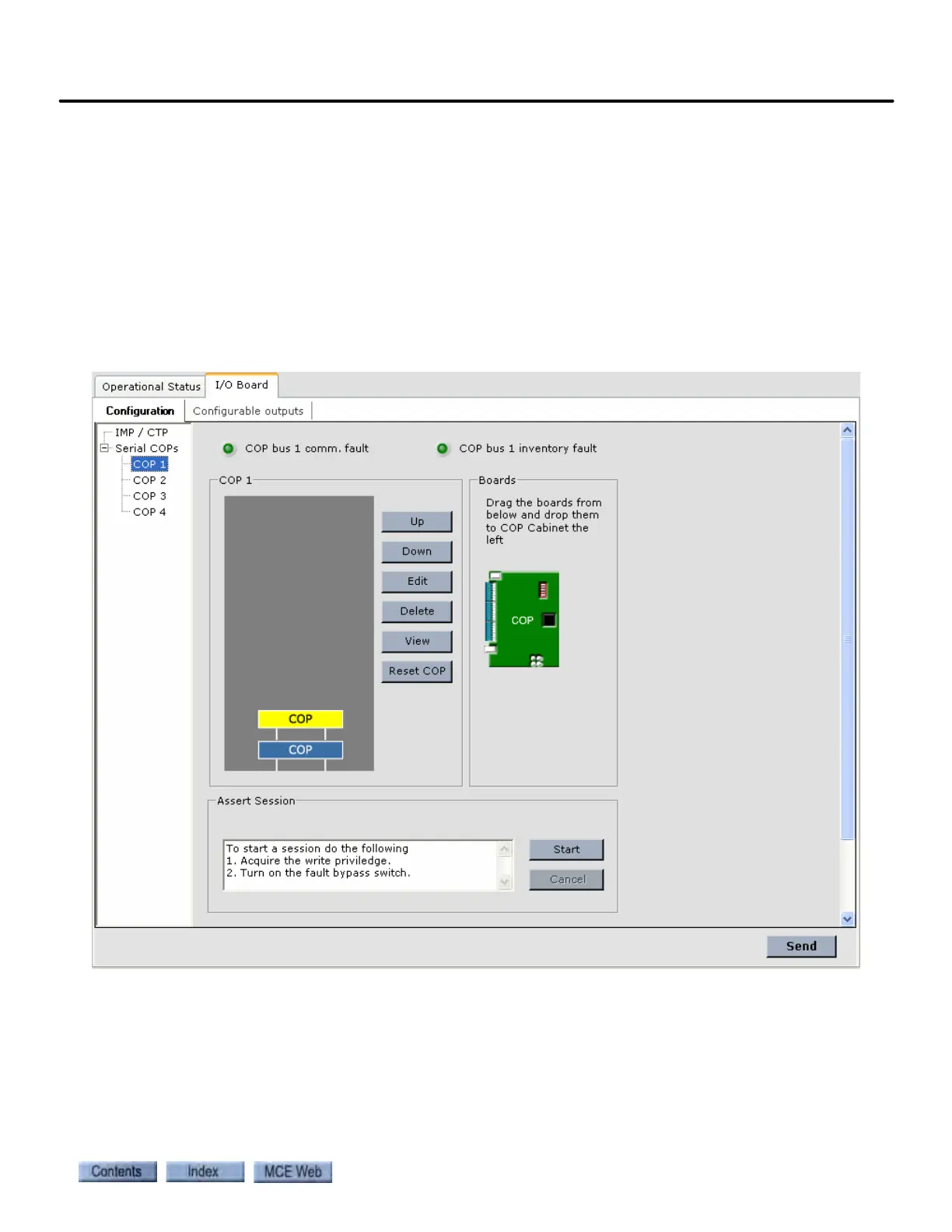

Serial COPs - COP1 thru COP4 In the window shown below, a Serial Car Operating
Panel (ICE-COP) board is selected for editing. Note: COP4 is not available on Cartop software
version 1.1.15 of greater.
• Edit button: When the edit button is clicked, the Terminal Configuration (CTP - SERIAL
COP) dialog is displayed (see page 9-126).
• View button: Use this button to view the current state (On or Off) of the inputs and out-
puts and to assert a specific state (See “I/O Assert” on page 9-124.).
• Reset COP button: This button causes the processor on the ICE-COP board to reset.
