Construction Mode
2-38 Manual # 42-02-7223

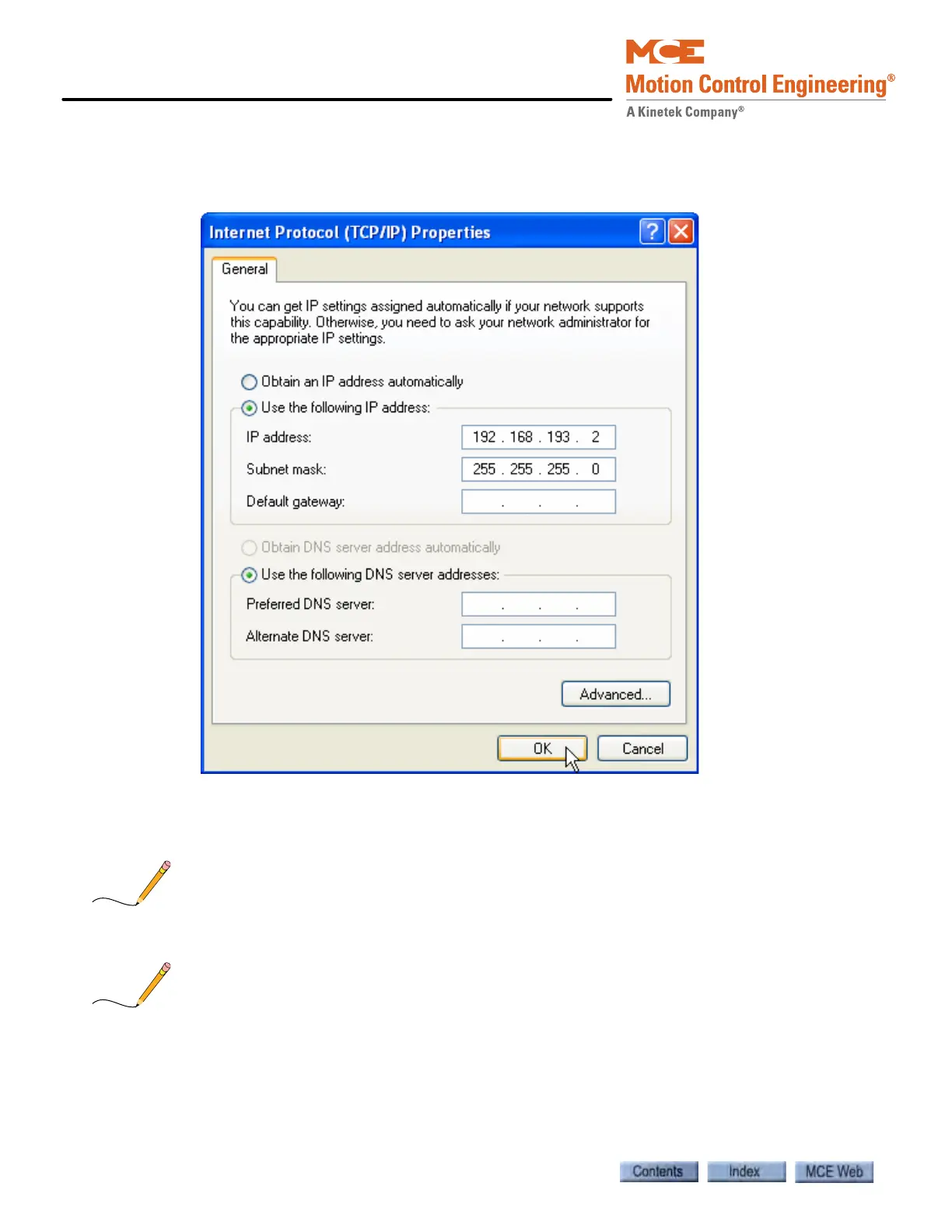

10. Set the IP Address to match the iBox EXCEPT FOR the last set of numbers. The #3 iBox
port is defaulted to 192.168.193.1. Typically, you can set your PC’s IP address to
192.168.193.2.
11. Set the Subnet Mask to 255.255.255.0.
12. Click OK and follow any instructions to save the changes you made.
Sample screens are Windows XP
TM
operating system.
It is important that a PC have only one IP address assigned. Click the Advanced button and ver-
ify that the PC is configured for only a single IP address (192.168.193.2). If there is more than
one IP address, highlight the additional IP address and then click Remove.
