MCE iControl User Manual

Setting Initial Operating Parameters
2-39
2
iControl DC

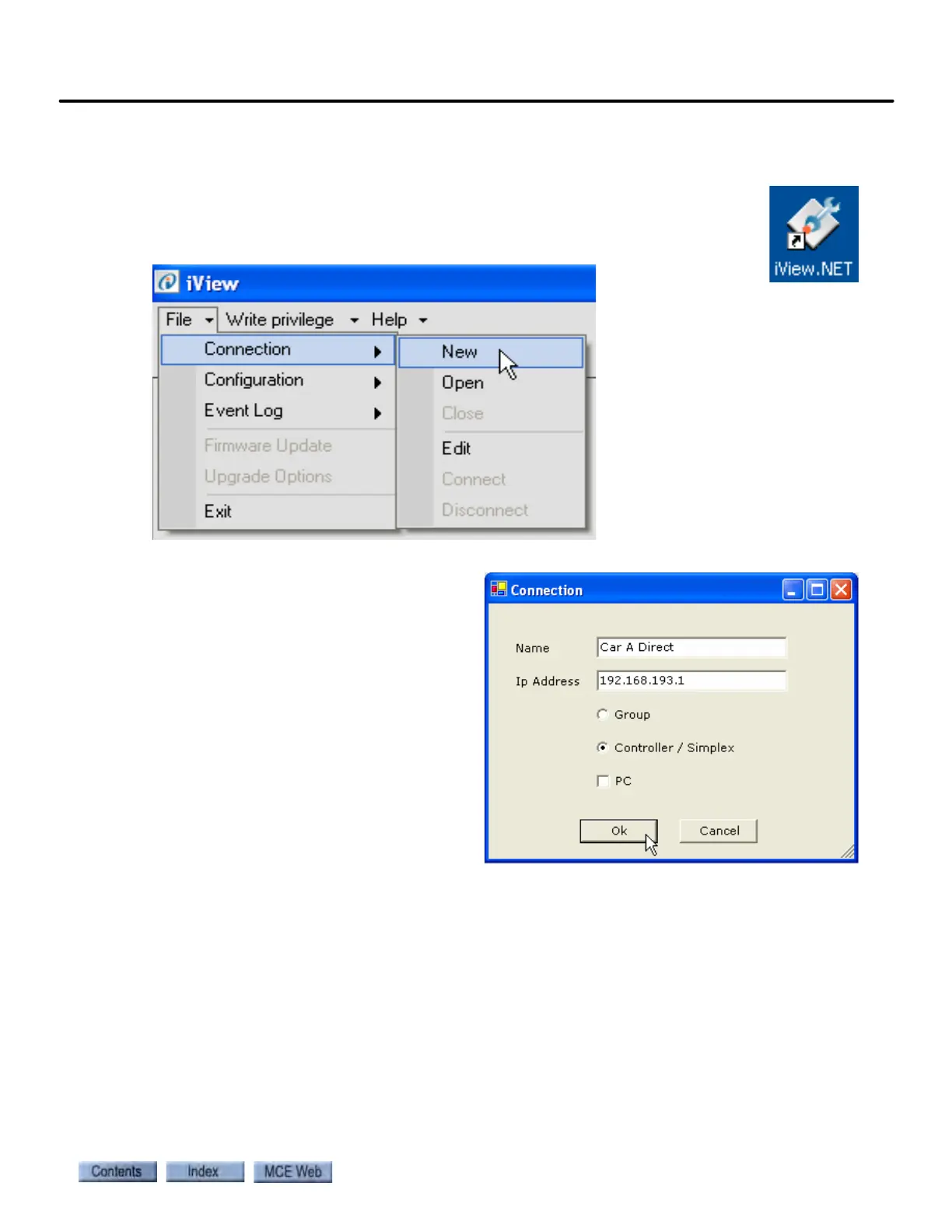

Creating a Direct Connection in iView Once you have set your computer TCP/IP
as described previously, you need to create a connection in iView.
1. Double-click the iView icon on your computer screen to launch iView.
2. Click File on the menu bar.
3. Select Connection and click New to open the Connection dialog.
4. Type in a name for the connection.
5. Enter the direct connection IP
Address for the iBox (192.168.193.1).
6. Select Controller/Simplex. If creat-
ing a connection to an iCue PC,
select Group and PC.
7. Click OK. The Save As dialog opens.
