(5) Post Insulating Procedurr es for 777 IDG and APU BACT12M( ) Terminals.
(a) Clean the terminal and the wire insulation area using a wiper and solvent.
(b) Using #320 to #150 emery cloth and a circumferential motion, lightly abrade 2.00 ±0.25
inches of the wire insulation from the end of the terminal to a dull finish on the bonding area
of cable jacket.
(c) Wipe off the loose particles with clean wiper and solvent. Do not touch cleaned areas with
fingers.
(d) Locate the post insulation materials that were assembled on the prepared wire.
(e) Install the Zone B insulation sleeve as follows:
NOTE: Zone A not used
1) Push the Zone B BACT63E insulation sleeve forward until the forward end of the sleeve is
aligned with the bend line of the terminal tongue. Refer to Figure 7.
2) Push the sleeve forward until the forward end of the sleeve is aligned with the bend line of
the terminal tongue. See Figure 7.

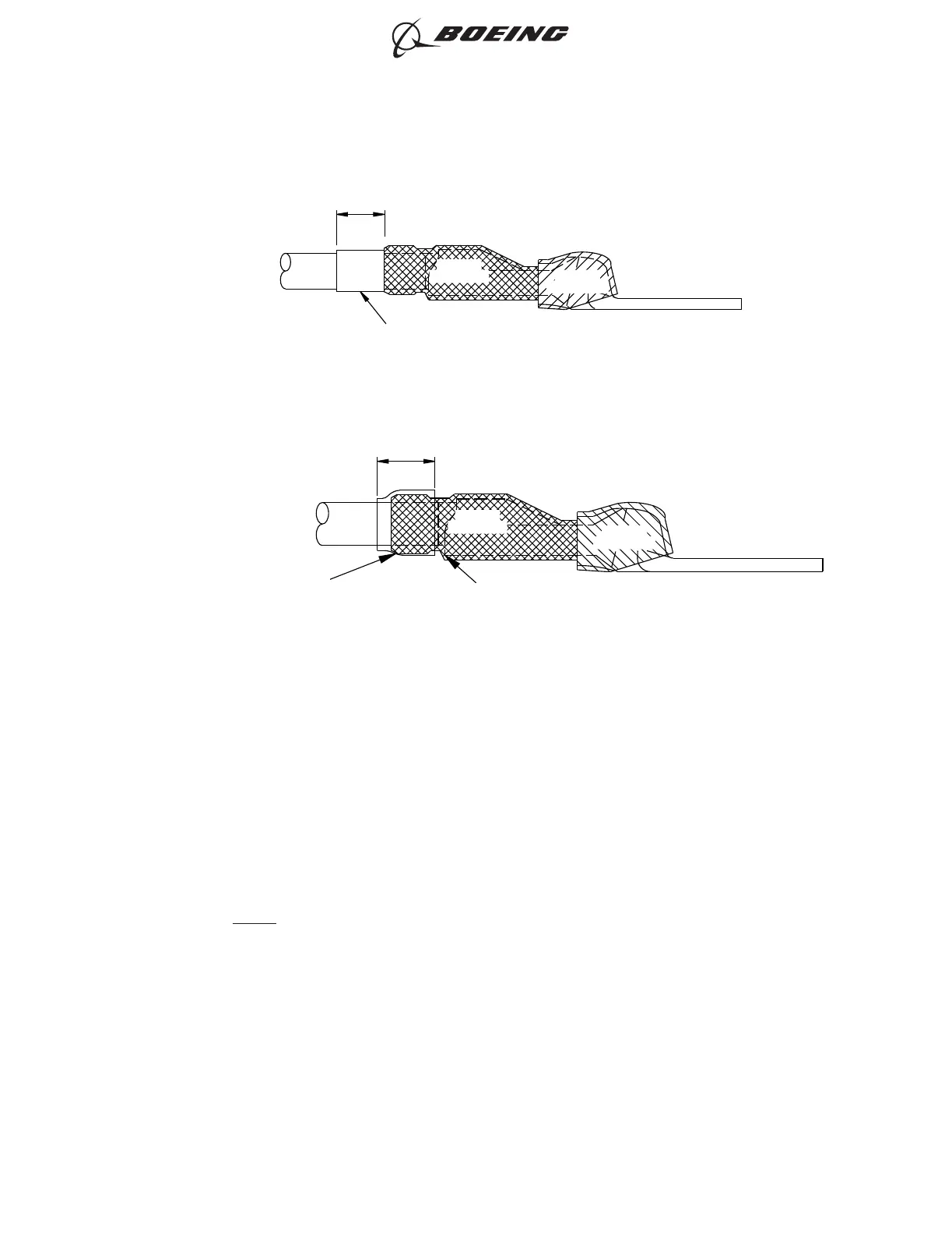

ZONE C
(A-A 59163)
ZONE B
(BACT63E)
APPROXIMATELY 1.0 INCH
LOCATION APPROXIMATELY AS SHOWN
PHASE IDENTIFICATION SLEEVE
2529451 S0000598156_V1
Installation of Generator Phase Identification Sleeve
Figure 5
ZONE C
(A-A 59163)
ZONE B
(BACT63E)
APPROXIMATELY 1.0 INCH
LOCATION APPROXIMATELY AS SHOWN
PHASE IDENTIFICATION
SLEEVE
REAR END OF THE TERMINAL LUG
2529454 S0000598157_V1
Installation of Generator Phase Identification Sleeve, Optional Location for Shield Breakout
Figure 6
ASSEMBLY OF TE/AMP NICKEL PLATED COPALUM TERMNAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-23
Page 8
Feb 15/2021D6-54446
