2) Put two layers of the 0.5 inch A-A-59163 on the transition barrel of the terminal lug. End
approximately as shown in Figure 9.
3) Align the forward end of each layer with the forward end of the transition barrel.
4) Extend the rear end of each layer a minimum of 0.5 inch rearward from the rear end of the
terminal lug.
5) Overlap each layer with itself by approximately 50%.
6) Wind the second layer of tape in the opposite direction of the first layer. Make sure that the
layers of tape extend on to the bottom surface of the tongue of the terminal lug.
(g) If a phase identification sleeve is required, install the phase identification sleeve in
accordance with Subject 20-10-14 and Figure 10. Make sure that the phase identification
sleeve does not overlap the rear edge of the terminal lug.
ZONE C
A-A 59163
ZONE B
BACT63( )
1.0 INCH
(REF)
PHASE IDENTIFICATION SLEEVE
BACT12M( ) TERMINAL
2529514 S0000598203_V1

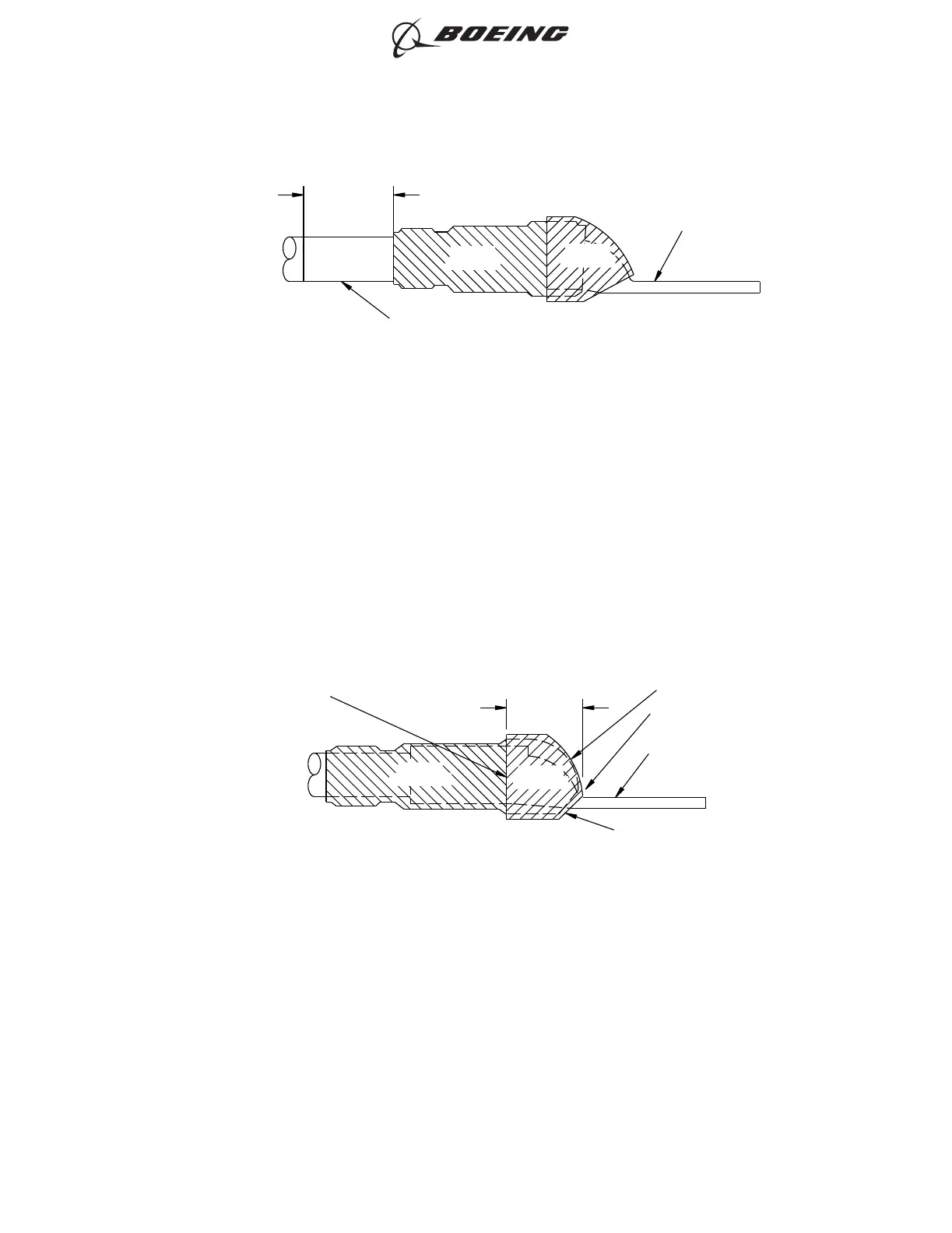

Installation of A-A 59163 Tape
Figure 9
ZONE C
A-A 59163
ZONE B
BACT63E( )
0.50-0.75
INCH
TWO LAYERS OF 0.5 WIDE
A-A-59163 TAPE WITH 50%
OVERLAP. STRAIGHT LINE
SHOWN ONLY FOR
PURPOSE OF
ILLUSTRATION
REAR END OF TERMINAL TONGUE
TOP AND BOTTOM SURFACE
OF TERMINAL TONGUE TO
BE FREE OF TAPE
BEND LINE OF
TERMINAL TONGUE
TRANSITION BARREL
2529472 S0000598211_V2
Installation of Phase Identification Sleeve on BACT12M( ) Terminals
Figure 10
