(a) Put the terminal on the stud.
(b) Put these washers on the stud in this order:
• An NAS1149F( )P flat washer
• An MS35338-( ) lock washer for a plain nut
• An BACW10EC( ) lock washer for a self locking nut.
(2) To install more than one terminal on the same stud, refer to Figure 10 and Table 4.
Put these washers on the stud in this order:
• An NAS1149F( )P flat washer
• An MS35338-( ) lock washer for a plain nut
• An BACW10EC( ) lock washer for a self locking nut.
A SINGLE TERMINAL AND A
SELF-LOCKING NUT
A SINGLE TERMINAL AND A
PLAIN NUT
LOCK WASHER
BACW10EC( )
SELF-LOCKING NUT
BACN10JC( ) OR
MS21042L( )
FLAT WASHER
NAS1149F( )P
LOCK WASHER
MS35338-( )
PLAIN NUT
MS35649-( ) OR
MS35650-( )
FLAT WASHER
NAS1149F( )P
2566376 S0000614066_V1

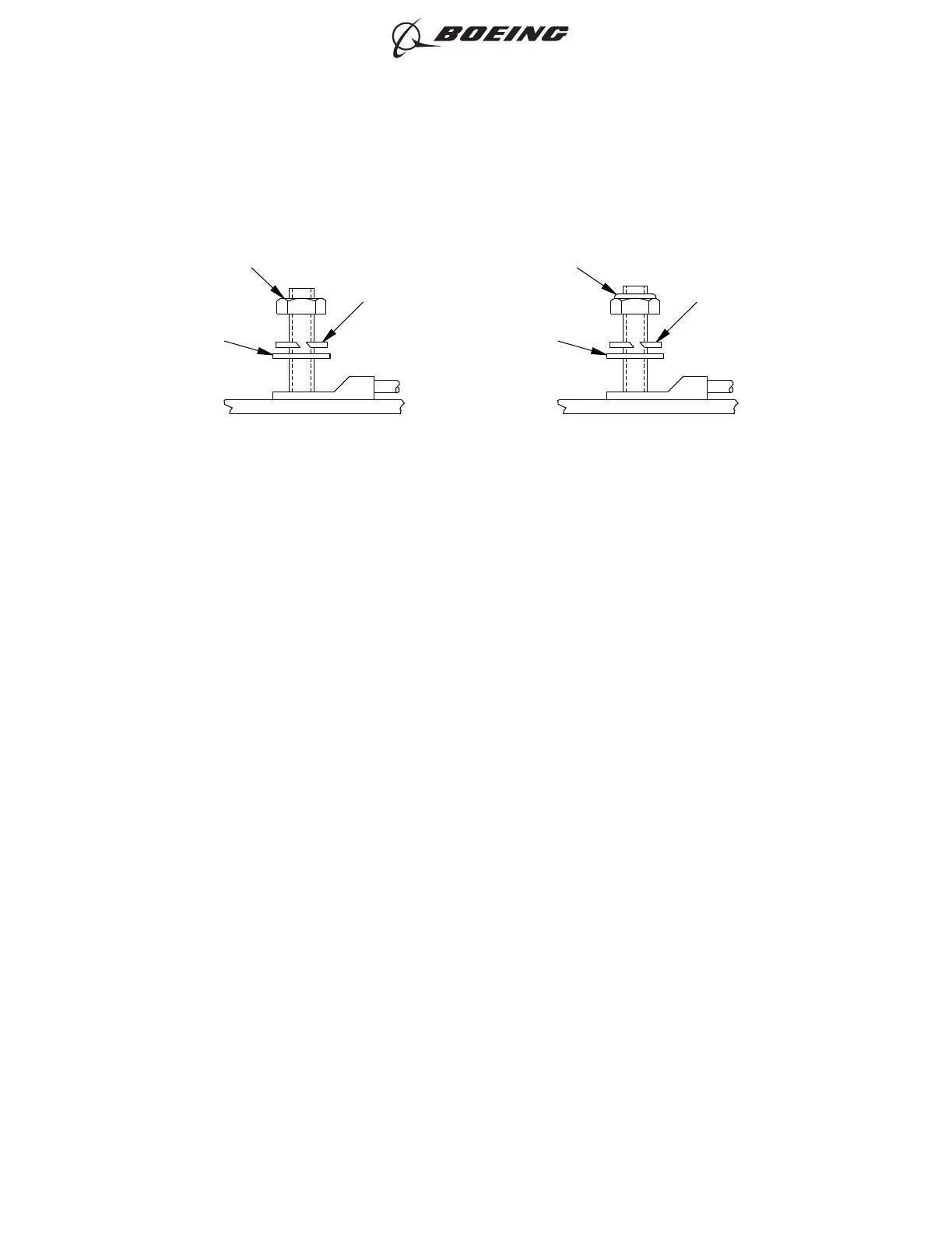

INSTALLATION OF A SINGLE TERMINAL
Figure 9
ELECTRICAL CONNECTION OF EQUIPMENT AND INSTALLATION OF TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-00
Page 12
Jun 15/2017D6-54446
