(7) Crimp the terminal lug.
Make sure that:
• All of the strands of the conductor are in the crimp barrel
• The end of the conductor extends 0.06 ± 0.03 inch farther than the end of the crimp barrel
• If the terminal lug has an insulation grip, the end of the wire insulation is in the insulation
grip of the terminal lug
• If the terminal lug has an insulation grip, the crimp tool is adjusted to give the correct
insulation support. Refer to Paragraph 2.B.
• If the terminal lug does not have an insulation grip, the maximum distance from the end of
the wire insulation of a single wire to the end of the crimp barrel is 0.12 inch for AWG 10 and
smaller, and 0.25 inch for AWG 8 and larger
• The clearance from the end of the conductor is sufficent for the installation of the washer
and the nut.
(8) If a heat shrinkable sleeve is on the wire:
(a) For terminal lugs on AWG 10 or smaller wire, push the sleeve over the terminal lug until the
end of the sleeve is 1/16 inch ±1/16 inch from the forward end of the crimp barrel. Refer to
Figure 23.
(b) For terminal lugs on AWG 8 or larger wire, push the sleeve over the terminal lug until the
end of the sleeve is 1/4 inch ±1/16 inch from the rear edge of the stud hole. Refer to Figure
24.

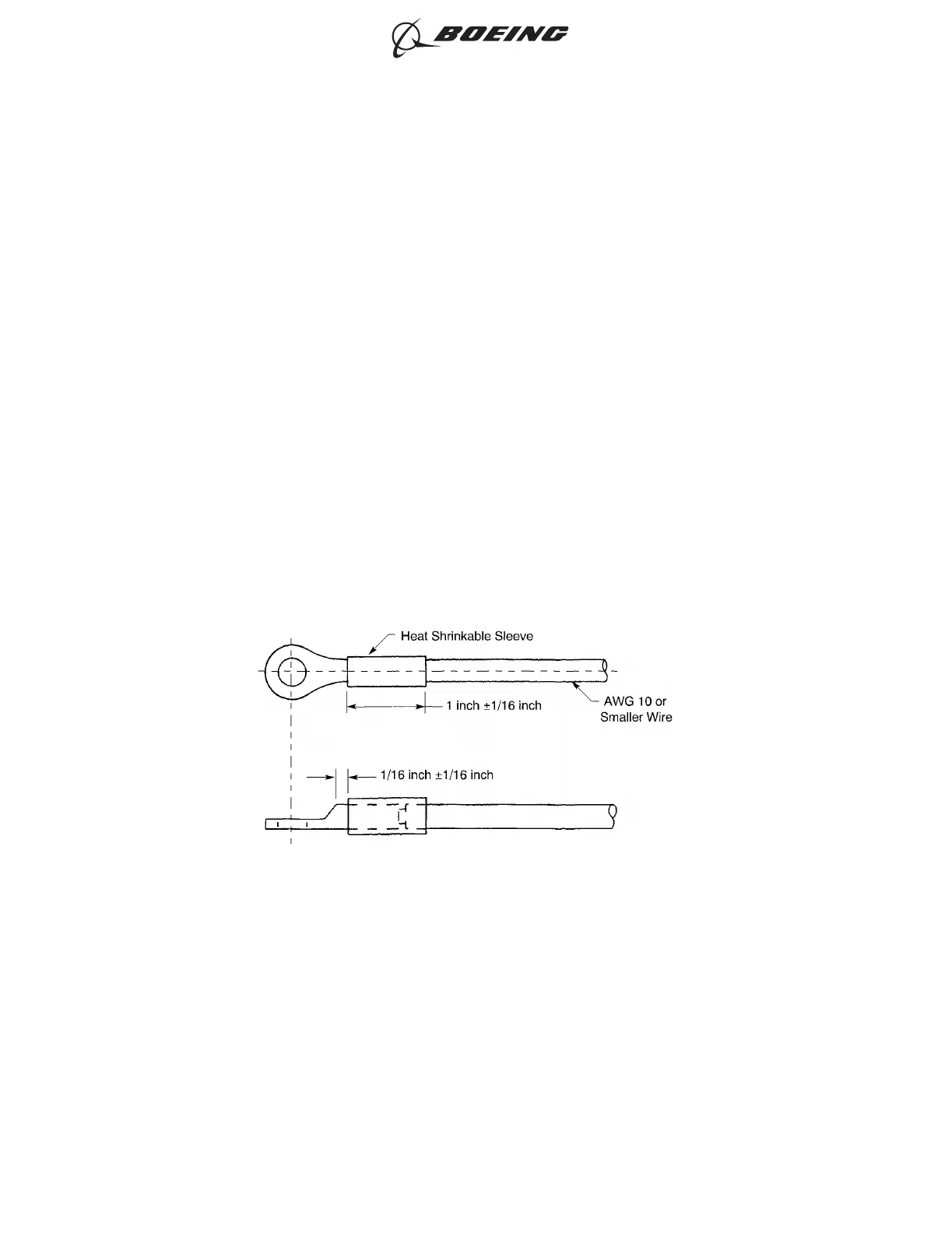

POSITION OF THE SLEEVE FOR SIZE AWG 10 OR SMALLER WIRE
Figure 23
ASSEMBLY OF INSULATED AND UNINSULATED TERMINAL LUGS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-11
Page 73
Feb 15/2016D6-54446
