Table 61
INSULATION REMOVAL LENGTH
Parallel Splice Part Number
Insulation Removal Length L
(inch)
Target Tolerance
D-609-04 0.28 ±0.03
D-609-05 0.28 ±0.03
D-609-14 0.28 ±0.03
34137 0.34 ±0.03
34138 0.34 ±0.03
(5) Put the splice in the crimp tool.
(6) If the splice has a seam, align the seam opposite the indenter. Refer to Figure 20.
(7) Hold the splice in position with light pressure.
(8) Put each wire in the same end of the splice. Refer to Figure 21.
Make sure that the distance from the end of the wire insulation to the forward end of the splice is:
• 0.12 inch ±0.12 inch for wires AWG 10 and smaller
• 0.18 inch ±0.18 inch for wires AWG 8 and larger.

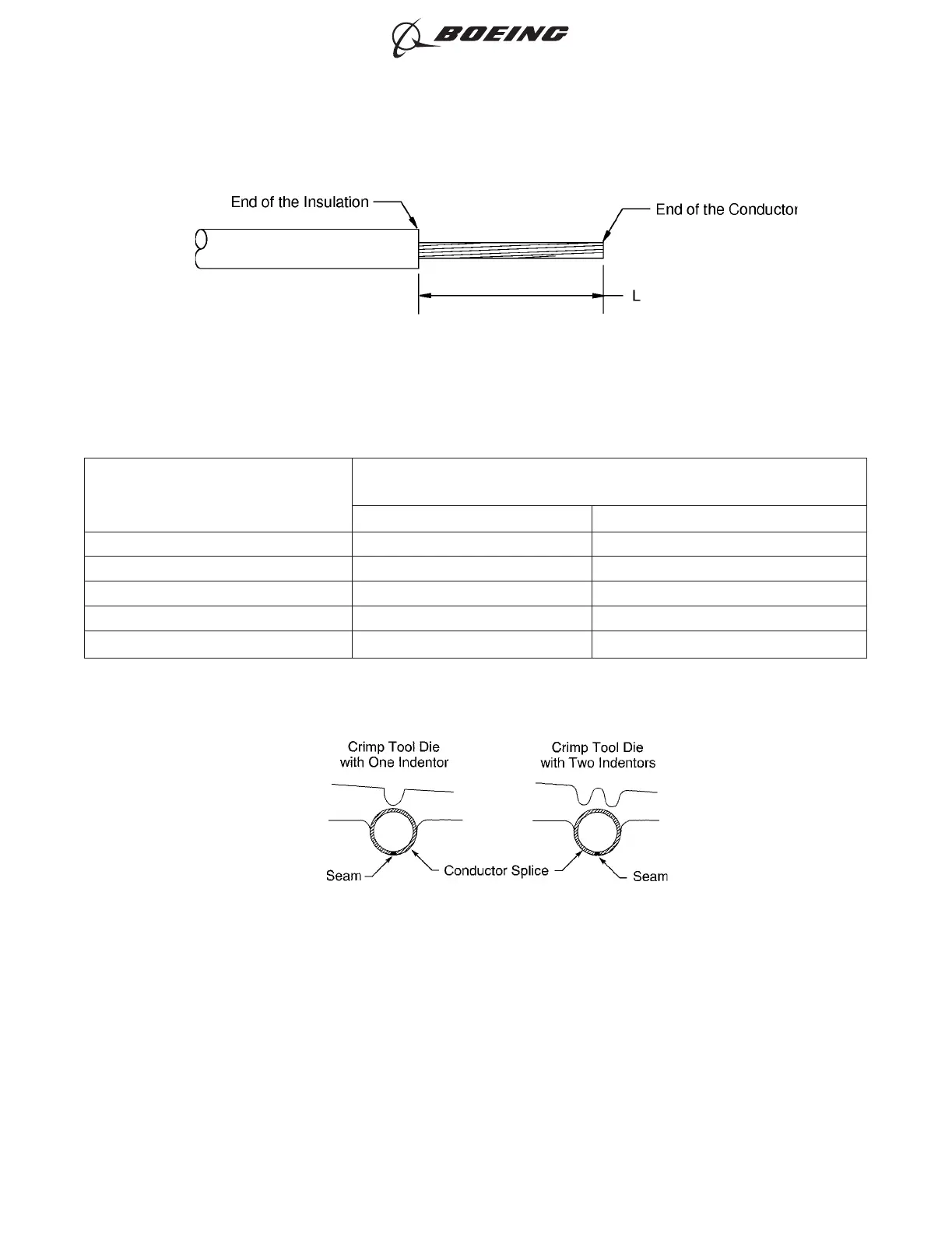

INSULATION REMOVAL LENGTH
Figure 19
POSITION OF THE PARALLEL SPLICE IN THE CRIMP TOOL
Figure 20
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 64
Feb 15/2021D6-54446
