(d) Crimp the splice.
(8) Do Step 7.G.(7) again to assemble the other end of the butt splice.
(9) Align the center of the sleeve with the center of the butt splice. Refer to Figure 65 and Figure 66.
2447112 S00061545480_V1

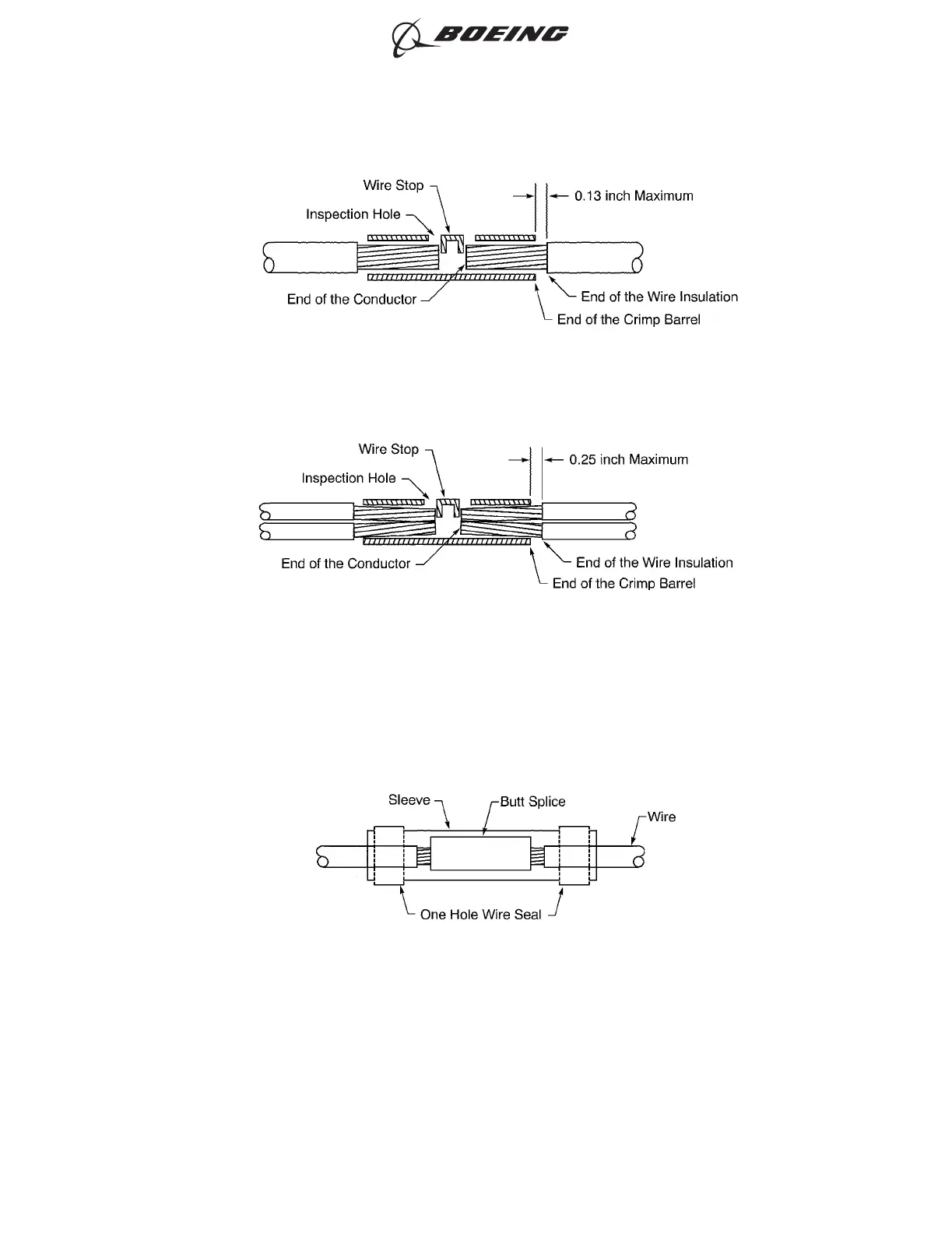

POSITION OF ONE WIRE IN THE BUTT SPLICE
Figure 63
2447113 S00061545481_V1
POSITION OF TWO WIRES IN THE BUTT SPLICE
Figure 64
2447114 S00061545482_V1
POSITION OF THE SLEEVE ON ONE WIRE
Figure 65
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 100
Feb 15/2021D6-54446
