(e) Crimp the splice.
(9) Do Step 7.H.(8) again to assemble the other end of the butt splice.
(10) Align the center of the sleeve with the center of the butt splice. Refer to Figure 71 and Figure 72.
(11) Shrink the sleeve into position. Refer to Subject 20-10-14.
Make sure that the seal material that comes out of the ends of the sleeve does not have rough
edges.

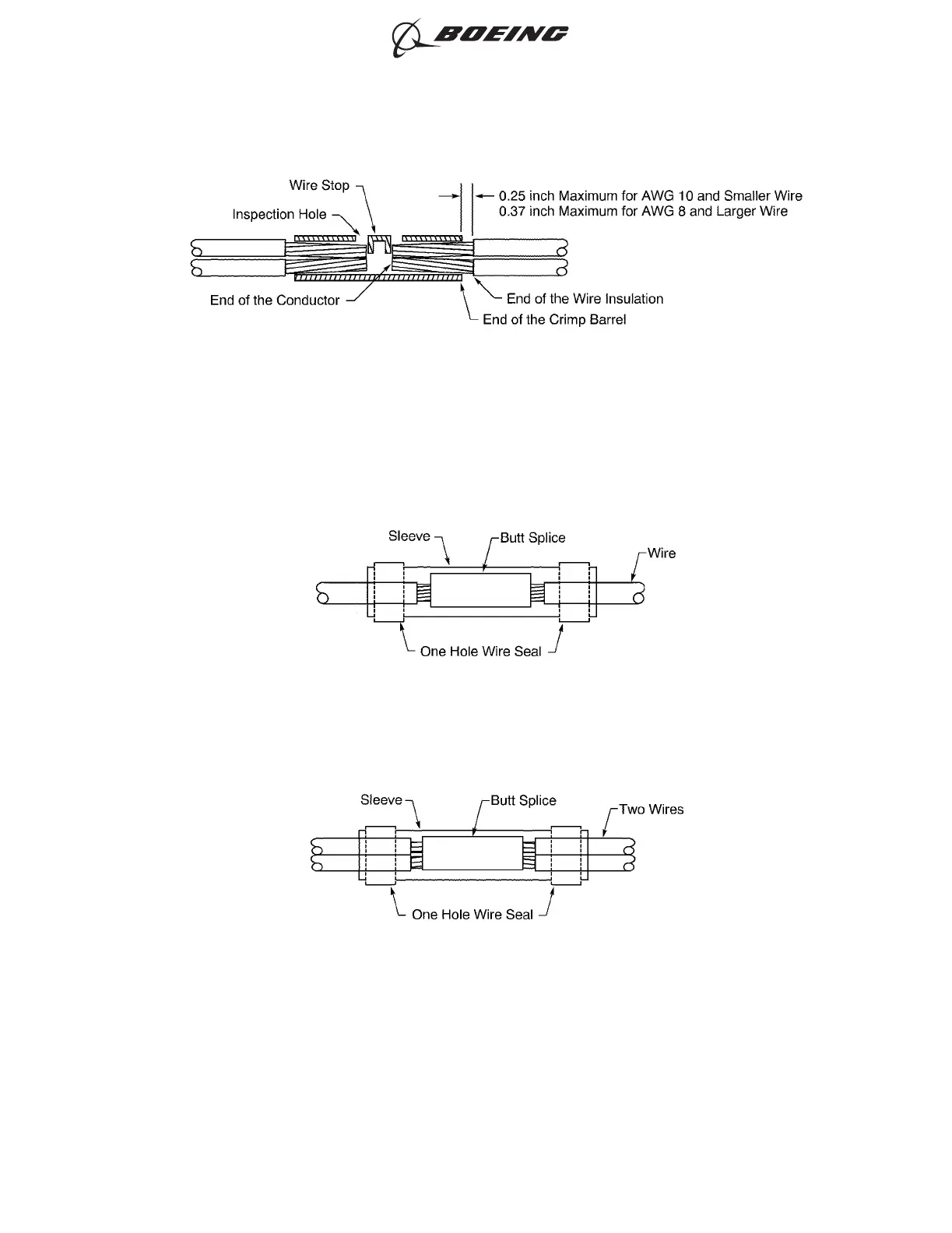

POSITION OF TWO WIRES IN THE BUTT SPLICE
Figure 70
POSITION OF THE SLEEVE ON ONE WIRE
Figure 71
POSITION OF THE SLEEVE ON TWO WIRES
Figure 72
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 104
Feb 15/2021D6-54446
