(c) Put the wire in the splice.
Refer to:
• Figure 135 for the position of the wire in the splice with the wire insulation in the
insulation grip
• Figure 136 for the position of the wire in the splice with the wire insulation out of the
insulation grip.
Make sure that:
• The end of the conductor can be seen in the inspection hole
• The end of the conductor does not make an overlap with the wire stop
• If the wire insulation can go into the insulation grip, the end of the wire insulation is in
the insulation grip
• If the wire insulation cannot go into the insulation grip, the end of the wire insulation is
a maximum of 0.13 inch from the end of the insulation grip
• The wire insulation is not in the crimp barrel.
NOTE: The insulation removal length can be changed to make these conditions
satisfactory.
(d) Crimp the splice.

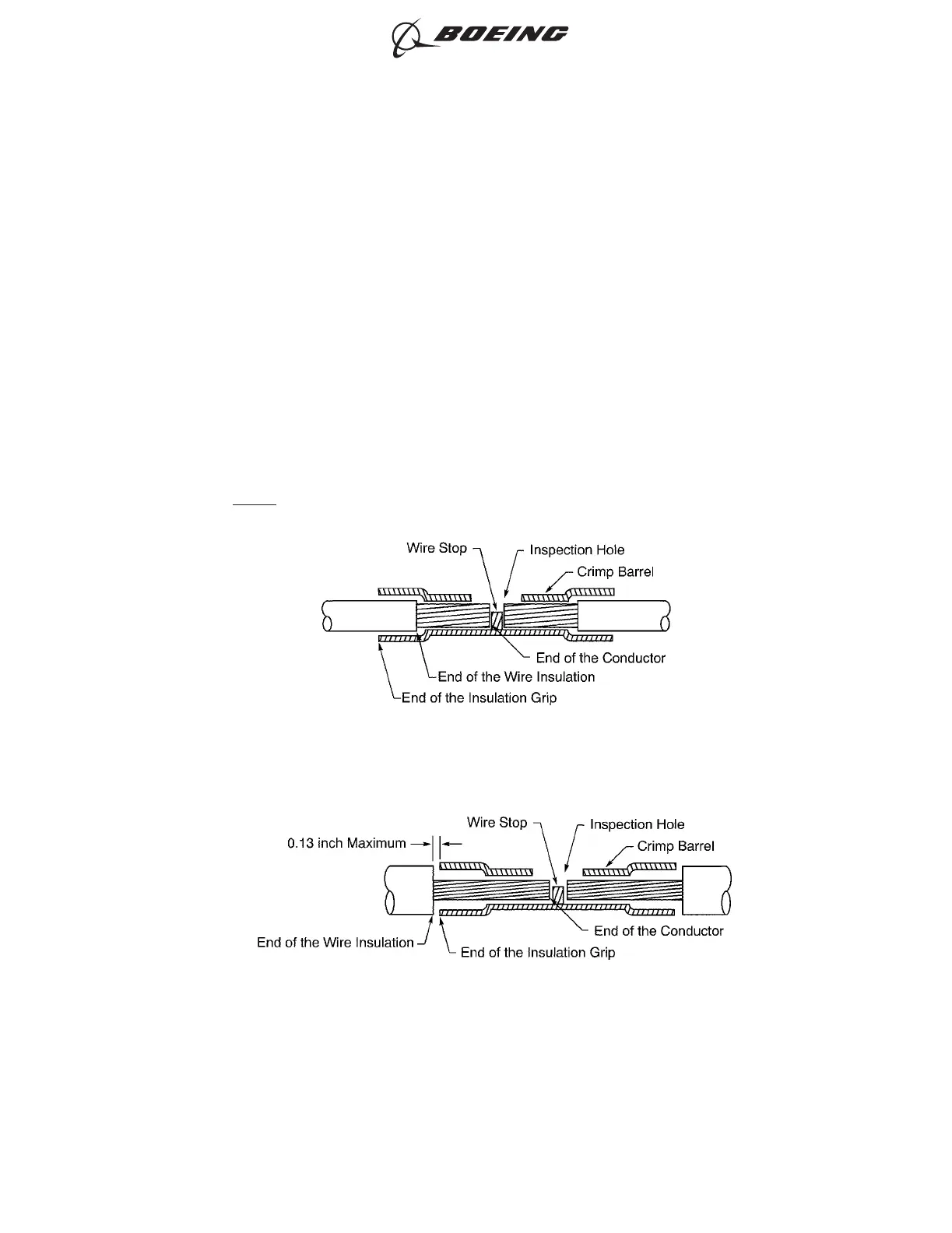

POSITION OF THE WIRE IN THE BUTT SPLICE WITH THE WIRE INSULATION IN THE INSULATION GRIP
Figure 135
POSITION OF THE WIRE IN THE BUTT SPLICE WITH THE WIRE INSULATION OUT OF THE INSULATION
GRIP
Figure 136
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 161
Jun 15/2021D6-54446
