(11) Measure the outer diameter of the shield assembly. Refer to Figure 192.
(12) Make a selection of the correct size of two Temperature Grade B or higher Shield-Kons from
Table 36.
(13) Assemble the splice of the shield:
(a) Make a selection of a Shield-Kon crimp tool from Table 48.
(b) Remove the temporary layer of tape around the end of each shield.
(c) Align one end of the shield sleeve material with the end of the shield. Refer to Figure 191.
(d) Put one of the Shield-Kons into the die of the crimp tool.
Make sure that the center of the Shield-Kon is aligned with the center of the die.
(e) Put the crimp tool and the Shield-Kon on the shield sleeve material.
Make sure that the rear end of the Shield-Kon is aligned with the ends of the shield and the
shield sleeve material.
(f) Crimp the Shield-Kon.
(g) Put the other Shield-Kon into the die of the crimp tool.
Make sure that the center of the Shield-Kon is aligned with the center of the die.
(h) Make the shield sleeve material smooth and tight.
(i) Put the crimp tool and the Shield-Kon on the other end of the shield sleeve material.
Make sure that the rear end of the Shield-Kon is aligned with the ends of the shield and the
shield sleeve material.

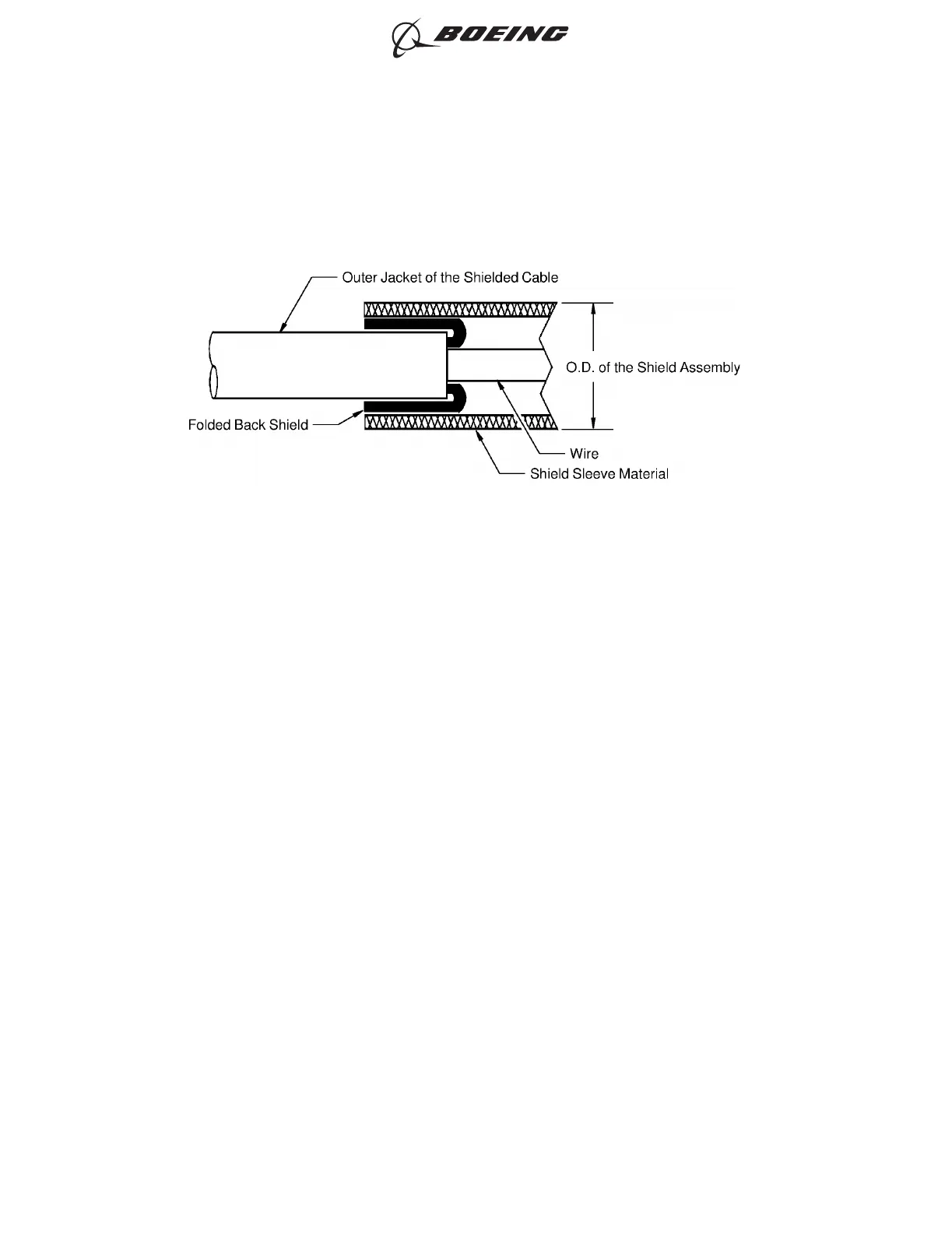

MEASUREMENT OF THE SHIELD ASSEMBLY OUTER DIAMETER
Figure 192
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 235
Jun 15/2021D6-54446
