Refer to Figure 194.
(1) Make a selection of a Temperature Grade B shield sleeve material from Table 57.
Make sure that the shield sleeve material has the smallest diameter that can go on the folded
back shield of the wire.
NOTE: For alternative shield sleeve materials, refer to Subject 20-00-11.
(2) Make a selection of a Temperature Grade B or higher insulation tape from Table 52.
(3) Make a selection of a Temperature Grade B or higher heat shrinkable sleeve from Table 51.
NOTE: For alternative heat shrinkable sleeves, refer to Subject 20-00-11.
(4) Prepare each end of the shielded wire.
Refer to:
• Figure 195
• Subject 20-00-15 for the outer jacket removal procedures.

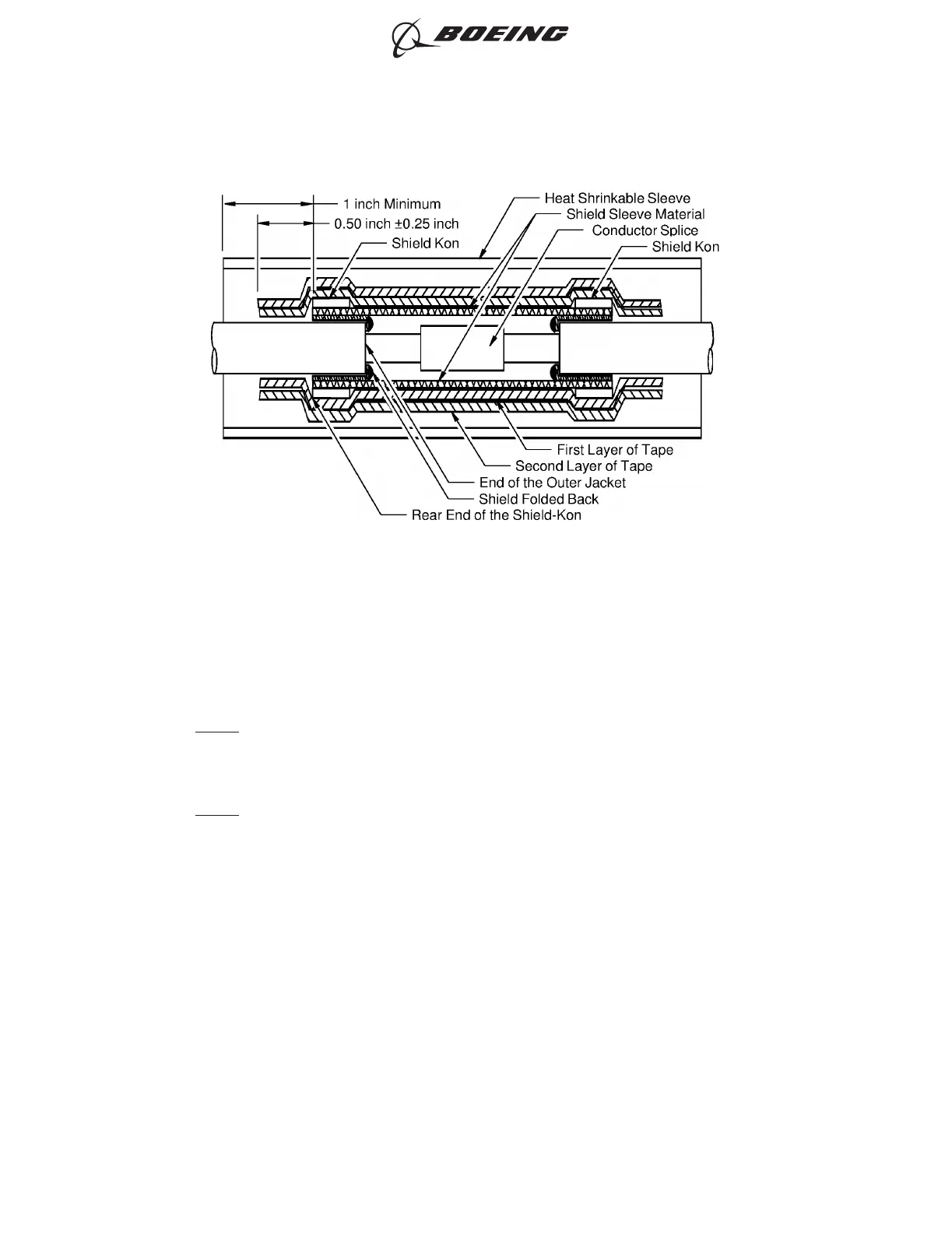

CONFIGURATION OF THE SPLICE ASSEMBLY
Figure 194
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 237
Jun 15/2021D6-54446
