(14) Measure the outer diameter of the shield assembly. Refer to Figure 197.
(15) Make a selection of the correct size of two Temperature Grade B or higher Shield-Kons from
Table 36.
(16) Assemble the splice of the shield:
(a) Make a selection of a Shield-Kon crimp tool from Table 48.
(b) Remove the temporary layer of tape around the end of each shield.
(c) Align one end of the shield sleeve material with the end of the shield. Refer to Figure 196.
(d) Put one of the Shield-Kons into the die of the crimp tool.
Make sure that the center of the Shield-Kon is aligned with the center of the die.

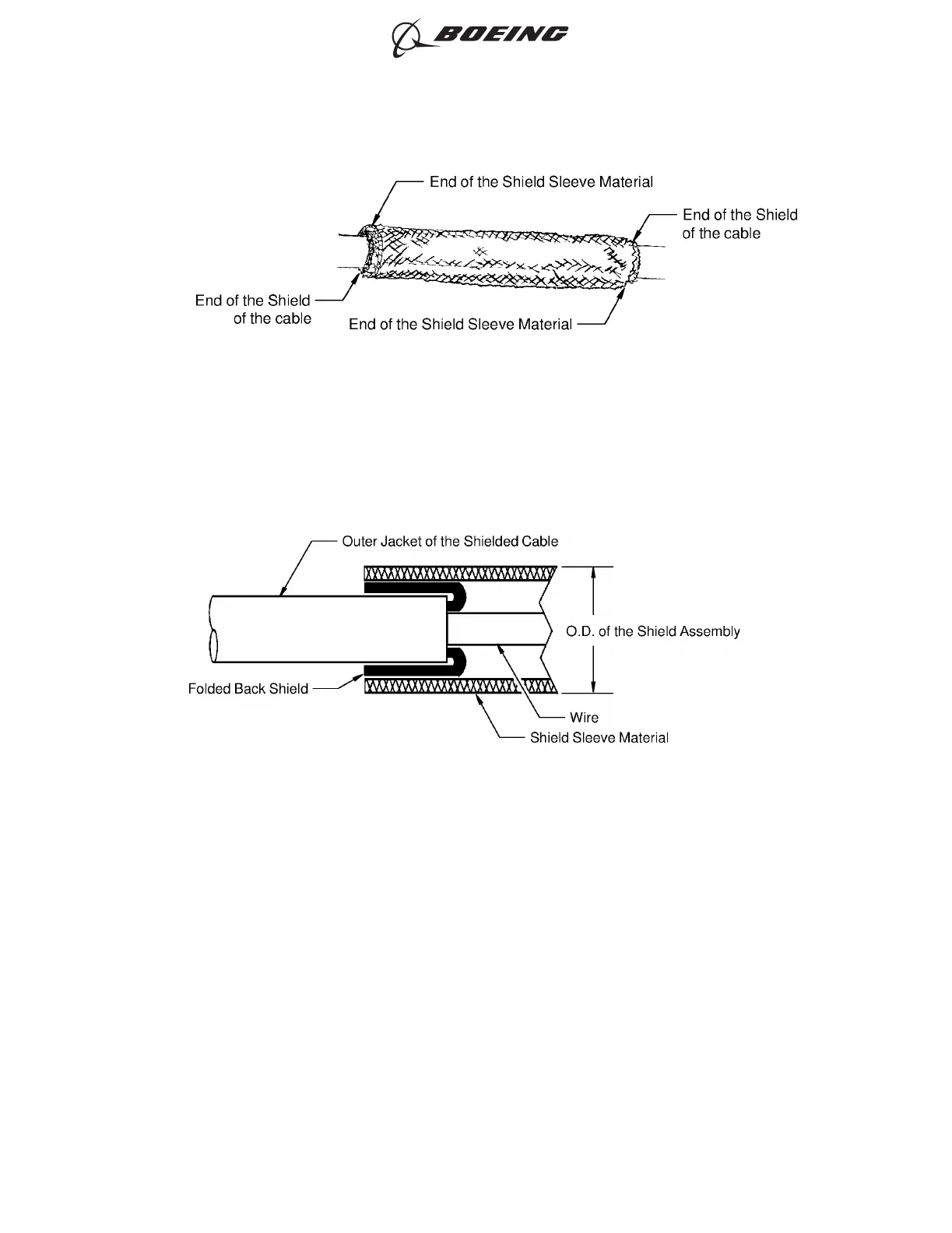

POSITION OF THE SHIELD SLEEVE MATERIAL ON THE WIRE
Figure 196
MEASUREMENT OF THE SHIELD ASSEMBLY OUTER DIAMETER
Figure 197
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 239
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
