• Figure 205
• Subject 20-00-15 for the outer jacket removal procedures.
Make sure that:
• The distance from the end of the outer jacket to the end of the shield is 0.5 inch to 1.0 inch
• The distance from the end of the shield to the center of the nearest sealed splice is 1.75
inches ±0.25 inch
• The distance from the center of a sealed splice on one wire to the center of the nearest
sealed splice on another wire is 2.38 inches ±0.25 inch.
(5) Fold the end of the shield against the outer jacket.
(6) Put a temporary layer of tape around the end of each shield to make sure that the shields do not
move.
(7) Cut the necessary length of the sleeve.
Make sure that the sleeve extends a minimum of 1 inch farther than the rear end of the
Shield-Kons on each end of the shield splice.
(8) Cut the necessary length of the shield sleeve material.
Make sure that the ends of the shield sleeve material extend farther than the rear end of the
Shield-Kons on each end of the shield splice.
(9) Put the sleeve on one end of the cable.

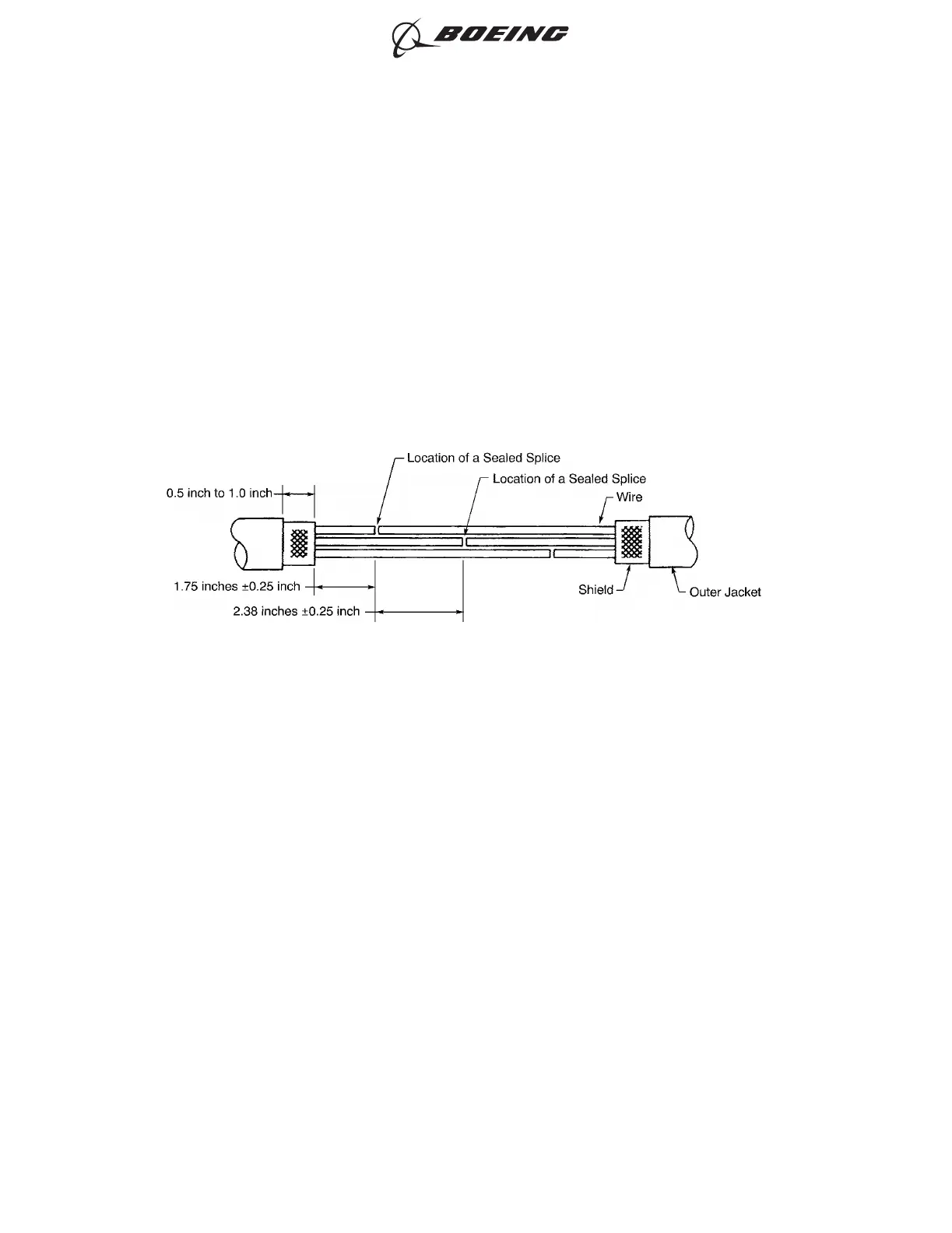

PREPARATION OF THE SHIELDED CABLE
Figure 205
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 246
Jun 15/2021D6-54446
