(7) If it is not specified, make a selection of a Temperature Grade D shield sleeve material from Table
57.
Make sure that the shield sleeve material has the smallest diameter that can go on the folded
back shield on the shield termination ring.
NOTE: For alternative shield sleeve materials, refer to Subject 20-00-11.
(8) Cut the necessary length of the shield sleeve material.
Make sure that the ends of the shield sleeve material extend a minimum of one inch farther than
the rear end of each shield termination ring.
(9) Put the shield sleeve material on the end of the other wire. Refer to Figure 214.
(10) If it is not specified, make a selection of an applicable Temperature Grade D sealed conductor
splice for one wire to one wire. Refer to Paragraph 9.A.
(11) Assemble the sealed conductor splice.
Refer to:
• The applicable procedure given in Paragraph 9.A.
• Figure 215.

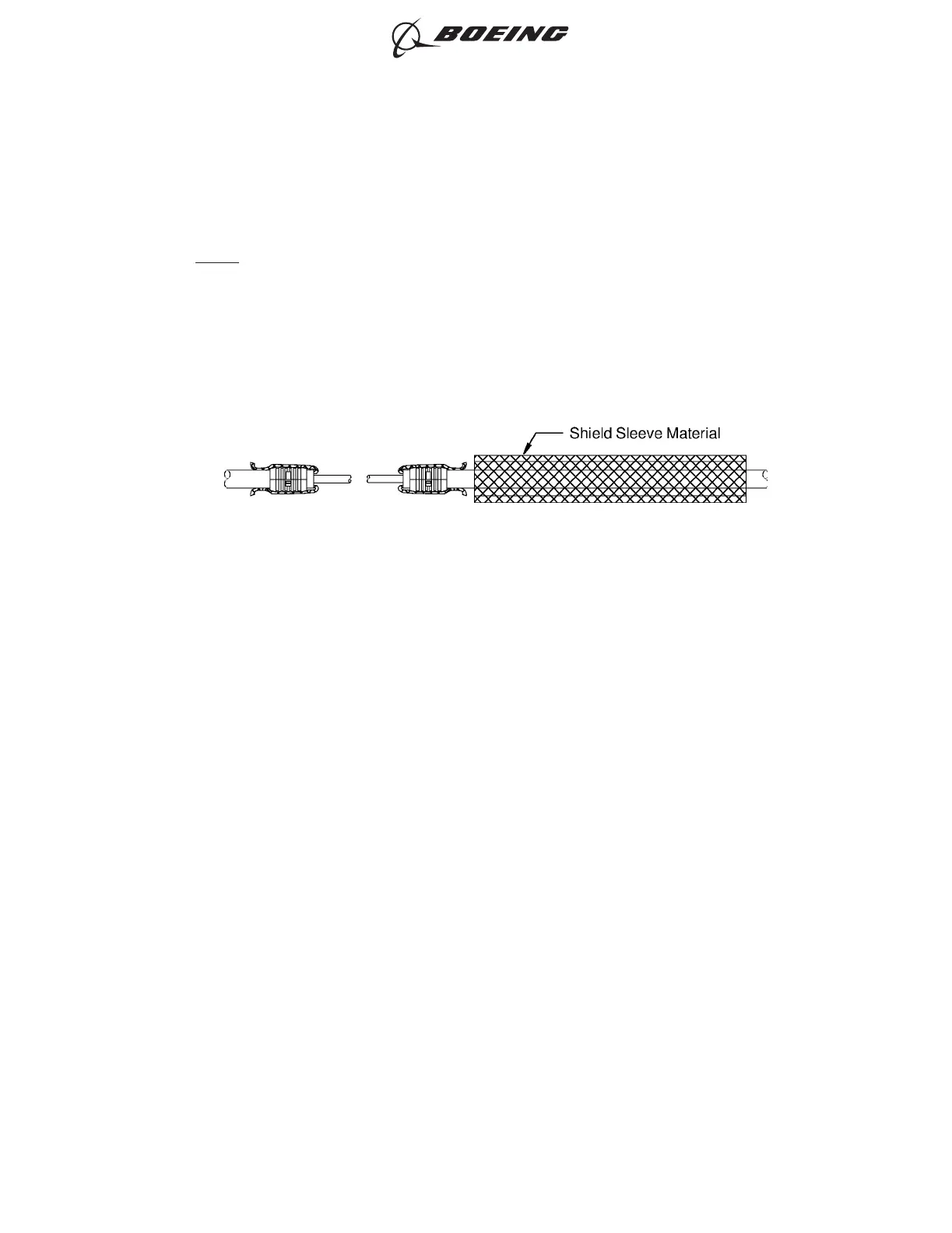

TEMPORARY POSITION OF THE SHIELD SLEEVE MATERIAL ON THE WIRE
Figure 214
