(5) Fold the end of the shield back on each shield termination ring. Refer to Figure 213.
Make sure that the ends of the shield material extend approximately one inch farther than the rear
end of each shield termination ring.
If it is necessary:
• The strands at the end of the shield can be moved apart to make it easier to put the shield
on the shield termination ring.
• An additional length of the jacket can be removed to give more shield length.
(6) Put a temporary layer of tape around the end of each shield to make sure that the shield does not
move.

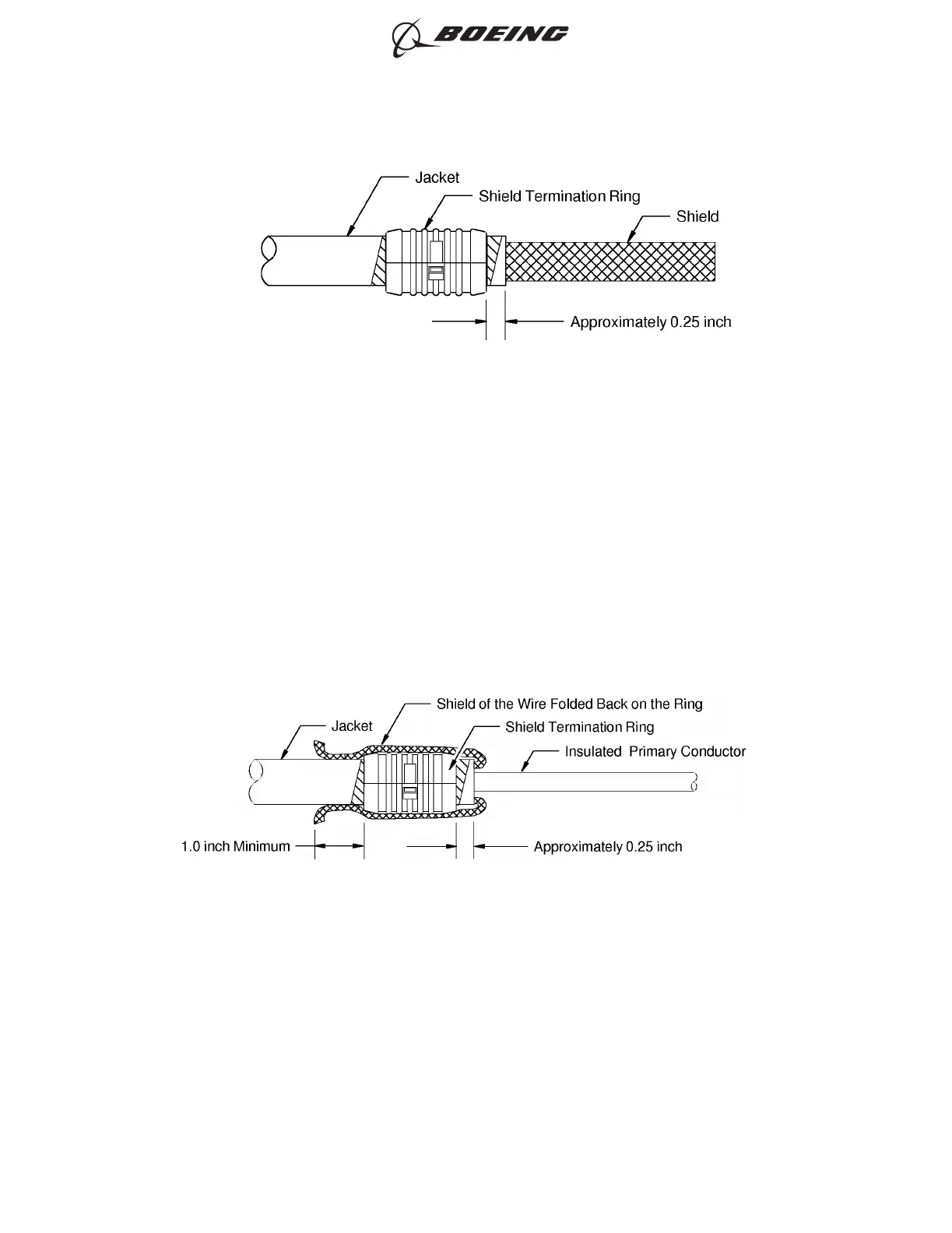

POSITION OF THE SHELD TERMINATION RING ON THE SHIELDED WIRE
Figure 212
SHIELD OF THE CABLE FOLDED BACK ON A SHELD TERMINATION RING
Figure 213
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 252
Jun 15/2021D6-54446
