(21) Tightly wind a second layer of Temperature Grade D Type II silicone tape on the splice assembly.
Refer to Figure 247.
2449371 S00061545552_V1

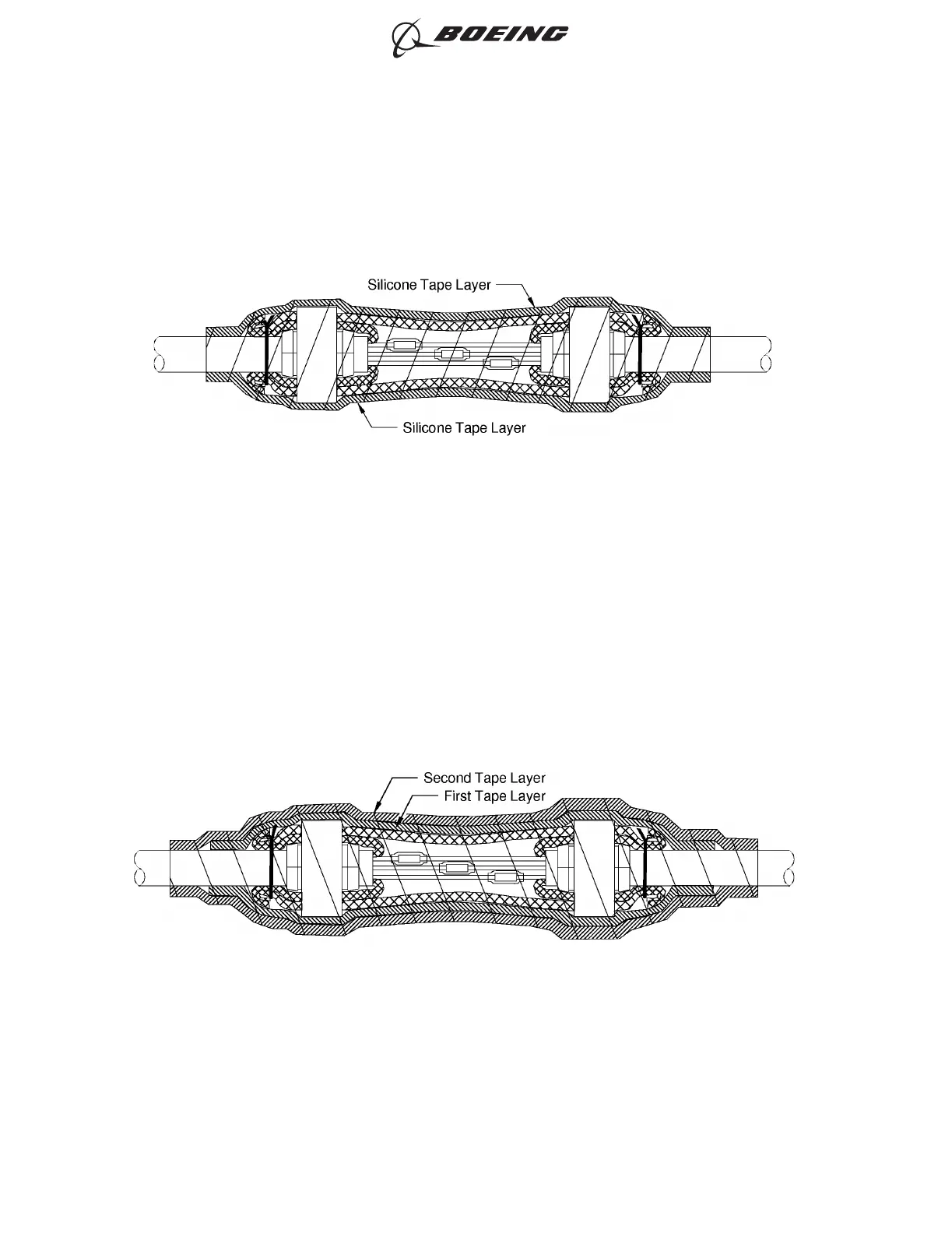

THE FIRST LAYER OF SILICONE TAPE ON THE SPLICE ASSEMBLY
Figure 246
2449372 S00061545553_V1
THE SECOND LAYER OF SILICONE TAPE ON THE SPLICE ASSEMBLY
Figure 247
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
