Make sure that the layer of tape:
• Starts 1 inch minimum farther than where the first layer of tape stops
• Stops 1 inch minimum farther than where the first layer of tape starts
• The tape makes approximately a 50 percent overlap with itself
• The tape makes approximately a 100 percent overlap at the ends.
(22) Assemble a lacing tape wire harness tie on each end of the splice assembly approximately 0.5
inch to 0.7 inch from the end of the tape.
Refer to:
• Figure 248.
• Subject 20-10-11 for the procedure to assemble a lacing tape wire harness tie.

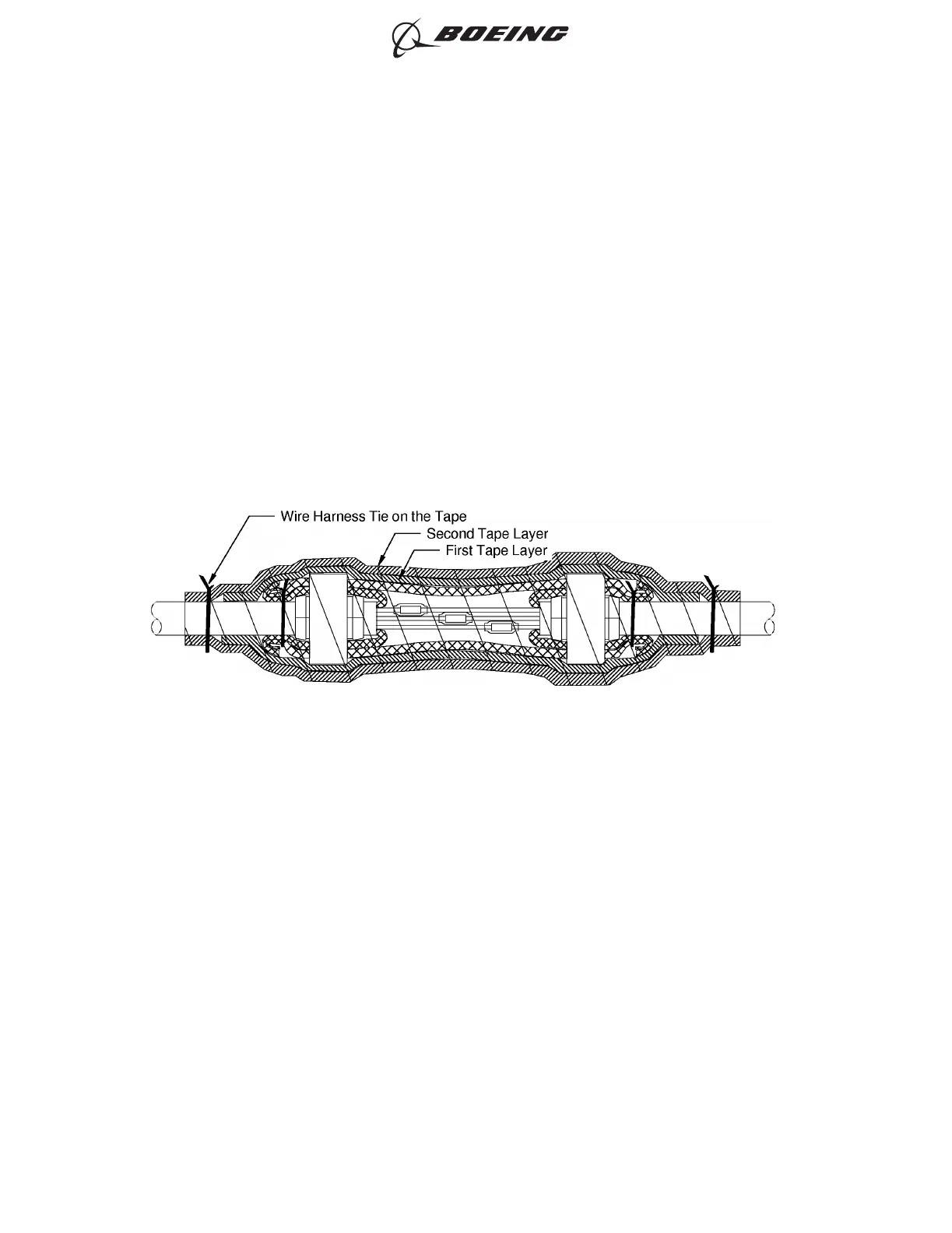

POSITION OF THE WIRE HARNESS TIES ON THE SPLICE ASSEMBLY
Figure 248
ASSEMBLY OF SPLICES
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-12
Page 280
Jun 15/2021D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
