2449701 S00061545408_V1

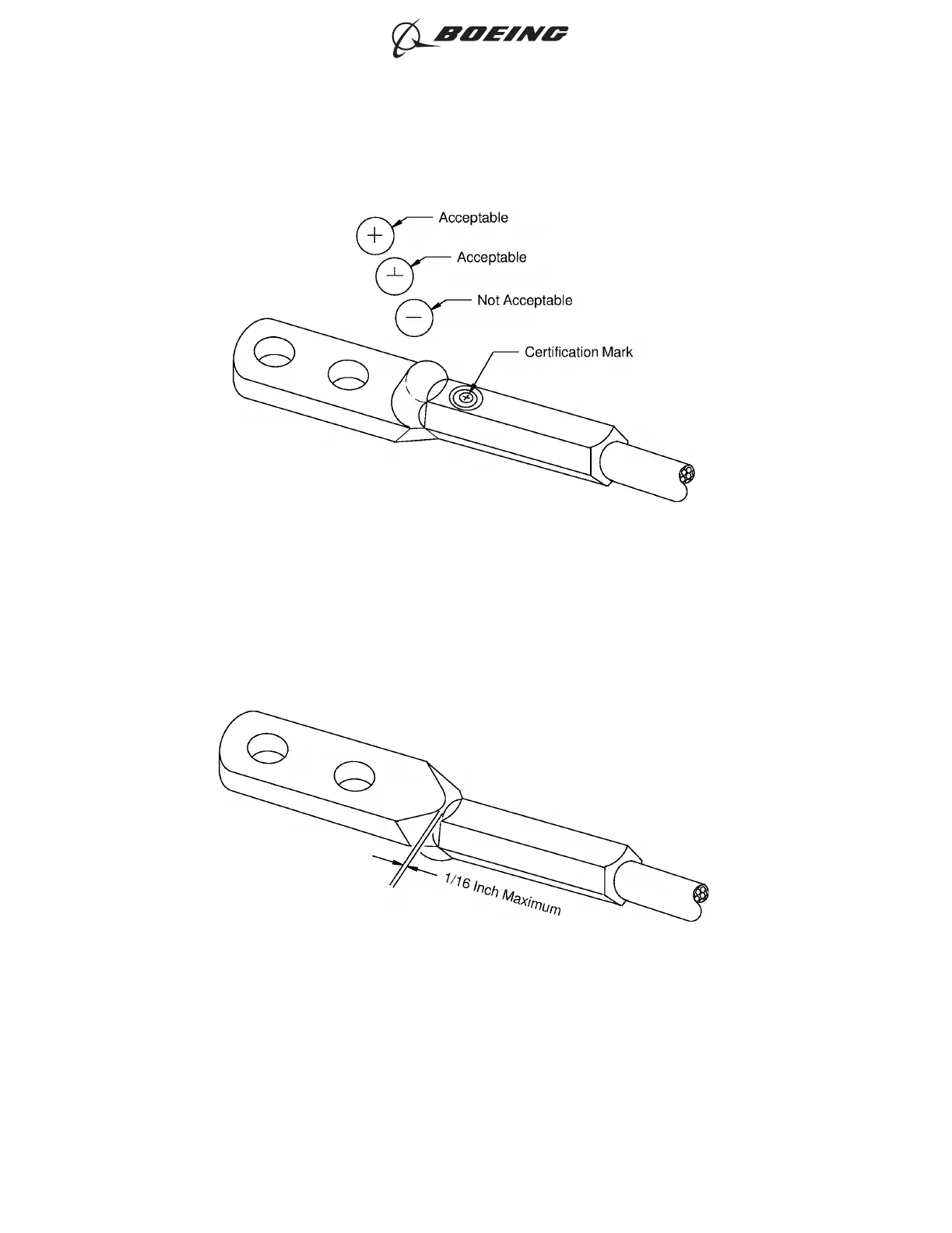

ACCEPTABLE AND UNACCEPTABLE CERTIFICATION MARKS ON THE CRIMP
Figure 9
2449702 S00061545409_V1
BOTTOM VIEW OF THE CRIMPED TERMINAL LUG
Figure 10
ASSEMBLY OF BACT12BC, BACT12BD, BACT12BE, BACT12BF AND BACT12BG ALUMINUM
TERMINALS
707, 727-787
STANDARD WIRING PRACTICES MANUAL
20-30-07
Page 9
Oct 15/2015D6-54446
ECCN 9E991 BOEING PROPRIETARY - See title page for details
